DALY BMS 16S 48V LiFePO4 250A Smart Protection Board with Bluetooth Wi-Fi For Sale

🔋 DALY Smart BMS 16S 48V 250A LiFePO4 – Bluetooth & Wi-Fi, CAN/RS485, Real-Time Battery Monitoring

The DALY Smart BMS 16S 48V 250A is a high-current Battery Management System designed for 16S LiFePO4 battery packs. With support for up to 250A discharge current, Bluetooth and Wi-Fi connectivity, CAN/RS485 communication and real-time battery monitoring, it provides comprehensive protection and management for high-power lithium battery applications.

• 🔋 16S LiFePO4 battery packs
• 🛺 Golf carts & electric vehicles
• 🚐 RV & mobile energy systems
• ⚡ Home energy storage
• 🏭 Industrial equipment
• 🚜 Low-speed electric vehicles
• 🔧 Custom battery builds
• 📡 Remote battery monitoring

• Brand: DALY
• Model: R24S
• Type: Smart Battery Management System
• Battery Chemistry: LiFePO4
• Configuration: 16S
• Nominal Battery Voltage: 48V
• Continuous Discharge Current: 250A
• Charge Current: Up to 250A
• Connectivity: Bluetooth & Wi-Fi
• Communication: CAN / RS485
• Monitoring: Real-Time Battery Data
• Balancing: Cell Voltage Balancing
• Dimensions: Approx. 7.2 × 4.25 × 1.02 in
• Application: EVs, Golf Carts, RVs, Energy Storage & Industrial Equipment

Designed for 16 cells connected in series, this DALY BMS is intended for 48V-class LiFePO4 battery systems. The system monitors individual cell voltages and battery operating conditions to help manage the battery pack safely.

With a rated 250A discharge current, this BMS is designed for demanding high-current applications where substantial power handling is required.

The included 2-in-1 Bluetooth/Wi-Fi communication module provides convenient access to battery information through the compatible DALY Smart BMS app. Bluetooth can be used for local monitoring, while Wi-Fi connectivity enables remote monitoring when connected to a suitable network.

The BMS includes a CAN/RS485 communication interface, making it suitable for integration with compatible controllers, displays and other battery-system equipment.

The DALY Smart BMS is designed to provide protection against conditions including:

• Excessive temperature

These protection functions help manage the operating conditions of the connected LiFePO4 battery pack.

Through the compatible monitoring system, users can view important battery information such as voltage, current, temperature, state of charge and alarm status.

The DALY Smart BMS 16S 48V 250A combines high-current capability with modern communication features in one battery management system. Bluetooth, Wi-Fi, CAN and RS485 connectivity make it a versatile choice for custom LiFePO4 battery packs and high-power applications.

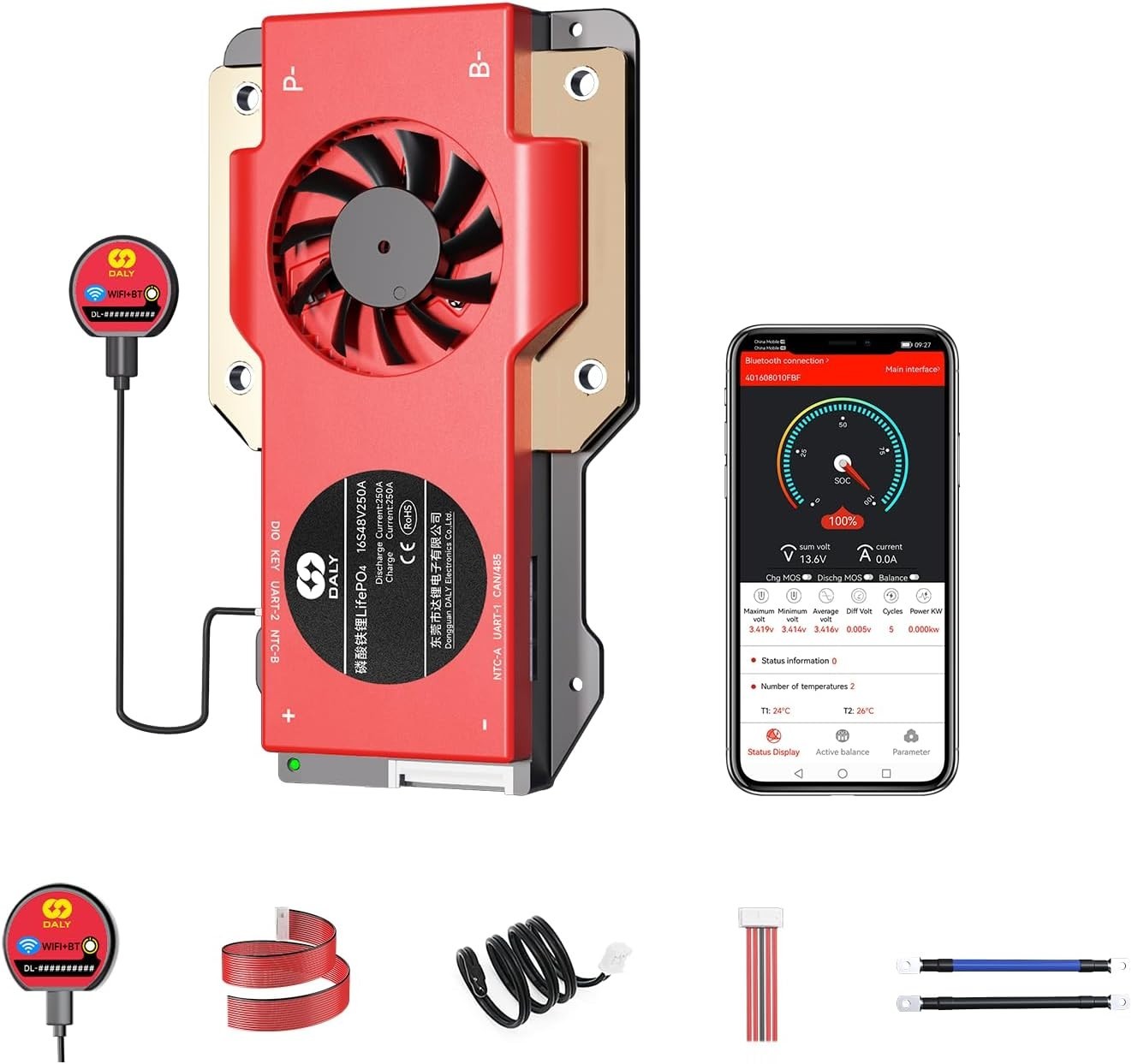

• 1 × DALY 16S 48V 250A Smart BMS
• 1 × B-P- Output Cable
• 1 × 2-in-1 Bluetooth / Wi-Fi Dongle
• 1 × Cell Sampling / Balance Cable
• 1 × NTC Temperature Sensor
• 1 × CAN/RS485 5-Pin Cable
• 1 × User Manual

The listed package contents are based on the product documentation.

⚠️ Please review all photos carefully for the exact accessories and components included with this listing.

Upgrade a compatible 16S LiFePO4 battery system with high-current battery management, cell monitoring and multiple communication options. The combination of 250A capability, Bluetooth, Wi-Fi, CAN and RS485 makes this BMS suitable for a wide range of demanding battery applications.

READ: Item has been inspected and tested when applicable / Normal signs of previous handling or storage may be present / You will receive the exact DALY Smart BMS and accessories shown in the photos / Please review all photos carefully for the exact condition and included components before purchasing.
