Description:
Bring a more professional sound to your mix

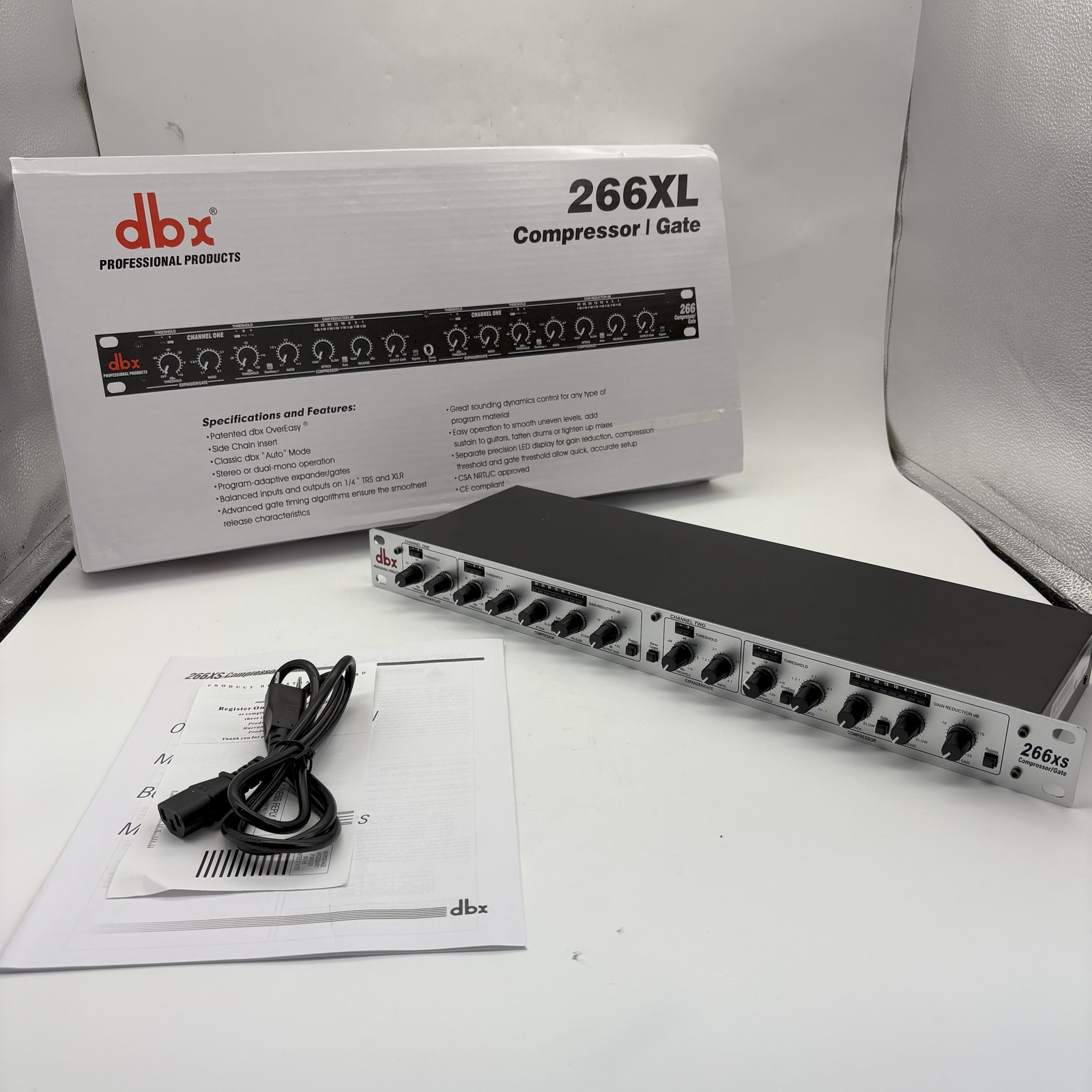

Adding a dbx® 266xs Compressor/Gate to your live sound rig or studio gives you more
dynamic control to help create a more polished, professional sound. Having compression in
your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and
fatten up your drums. It also makes it easy to bring vocals to the front of your mix - adding
greater clarity and making them stand out from the surrounding instruments.
dbx knows compressors...after all we invented them! The 266xs is the latest in a long line of the
world's most successful compressors from the inventors of the technology. Its patented
Overeasy® compression technology provides smooth and musical performance while the
AutoDynamic™ attack and release controls, found only on dbx compressors, puts great sound
within easy reach. The 266xs can operate in stereo or dual-mono modes, has true RMS power
summing and features quality XLR and 1/4" TRS inputs and outputs. It cuts no corners on
visual response with gain reduction metering and easy-to-read backlit switches.
Features:
Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten
up mixes
New gate timing algorithms ensure the smoothest release characteristics
Program-adaptive expander/gates
Great sounding dynamics control for any type of program material
Separate precision LED displays for gain reduction, compression threshold and gate threshold
allow quick, accurate setup
Stereo or dual-mono operation
Balanced inputs and outputs on 1/4" TRS and XLR connectors
Side Chain insert
Classic dbx® "Auto" mode
Specifications:
Input Connectors: 1/4" TRS and female XLR (pin 2 hot)
Input Type: Electronically balanced/unbalanced, RF filtered
Input Impedance: 40kO balanced/unbalanced
Max Input: >+22dBu Balanced or Unbalanced
Output Connectors: 1/4" TRS, female XLR (pin 2 hot)
Output Type: Impedance-balanced/unbalanced, RF filtered
Output Impedance: +4dBu: 100O balanced, 50O unbalanced; -10dBu: 1kO balanced, 500O
unbalanced
Max Output: >+21dBu balanced/unbalanced into 2kO or greater; >+18dBm
balanced/unbalanced (into 600O)
Sidechain: 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
Sidechain Impedance: Tip = >10kO (Input), Ring = 2kO (Output)
Sidechain Max Input Level: Tip = >+22dBu (Input)
Sidechain Max Output Level: Ring = >+20dBu (Output)
Compressor Threshold Range: -40dBu to +20dBu
Compressor Threshold Characteristic: Selectable OverEasy® or hard knee
Compressor Ratio: 1:1 to Infinity:1
Compressor Attack Time: Scalable Program-Dependent AutoDynamic™
Compressor Release Time: Scalable Program-Dependent AutoDynamic™
Expander/Gate Threshold Range: -60dBu to +15dBu
Expander/Gate Ratio: 1:1 to 4:1
Expander/Gate Attack Time: <100µs
Expander/Gate Release Time: Program-dependent
Bandwidth: 0.35Hz - 90kHz, +0/-3dB
Frequency Response: Flat: 20Hz-20kHz, +0, -0.5dB
Noise: <-93dBu unweighted (22kHz measurement bandwidth)
THD+Noise: Typically <0.2%; Any Amount of Compression @1kHz
IMD: Typically <0.2% SMPTE
Dynamic Range: >114 dB, unweighted
Interchannel Crosstalk: <-95dB, 20Hz to 20kHz
CMRR: >40dB, typically >55dB at 1kHz
Stereo Coupling: True RMS Power Summing™
Power Consumption: 15 Watts Maximum
Operating Voltage: 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Dimensions: 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
Unit Weight: 4.84 lbs (2.19 kg)
Shipping Weight: 6.6 lbs (2.99 kg)
Reference: 0dBu = 0.775Vrms
