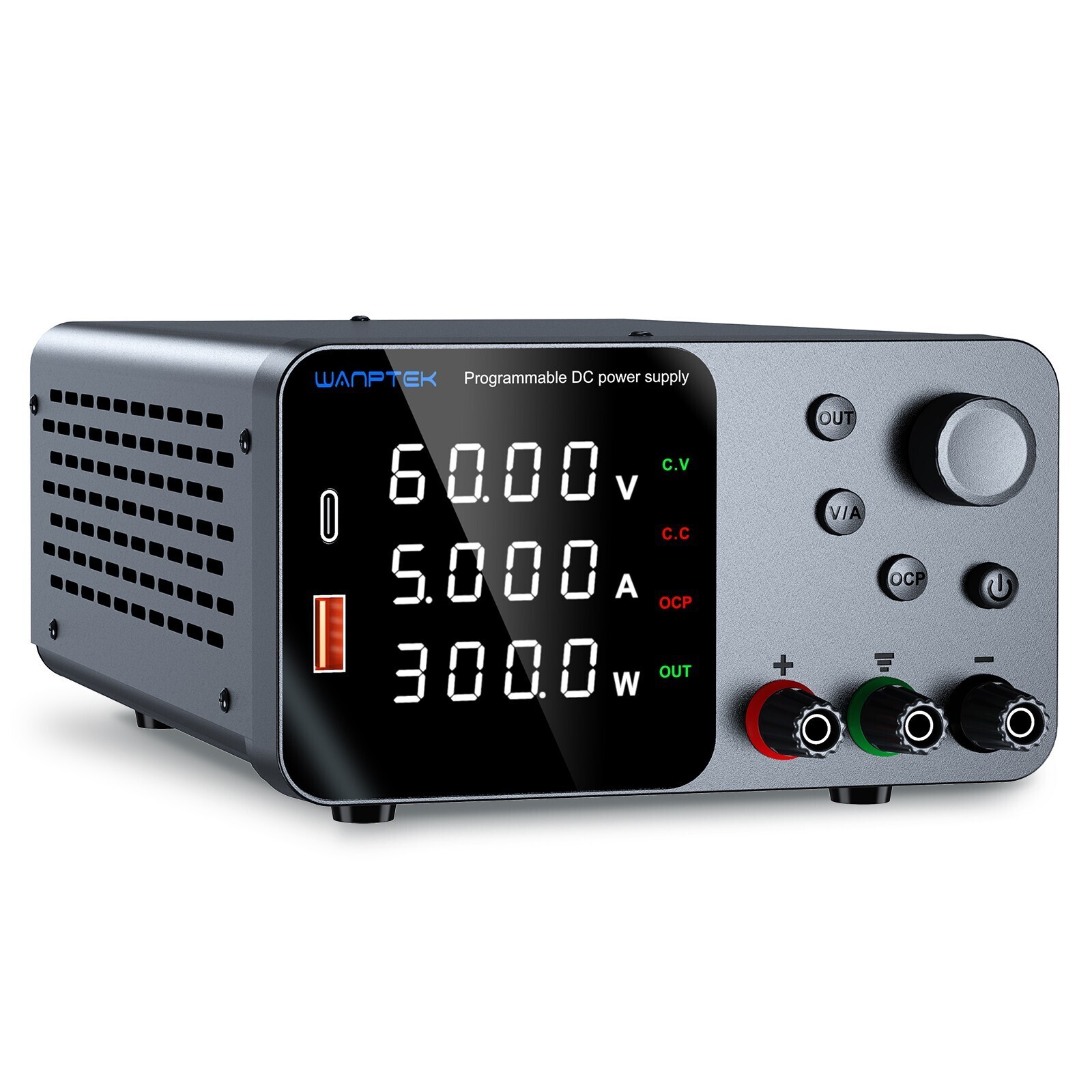

TPS series desktop DC stabilized power supply
Product Description
The TPS series products are high-precision DC stabilized power supplies with three windows and four digits display, which can simultaneously display voltage, current, and power. The product is widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use. The use of coding potentiometers allows for continuous adjustment of output voltage and current between 0 and nominal values, and pre-set values can be displayed for easy use and adjustment. This device has USB-A/Type-C fast charging function and supports multiple fast charging protocols. Equipped with perfect OVP and OCP short-circuit protection circuits, the stability and ripple coefficient of the power supply are very good. It has small size, light weight, beautiful design, convenient operation, and can work for a long time at full load, which is deeply loved by users.
Product Features
Switch between voltage and current options, adjust the value by encoding the potentiometer, and the set value can be displayed in advance.
OCP overload protection function, short circuit stop output, OUT output switch.
USB-A/Type-C fast charging function, supporting multiple fast charging protocols
Small size, light weight, and sufficient power.
Automatic switching of constant voltage and current.
Three sets of LED four digit displays for voltage, current, and power, with high accuracy.
Temperature controlled fan for heat dissipation, low noise, and long lifespan.
Application areas
1. Production line testing.
2. Repair mobile phones, computers, and appliances.
3. Product aging and electroplating.
4. Battery charging.
5. Laboratory, scientific research, and teaching.
6. All other occasions that require a DC stabilized power supply.
Product parameter table
Model
TPS305
TPS3010
TPS605
TPS1203
TPS1602
Output Power
150W
300W
300W
360W
320W
Output voltage
0~30V
0~30V
0~60V
0~120V
0~160V
Output current
0~5A
0~10A
0~5A
0~3A
0~2A
Auxiliary functions
USB-A/Type-C fast charging, supporting various fast charging protocols
Protection mode
Current limiting protection / short circuit alarm stop output, self recovery
Working environment
Input class="MsoNormal" style="vertical-align: middle;">Working temperature：0℃～40℃;relative humidity:<80%RH
Storage temperature：-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
Voltage stability：0.1%±3mV
Load stability：0.2%±3mV
Ripple voltage：≤0.5%Vp-p
0 to rated voltage continuously adjustable
Constant current CC
Current stability：0.1%±3mA
Load stability：0.2%±3mA
Ripple current：≤0.5%Vp-p
Recovery time：≤500μS
Temperature coefficient：≤100ppm/℃
0 to rated current continuously adjustable
Display
0.4inch white light four digit digital tube display
Display accuracy：0.5%±digits
Display resolution： voltage 0.01V，current 0.001A
Size and weight
Product size：210(L)x145(W)x80(H)mm
Packing size：300(L)x195(W)x135(H)mm
Net weight：1.2Kg
Gross weight：1.6Kg
9sets/piece, box size:590*315*405mm,box weight:15kg
Random attachment
power cordx1 (EU,US,UK, ...)
Instructionsx1,
Test linex1,
Machine color
Black、White
