Very Important:
It canONLYwork withDJI Matrice 4TandDJI Matrice 4E.
It canNOTwork withDJI Matrice 30T/30EorDJI Mavic 3T/3EorAny Other Models.

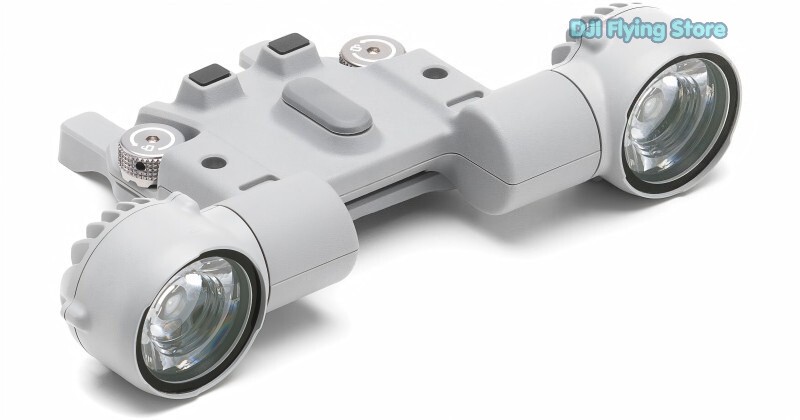

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. Additionally, it can intelligently link with the gimbal, following the camera\'s movements to ensure the illuminated area matches the camera\'s view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.
The spotlight supports two modes: always-on and strobe, providing clear illumination of subjects. It also links with the gimbal.
1. Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.
In The Box
Spotlight × 1
Spare Screw × 2
Hex Key × 1
Weight: 99 g (including bracket）
Approx. 91 g (excluding bracket)
95×164×30 mm (L×W×H, including bracket）
79×164×28 mm (L×W×H, without bracket)
Max Power: 32 W
Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters
Effective Illumination Angle: 23°(10% relative illuminance)
Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
2,200 square meters @ 100 meters (10% relative illuminance, Wide fov Mode)
Gimbal Mechanical Range (Tilt): -140° to 50°
Gimbal Controllable Range (Tilt): -90° to 35°
Max Control Speed (tilt): 120°/s
Gimbal Alignment Accuracy: ±0.1°
Operating Temperature: -4° to 122° F (-20° to 50° C)
Mounting Method: Quick-release hand-tightened screws
Support for use with DJI Matrice 4 Series aircraft.
