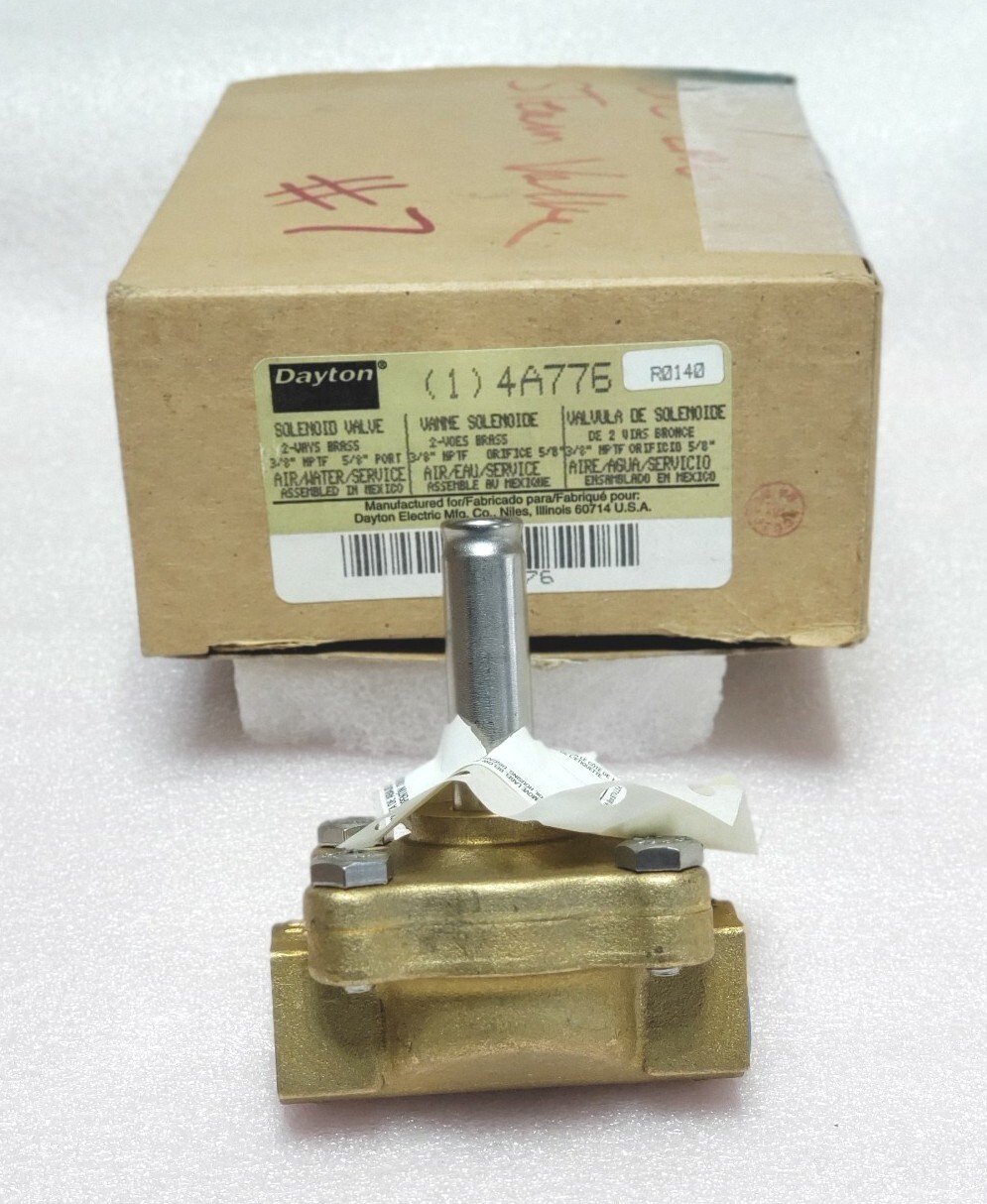

Offering a Dayton 4A776 Steam Solenoid Valve Body,3/8 in Pipe Size. New Unused in Original Manufacturer Packaging. See photos for more details on what is included in this listing and its Condition. (ADLSBea1)
Product Description:
For use with Class H insulation coils, available separately, these high-temperature gaskets can be used in hot water or steam applications. They can be mounted in any position. WARNING: Not for use in explosive atmospheres.
Manufacturer Part Number008607
Valve Ways and Positions2-Way
Valve ConfigurationNormally Closed
Pipe Size - Valves3/8 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas100 psi
Max. Operating Pressure Differential Light Oil100 psi
Max. Operating Pressure Differential Water100 psi
Environmental Rating - ValvesIndoor; Outdoor
Coefficient of Volume2.8
Body Material - ValvesBrass
Seal Material - ValvesEPM
Orifice Dia.5/8 in
Safe Working Water Pressure300 psi
Safe Working Steam Pressure15 psi
Operation TypeDirect Acting
Flow Range2.0 to 28 gpm
Steam Capacity129 lb/hr
Max. Fluid Temp.250 °F
Overall Length2-3/4 in
Overall Height3-1/2 in
For Use WithDayton Solenoid Coils
Country of OriginMexico
