Offered for sale is one Designplan Lighting QSR architectural recessed LED fixture, project designation F7, configured as:
This commercial-grade fixture is designed for demanding wet-location installations and is IP65 rated, IC rated, Chicago Plenum rated, and suitable for steam-room applications.
The fixture is configured with a 26W Xicato XIM LED module, 2700K color temperature, >80 CRI, 25° × 25° optic, fully recessed IC-rated body, polished-nickel finish, and clear polycarbonate lens.
This unit includes the pictured Advance by Signify Xitanium XI040C105V042CNJ1 remote LED driver, rated 40W, 1.05A, 120–277VAC input, 14–42VDC constant-current output, and 0–10V dimming.
Fixture specifications: 26W, 1050mA, 2700K, 25°×25° optic, polished nickel finish, clear lens, IP65 wet-location rating, IC-rated fully recessed construction, Chicago Plenum rating, Xicato XIM LED source, 20-gauge cold-rolled-steel housing, and die-cast-aluminum neck. Designplan rates the QSR for L70 greater than 50,000 hours and testing up to 60°C room ambient.

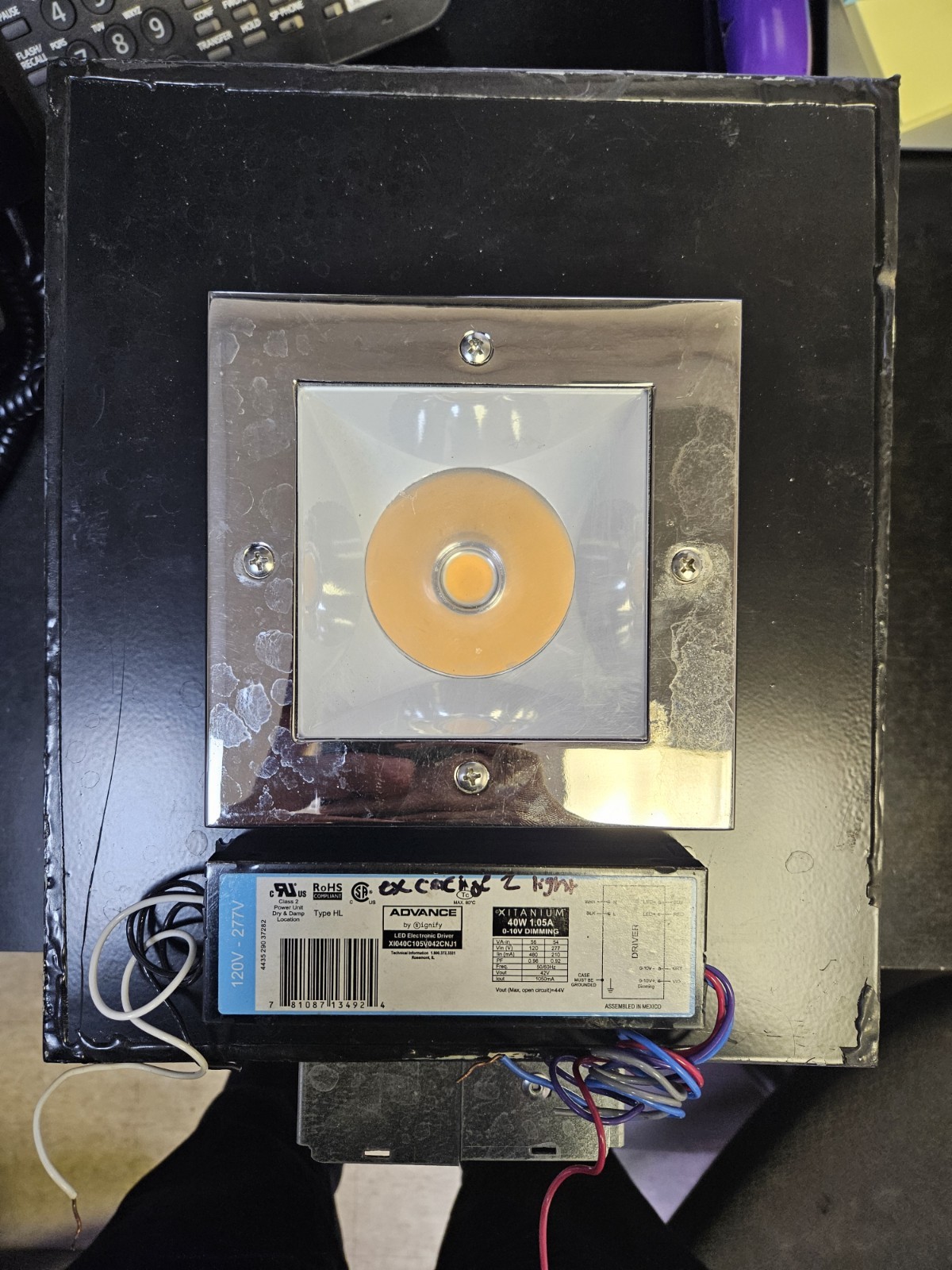

Included: Designplan QSR fixture/housing, LED module, polished-nickel trim and clear lens, Advance Xitanium 0–10V driver, wiring, and components shown in the photographs.
Additional dimming controls, installation wiring, junction-box accessories, mounting hardware not pictured, or control-system equipment are not included.
Professional installation is recommended. Buyer should verify voltage, dimming-control compatibility, ceiling construction, and local electrical-code requirements before installation.
