Description

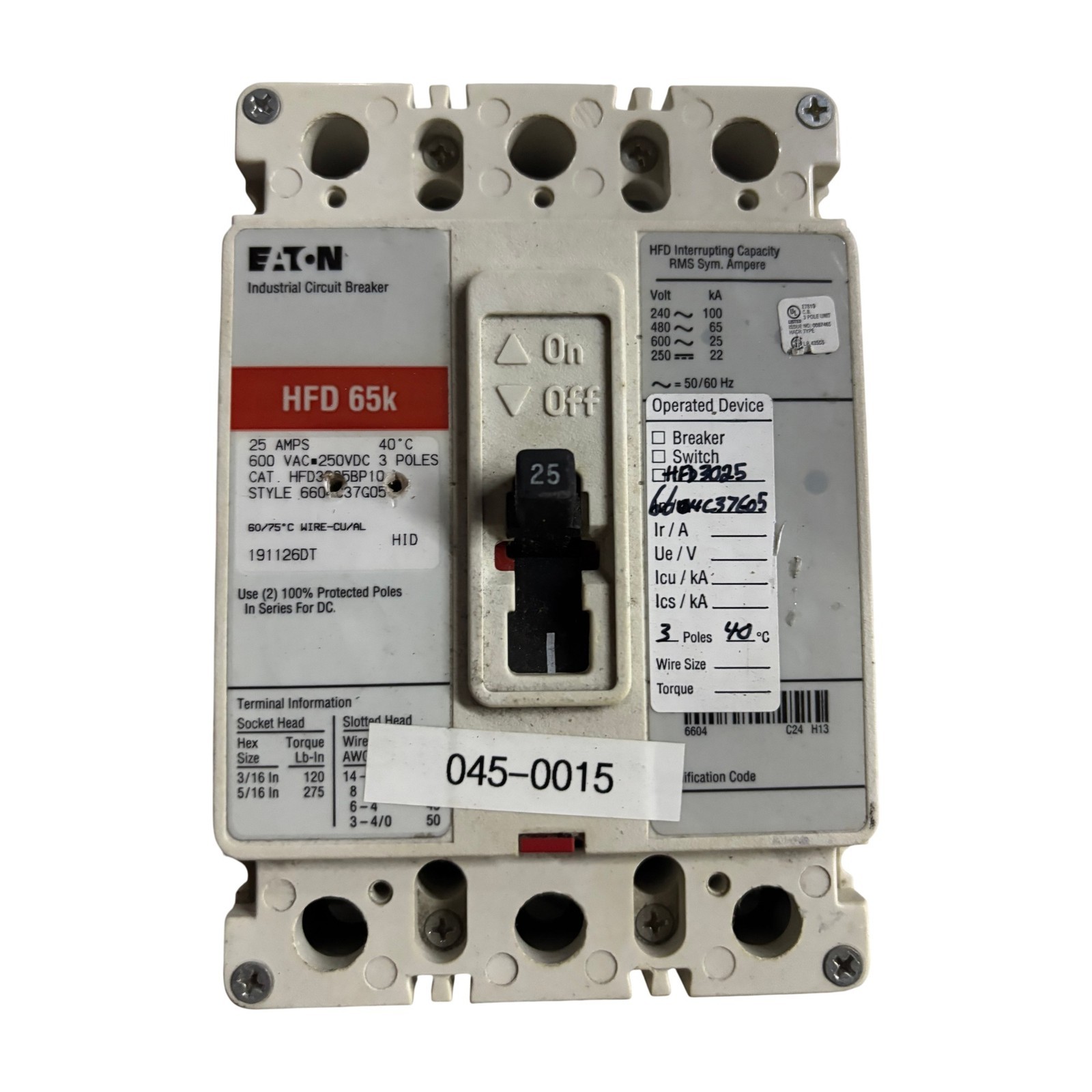

This is a used Eaton HFD3025BP10 Industrial Circuit Breaker from the HFD 65k series. Rated at 25 Amps, 600 VAC / 250 VDC, 3 Poles, this molded case breaker delivers reliable overcurrent protection for industrial applications. It features high interrupting capacity of 100kA at 240V, 65kA at 480V, and 25kA at 600V.
Features & NumberHFD3025BP10Product TypeMolded Case Industrial Circuit BreakerSeriesHFD 65kAmperage25ANumber of Poles3Voltage Rating (AC)600 VACVoltage Rating (DC)250 VDCInterrupting Capacity at 240V100 kAInterrupting Capacity at 480V65 kAInterrupting Capacity at 600V25 kAFrequency50/60 HzTemperature Rating40 degrees CWire TypeCu/Al (Copper/Aluminum)Wire Size Range14 AWG - 4/0 AWGStyle660-C37G05Catalog NumberHFD3025BP10ColorGray/WhiteWhat's Included
- 1x Eaton HFD3025BP10 3-Pole 25A 600V Industrial Circuit with Eaton HFD-series molded case circuit breaker panels and industrial distribution equipment rated for 600V 3-phase applications. Accepts copper or aluminum conductors sized 14 AWG through 4/0 AWG. Suitable for use in systems requiring 65kA interrupting capacity at 480V.
