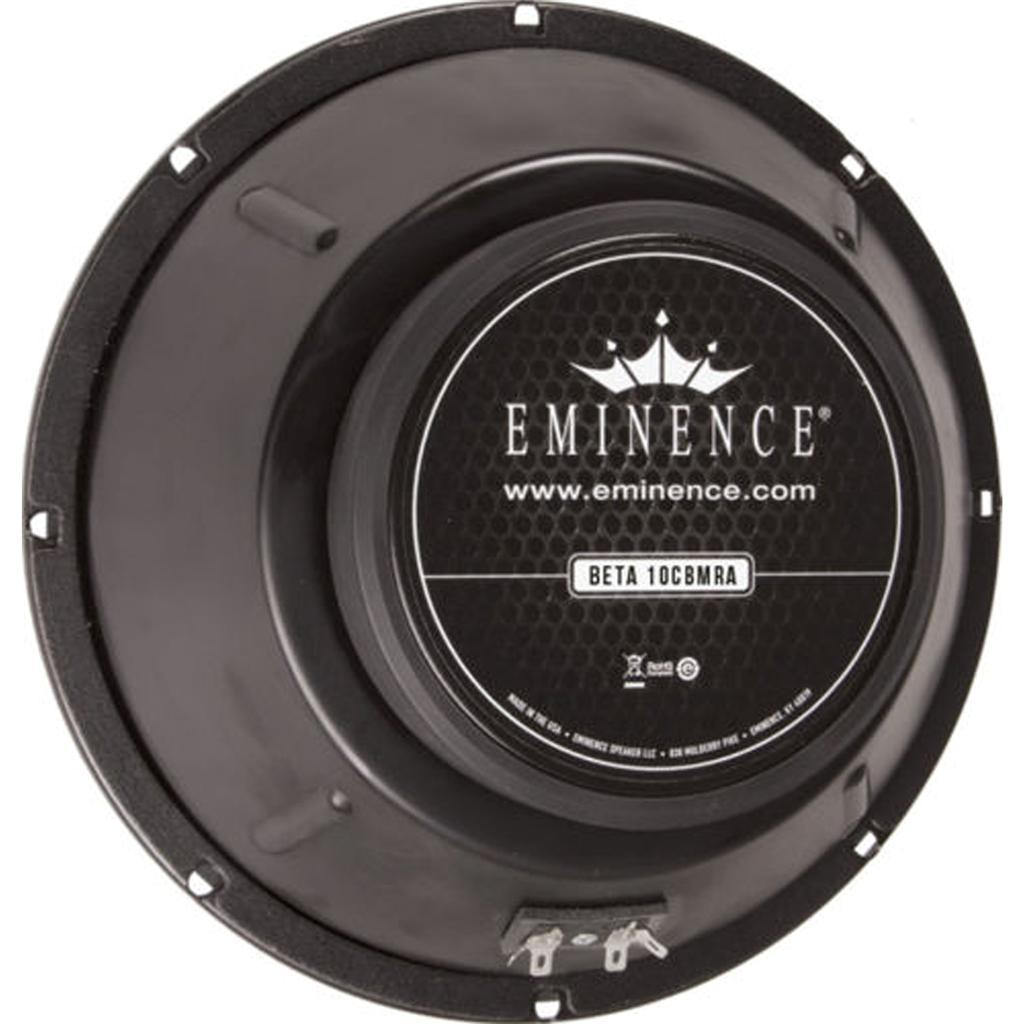

Eminence Sealed Back 10\" 8 Ohm 200 Watt RMS Midrange Speaker- Beta-10CBMRA For Sale

Sku: BETA10CBMRA

Condition: New

Description:

Specifications:* Nominal Basket Diameter: 10\", 254 mm
* Nominal Impedance*: 8 O
* Power Rating**
* Watts: 200 W
* Music Program: 400 W
* Resonance: 326 Hz
* Usable Frequency Range: 300 Hz - 4 kHz
* Sensitivity***: 99.6 dB
* Magnet Weight: 34 oz.
* Gap Height: 0.313\", 8 mm
* Voice Coil Diameter: 2\", 51 mmThiele & Small Parameters* Resonant Frequency (fs): 326 Hz
* DC Resistance (Re): 5.68 O
* Coil Inductance (Le): 0.48m H
* Mechanical Q (Qms): 7.14
* Electromagnetic Q (Qes): 2.27
* Total Q (Qts): 1.73
* Compliance Equivalent Volume (Vas): 1.7 liters / 0.06 cu.ft.
* Peak Diaphragm Displacement Volume (Vd): 52.5 cc
* Mechanical Compliance of Suspension (Cms): 0.01 mm/N
* BL Product (BL): 9.5 T-M
* Diaphragm Mass Inc. Airload (MMs): 18 grams
* Efficiency Bandwidth Product (EBP): 143
* Maximum Linear Excursion (Xmax): 1.5 mm
* Surface Area of Cone (Sd): 350.1 cm2
* Maximum Mechanical Limit (Xlim): 3. mmMounting Information
Recommended Enclosure Volume* Sealed: N/a
* Vented: - liters / - cu.ft.
* Driver Volume Displaced: 0.039 cu.ft. / 1.1 liters
* Overall Diameter: 10.09\", 256.3 mm
* Baffle Hole Diameter: 9.18\", 233.2 mm
* Front Sealing Gasket: Yes
* Rear Sealing Gasket: Yes
* Mounting Holes Diameter: 0.25\", 6.4mm
* Mounting Holes B.C.D.: 9.66\", 245.4mm
* Depth: 3.56\", 90.4 mm
* Net Weight: 7.3 lbs, 3.31 kg
* Shipping Weight: 8.3 lbs, 3.76 kgsMaterials of Construction* Coil Construction: Aluminum voice coil
* Coil Former: Polyimide former
* Magnet Composition: Ferrite magnet
* Core Details: Non-Vented core
* Basket Materials: Pressed steel basket
* Cone Composition: Paper cone
* Cone Edge Composition: Cloth cone edge
* Dust Cap Composition: Solid composition paper dust cap
