BMW-Specific Integration – supports selected original controls and vehicle Check Your BMW Before OrderingThe E90X7S is designed for compatible:
- BMW E90 Sedan / Saloon: 2005–2011
- BMW E91 Touring / Sports Wagon: 2005–2013
- BMW E92 Coupé / Coupe: 2006–2013
- BMW E93 Convertible: 2007–2013
- BMW M3 E90 / E92 / E93: 2007–2012
Not Compatible with Factory iDrive + LCD Screen
If your BMW has the factory iDrive system together with an original LCD display on top of the dashboard, the E90X7S is not compatible.
Please compare your original dashboard with the compatibility images before ordering.
Check Your Factory Radio Connector
After confirming that your dashboard is suitable, please check the original radio power connector behind the centre console.
If the factory plug has 8 speaker wires
If your original radio connector has the 8 speaker wires shown in the listing image, the E90X7S can connect using the supplied vehicle wiring for a compatible installation.
If the factory plug does not have 8 speaker wires
If those 8 speaker wires are not present, your vehicle requires the optional Eonon A0581 decoder box for installation.
A0581 is not included unless specifically stated in your selected package.
This check is especially important on BMWs with different factory amplifier or audio configurations.
⚠️ Additional BMW Installation Notes
Vehicles with Factory Optical Fibre
If your original BMW radio system uses an optical fibre connection, the instrument cluster may display an SOS warning/message after the factory radio is removed.
According to the supported installation configuration, this warning does not affect operation of the E90X7S itself.
Please check your original audio system before installation.
Factory Button Relocation
On some BMW configurations, original vehicle buttons are located in the panel below the factory radio.
If you want to retain these original buttons after installing the E90X7S, an ashtray button relocation kit is required.
The relocation kit is not included.
Climate Control Panel Installation
After removing the factory radio, the original air-conditioning control panel can be repositioned below the E90X7S using the supplied mounting bracket.
Keep Supported BMW Factory Features
The vehicle-specific interface is designed to retain selected original BMW functions on compatible configurations.
Supported functions include:
- Steering wheel controls*
- Compatible Harman Kardon audio system
- Parking sensor information
- Heated seat functions
- Door-open reminder
- CANBUS vehicle integration
*The original voice recognition button is not supported.
Factory equipment varies between BMW models and trim levels, so retained functions depend on the original vehicle configuration.
Android 14 + Qualcomm Performance
Powered by the Qualcomm QCM6225-AD 6nm platform, the E90X7S provides the performance needed for navigation, music and compatible Android apps.
- 8-Core CPU: 4×A73 up to 2.8GHz + 4×A53 up to 1.9GHz
- Adreno 610 GPU
- 6GB RAM + 64GB storage
- 1-second fast boot supported
- OTA firmware updates
- Split-screen multitasking
Run compatible functions such as navigation and music side by side without constantly switching between screens.
Wireless Apple CarPlay & Android Auto
Connect your compatible smartphone and access frequently used functions directly from the 9" display.
Use compatible:
- Navigation
- Music
- Calls
- Messages
- Siri
- Google Assistant
Both wired and wireless Apple CarPlay and Android Auto are supported, giving you the choice between cable-free convenience and a wired connection.
Note: Full phone screen mirroring is not supported.
9" QLED HD Touchscreen
The 9-inch QLED display gives maps, media and everyday controls significantly more viewing space than a conventional factory radio interface.
- 1280×720 HD resolution
- Anti-glare design
- 178° wide viewing angle
- Capacitive touchscreen
Its vehicle-specific installation integrates the larger display into compatible BMW E90/E91/E92/E93 dashboards.
48-Band DSP + DTS Audio Control
Fine-tune your BMW's sound around your speakers, cabin and listening preferences.
Audio features include:
- Built-in DSP
- 48-band EQ
- DTS audio processing
- Time alignment
- HPF / LPF adjustment
- Subwoofer control
- 30W RMS manufacturer-rated power
- Up to 4×50W amplifier output
- 4.0V preamp output
For upgraded sound systems, the E90X7S also provides 4 RCA outputs plus optical and coaxial digital outputs, giving you more flexibility when connecting compatible aftermarket amplifiers or subwoofers.
Compatible with Supported Harman Kardon Systems
The E90X7S supports compatible BMW Harman Kardon audio systems.
BMW factory audio configurations can differ between vehicles. If your original radio connector does not have the required 8 speaker wires, an A0581 decoder box may be required as described in the compatibility section above.
Please check your factory audio configuration before ordering.
Built-In GPS Navigation
Use the built-in GPS receiver with compatible offline navigation maps, or connect to the internet for supported services such as Google Maps and Waze.
Offline navigation can continue to provide route guidance without continuous mobile data, while an internet connection enables supported online traffic and connected services.
4G LTE + Wi-Fi 6
Insert a compatible SIM card to give the stereo its own mobile data connection for supported online navigation, streaming and Android apps.
Connectivity includes:
- Built-in 4G LTE
- 2.4GHz / 5GHz Wi-Fi
- Wi-Fi 6 ready
- Bluetooth 5.1 with external antenna
- Split-screen multitasking
A SIM card is not required for Apple CarPlay, Android Auto, Bluetooth, AM/FM radio or GPS reception.
4G network compatibility depends on the regional version, carrier and supported LTE bands.
Camera, Radio & Media Support
Connect a compatible reversing camera for additional visibility while parking or reversing.
Supported features include:
- Reversing camera input
- Automatic reverse display
- Parking guidelines
- AM/FM radio with RDS
- 3 USB inputs
- USB media playback
- Up to 1080P video decoding
Common audio formats including MP3, WMA, WAV, AAC, FLAC and APE are supported.
Optional Eonon Accessories
A100 Dash Camera
Add compatible front driving recording.
A0125 / A0127 Camera
Add compatible parking or reversing-camera functionality.
V0056 Bluetooth OBD2 Scanner
View supported vehicle diagnostic information through compatible Android apps.
A0593 / A503 / DX2 / DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.
A304 DSP Digital Amplifier
Add further amplification and tuning for compatible upgraded audio systems.
A0581 Decoder Box
Required on compatible BMW configurations where the original radio connector does not have the 8 speaker wires shown in the listing image.
Optional accessories are sold separately unless specifically included with your selected package.
Frequently Asked Questions
Will the E90X7S fit my BMW E90 / E91 / E92 / E93?
It is designed for compatible models within the listed years, but dashboard and factory audio configurations vary. Please compare your original dashboard and radio connector with the compatibility images before ordering.
My BMW has factory iDrive and an LCD screen. Will it fit?
No. The E90X7S is not compatible with BMW vehicles equipped with the factory iDrive system and original dashboard LCD screen.
How do I know whether I need the A0581 decoder?
Check the factory radio connector. If it has the 8 speaker wires shown in the listing image, the A0581 is not required for this reason. If those 8 speaker wires are missing, the A0581 decoder box is required.
Is Harman Kardon supported?
Compatible Harman Kardon systems are supported. Installation requirements depend on the original BMW audio configuration.
Are steering wheel controls retained?
Compatible factory steering wheel controls are supported, except for the original voice recognition button.
What happens if my BMW uses an optical fibre connection?
After replacing the factory radio, an SOS message may appear on the instrument cluster on affected configurations. This does not affect operation of the E90X7S itself.
Does it support Wireless CarPlay and Android Auto?
Yes. Both wired and wireless Apple CarPlay and Android Auto are supported.
Can GPS work without internet?
Yes. The built-in GPS supports compatible offline navigation maps. Internet access is required for online traffic and other connected services.
Do I need a SIM card?
Only if you want to use the stereo's built-in 4G LTE mobile data connection. CarPlay, Android Auto, Bluetooth, radio and GPS reception do not require a SIM card.
Can I connect an aftermarket amplifier or subwoofer?
Yes. RCA, subwoofer, optical and coaxial outputs are available for compatible aftermarket audio Your BMW 3 Series

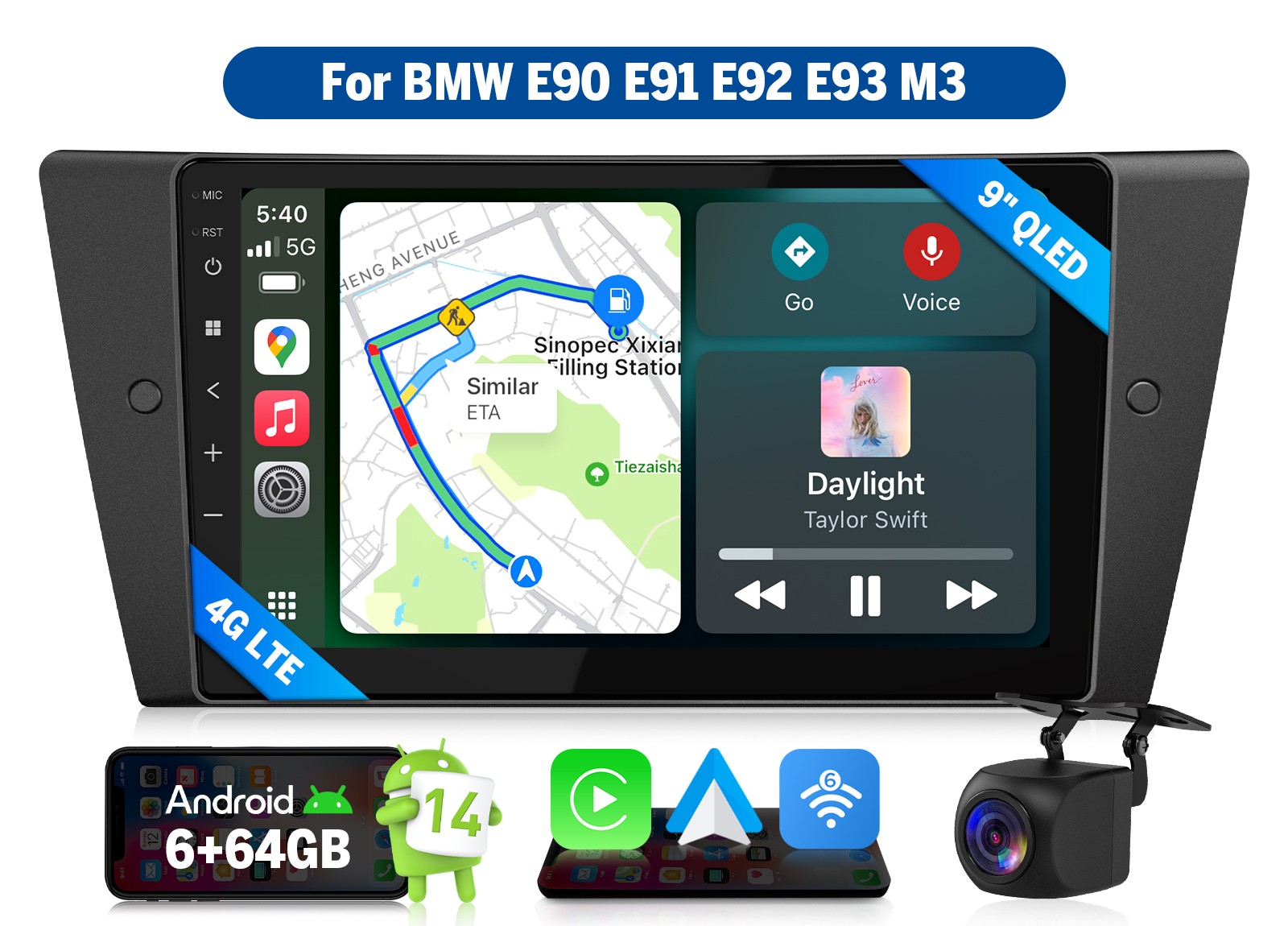

The Eonon E90X7S BMW Android car stereo combines Android 14, Qualcomm 6nm performance, Wireless Apple CarPlay and Android Auto, GPS navigation, built-in 4G LTE, Wi-Fi 6 and advanced DSP audio in a vehicle-specific 9" QLED system.
For compatible BMW E90, E91, E92 and E93 models, it provides a practical way to upgrade navigation, entertainment, smartphone connectivity and sound control while retaining supported BMW functions.
Before purchasing, confirm that your BMW does not have factory iDrive + LCD, and check the original radio connector and audio configuration against the compatibility images.
⭐ Vehicle Compatibility
Applicable Models & Years:
E90 4-door Sedan/Saloon (from 2005 to 2011)
E92 2-door Coupé/Coupe (from 2006 to 2013)
E93 2-door Convertible (from 2007 to 2013)
E91 5-door Wagon/Estate (marketed as 'Touring' in Europe and 'Sports Wagon' in the North America) (from 2005 to 2013)
E90 M3 Sedan/E92 M3 Coupe/E93 M3 Convertible (from 2007 to 2012)
Cars Type:316d, 316i, 318d, 318i, 320d, 320d xDrive, 320i, 320i xDrive, 320si, 323Ci, 323i, 325Ci, 325d, 325i, 325i xDrive, 325xi, 328Ci, 328i, 328i xDrive, 328xi, 330Ci, 330d, 330d xDrive, 330i, 330i xDrive, 330xd, 330xi, 335d, 335i, 335i xDrive, 335is, 335xi, M3, M3 CRT, M3 GTS
Year:2005 2006 2007 2008 2009 2010 2011 2012
