Feuling Vented Oil Dipstick Black #3092 Harley Davidson For Sale

Feuling Vented Oil Dipstick Black #3092 Harley Davidson Product Details

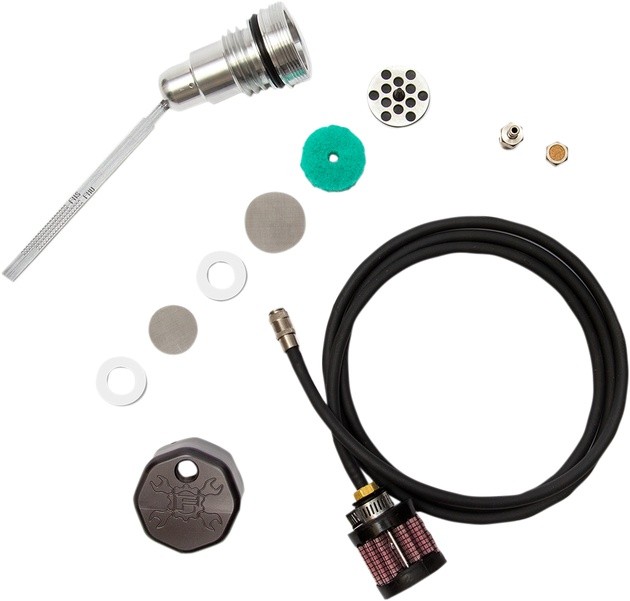

• Billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PVC style breather consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve
• Screws into the factory oil fill spout as a stock replacement part
• These breathing dipsticks remove unwanted build-up of blow by pressure, all internal combustion engines have a certain amount of blow by
• Larger cubic inch, worn and or loose ring clearance as well as engines pushed to their limits generally have increased blow by
• Blow by is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced back into the oil tank
• Dipsticks help remove this unwanted pressure through a (CVS) Crankcase Ventilation System
• Feuling test results show a decrease in engine oil sump levels, more freely/smoother revving engine, increased MPG and decreased blow-by
• Dipsticks vent/breath excessive crank case pressure from the oil tank through a breather system consisting of a oil separator system, perforated disc, replaceable filter element and umbrella flapper valve
• Includes two venting styles options to choose from when installing the dipstick
• Option 1: 1/8" NPT breather vent fitting with internal porous filter element (this option gives a clean look, however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by)
• Option 2: Quick-disconnect coupler fitting with rubber hose and filter element (this option will run any excessive oil misting/residue through the line and into the filter element, however this option does requires disconnecting the fitting in order to check the oil
• Option 2 is Feuling's preferred option as it breathes more than Option 1
• For Option 2, Feuling recommends routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail
• Checking oil level: There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU)
• FHS = FULL HOT STAND: if reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand)
• FHU = FULL HOT UPRIGHT: when reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright)
• Available in polished or fade-resistant black
• Made in the USA

Fit GuideModelVented Oil DipstickColorBlackCountry of OriginUSAMaterialAluminumQuantityEach Product Fitment

This item fits the following applications:

Harley Davidson FLHR Electra Glide Road King 2007-2016Harley Davidson FLHR Road King 2007-2016Harley Davidson FLHRC Road King Classic 2007-2013Harley Davidson FLHRS Road King Custom 2007Harley Davidson FLHT Electra Glide 2007-2009Harley Davidson FLHT Electra Glide Standard 2007-2009Harley Davidson FLHTC Electra Glide Classic 2007-2013Harley Davidson FLHTCU Electra Glide Ultra Classic 2007-2016Harley Davidson FLHTCU Ultra Classic Electra Glide 2007-2016Harley Davidson FLHTCUL Electra Glide Ultra Classic Low 2015-2016Harley Davidson FLHTCUTG Tri Glide Ultra Classic 2009-2016Harley Davidson FLHTK Electra Glide Ultra Limited 2010-2016Harley Davidson FLHTKL Electra Glide Ultra Limited Low 2015-2016Harley Davidson FLHX Street Glide 2007-2016Harley Davidson FLHXS Street Glide Special 2014-2016Harley Davidson FLHXXX Street Glide Trike 2010-2011Harley Davidson FLRT Freewheeler 2015-2016Harley Davidson FLTR Road Glide 2007-2009Harley Davidson FLTRU Road Glide Ultra 2011-2013, 2016Harley Davidson FLTRX Road Glide 2007-2009Harley Davidson FLTRX Road Glide 2015-2016Harley Davidson FLTRX Road Glide Custom 2010-2013Harley Davidson FLTRXS Road Glide Special 2015-2016 Shipping
