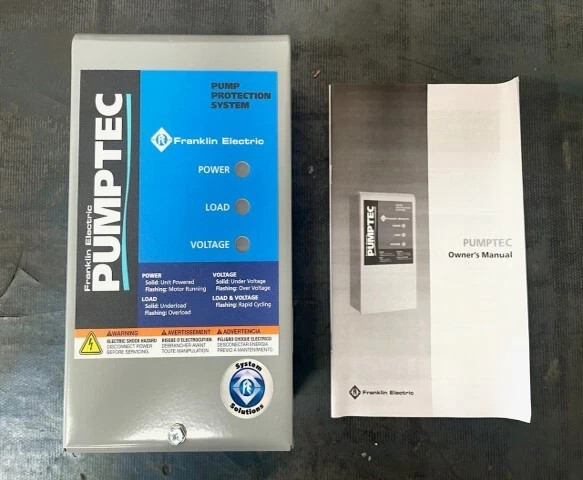

Franklin Electric 5800020610 Pumptec Motor Protection Device 115/230v 1 Phase 1/3-1.5 HP ***GENUINE FACTORY NEW***
For 2- & 3- wire single-phase motors, 115/230V, 1/3 to 1.5 HP. Pumptec is a microcomputer-based pump protection device. The water well pump protection switch monitors motor load and power line conditions to provide protection against drywell conditions, waterlogged tanks, and abnormal line voltage conditions. This Pumptec well pump protection device interrupts power to the motor whenever the load drops quickly or below a preset level. Indicator lights on the cover provide complete system status.
Remote Communication Pumptec also features an option for remote communication. With software available from Franklin Electric, a Pocket PC or Palm OS device with an infrared port can be used to remotely monitor and adjust Pumptec settings. Access to a 15-event fault history makes diagnosis of system problems quick and easy.
Franklin Electric Pumptec Single Phase Protection Device Features
- Easily Adjustable Sensitivity Settings
- Run and Fault Indicator Lights
- Heavy Duty Relay
- Alarm Circuit Contacts
- UL/CSA Listed
- Manufacturer Part Number: 5800020610
- Frequency: 50 Hz; 60 Hz
- Horsepower (Maximum): 1/2 hp
- Nameplate Voltage: 115/230V AC
- Operating Temperature (Maximum): 130 °F
- Operating Temperature (Minimum): -15 °F
- Overall Depth: 4.8 in
- Overall Height: 8.4 in
- Overall Width: 2.8 in
- Overvoltage Trip: 125/240V AC
- Phase: Single
- Standards: cUL/UL Listed
- Undervoltage Trip: 105/220V AC
- Brand: FRANKLIN ELECTRIC
- Size (WxDxH): 2.8 in x 4.8 in x 8.4 in:
- UNSPSC: 26101602
