QMF40 Fully Enclosed CNC Sliding table(40mm width )Module material: Industrial Aluminum ProfileStroke:100MM-300MM (Choose according to your needs)Horizontal load: 40KG (Max)Vertical load: 20KG(Max)Motor bracket:57mm Stepper motorModule width: 42mmRepeat positioning accuracy: 0.03mm-0.05mmGuide:1XMGN12R(12MM width )Block:1X MGN12CBall screw material：Bearing SteelBallscrew type: SFU1605(Tips:SFU1605 means:Screw Diameter 16mm, Pitch 5mm,The screw rotates Once, the slide table moves 5mm)Ball screw accuracy: C7Max.moving speed: 250mm/s

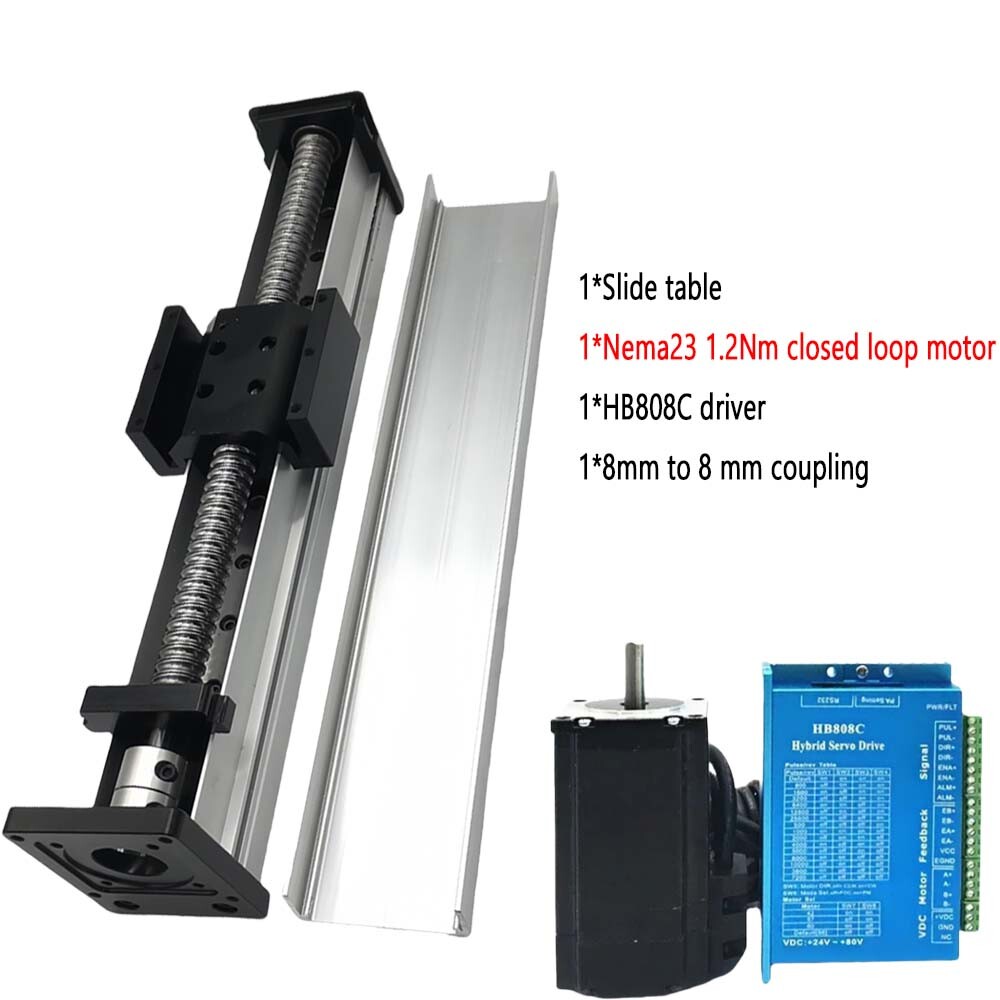

Linear Actuator Slide Table Sealed Nema23 motor Kit Ball Screw for PCB Drilling
✅Fully Enclosed Design– Protects the rail and ball screw from dust and debris, ensuringlong-lasting performance.
✅ High Load Capacity– Supports up to40KG horizontally & 20KG vertically, perfect for heavy-duty applications.
✅Precision Ball Screw (SFU1605)–C7 accuracy with 5mm pitchfor smooth, backlash-free movement.
✅Industrial Aluminum Profile– Durable, lightweight construction withMGN12 linearguidefor stability.
✅Wide Stroke Options– Choose from100mm to 300mm traveldistance to fit your project needs.
QMF40 Fully Enclosed CNC Sliding table(40mm width )
Module material:Industrial Aluminum Profile
Stroke:100MM-300MM (Choose according to your needs)
Horizontal load: 40KG (Max)
Vertical load: 20KG(Max)
Motor bracket:57mmStepper motor
Module width:42mm
Repeat positioning accuracy: 0.03mm-0.05mm
Guide:1XMGN12R(12MM width )
Block:1X MGN12C
Ball screw material：Bearing Steel
Ballscrew type: SFU1605
(Tips:SFU1605 means:Screw Diameter 16mm, Pitch 5mm,The screw rotates Once, the slide table moves 5mm)
Ball screw accuracy: C7
Max.moving speed: 250mm/s
