G-U Cremona 50/92 Active Shootbolt 3-Point Lock Silver

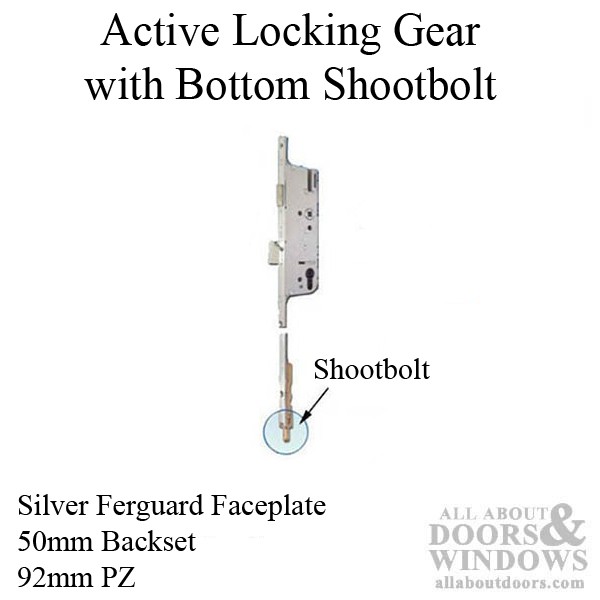

G-U Cremona 50/92 active shootbolt for 3-point door locking. Includes bottom shootbolt only; top shootbolt sold separately. Manual version engages multipoint when door handle is lifted. Commonly used on Pella doors. Silver faceplate finish. Overall length 75" 2 inch (50mm)

Handle to cylinder spacing: 3-5/8 inch (92mm)

Faceplate width: 5/8 inch (16mm)

Faceplate finish: Silver

Handle height: 35 inches (889mm)

Spindle size: 8mm square

Cylinder: US-cylinder system with 90 degree turn of key or thumbturn

Handle position: Key below handle (Europa)

Function: Shootbolt locks vertically at top and bottom of door panel

Key Features:

• 3-point, height adjustable locking system
• Shoot bolts top and bottom, deadbolt and latch
• Extensions available for taller doors
• Lever controlled engaging and releasing of shoot bolts, deadbolt and latch
• Non-handed, latch easily reversible
• Heavy duty mortise construction with reinforced lever return spring system

Notes:
Does not include top shootbolt or screws. To purchase as a kit with top shootbolt and screws included, see 4990330-KIT.
Gearbox markings: 9-39432-21 50/92 G24056.
In some cases, when replacing old lock to new lock, modifications to strike plate holes must be made to accept new latch and deadbolt.
To identify a multipoint door lock: Check for manufacturer's stamp on the lock strip. Measure the width of the lock strip. Measure the backset. Measure the center points. Note locking types on the strip. Note color of the lock.
