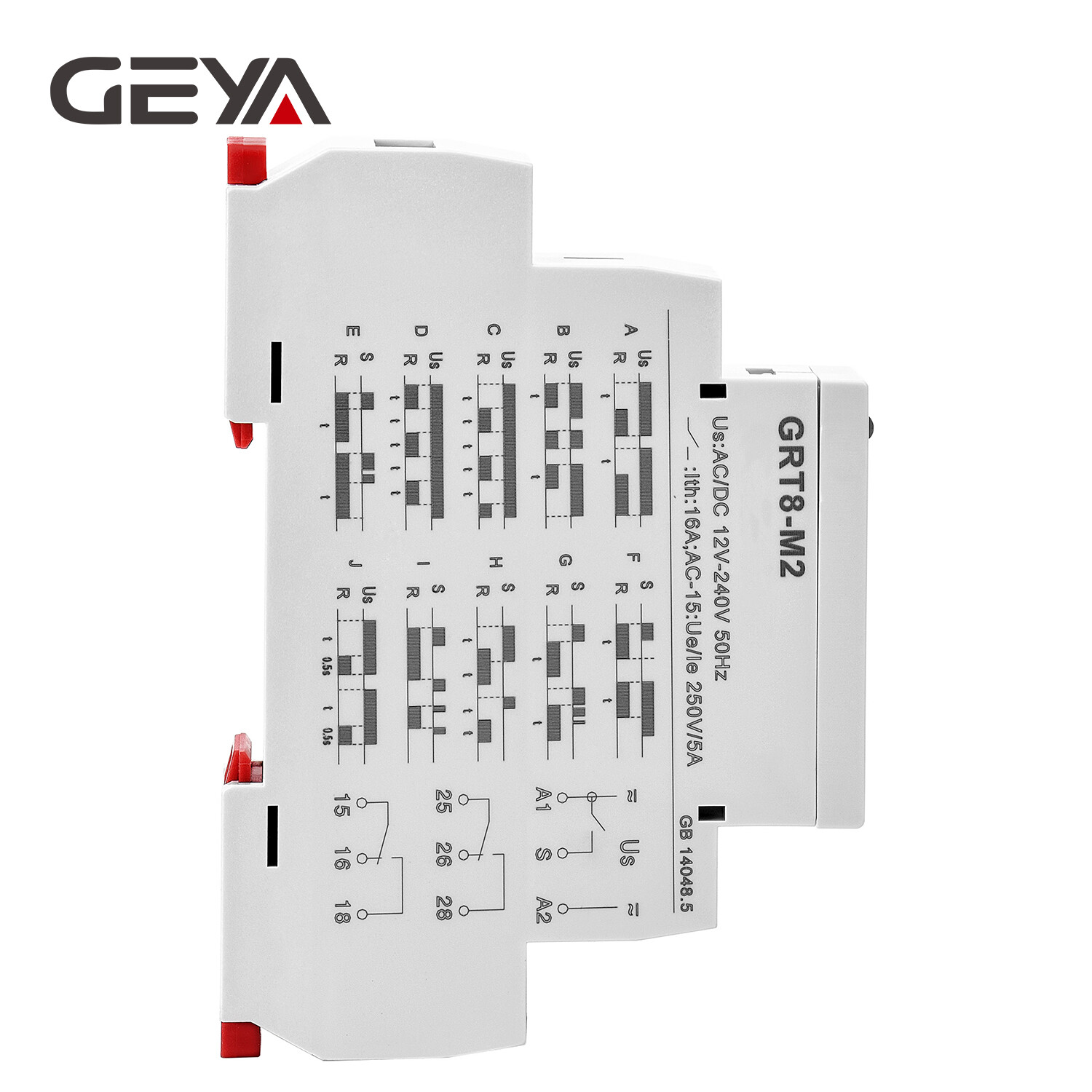

Store Categories Store Categories GEYA GRT8-M Multifunction Time Relay
Product Description
Function Features
10 functions:
- 5 time functions controlled by supply voltage
- 4 time functions controlled by control input
- 1 function of latching relay
Time scale: 0.1 s - 10 days
LED indicator Relay: GREEN light for power indication
RED light for working status
Wide supply voltage range: AC/DC 12-240V(50Hz)
Packing List
1PCS GRT8-M time relay & manual
If you buy more than 2 PCS,We will send you 1 PCS of rail and 1 PCS ofscrewdriver as gift!
How to choose model
Number of contacts Rated supply voltage GRT8-M1-AC230V 1*SPDT AC230V GRT8-M1-AC/DC12-240V 1*SPDT AC/DC12-240V GRT8-M2-AC230V 2*SPDT AC230V GRT8-M2-AC/DC12-240V 2*SPDT AC/DC12-240V
Technical parameters
GRT8-M1 GRT8-M2 Voltage Range AC/DC 12-240V(50-60Hz) Burden AC 0.09-3VA / DC 0.05-1.7W Voltage range AC 230V(50-60Hz) Power input AC max.6VA/1.3W AC max.6VA/1.9W Supply voltage tolerance -15%;+10% Temperature coefficient 0.05%/℃,at=20℃ (0.05%℉,at=68℉ ) Output 1×SPDT 2x SPDT Current Rating 1 x 16A(AC1) 2x 16A(AC1) Switching voltage 250VAC/24VDC Min.breaking capacity DC 500mW Mechanical life 10000000 Electrical life(AC1) 100000 Reset time max.200ms Operating temperature -20℃ to 55℃(-4℉ to 131℉) Mounting Din rail 35mm Max.cable size(mmx2) solid wire max.1x2.5 or 2x1.5/with sleeve max.1x2.5(AWG 12) Weight/pcs
1xSPDT:W240-62g,A230-60g
2xSPDT:W240-82g,A230-81g
Certifications CE CB
Model Function Link US GRT8-EC Delay ON AND OFF Time Relay https://www..com/itm/397202046786 GRT8-A/B Delay ON OR OFF Time Relay https://www..com/itm/396843705326 GRT8-X Multi Function Time Relay with 20 Function https://www..com/itm/394954593691 GRT8-P Pulse output relay https://www..com/itm/394954763537 GRT8-M Multi Function Time Relay with 10 Function GRT8-S Asymmertic Cycler Relay https://www..com/itm/396843734179 GRT8-RL Right-Left(inverser) time relay https://www..com/itm/394954776054 GRT8-WS Wifi Timer Relay https://www..com/itm/397380734635 GRT8-2T Double Delay ON Time Relay https://www..com/itm/397289533479 GRT8-D Delay off without supply voltage https://www..com/itm/394954895506 GRT8-LS Staircase Switch https://www..com/itm/394954739252 GRT8-ST Delay on Star Delta https://www..com/itm/394954968986 GRT8-FR Motor Forward & Reverse Control Time Relay https://www..com/itm/395052112649 GRT8-LT Emergency Light Tester Relay https://www..com/itm/396619115678 HT Install items
