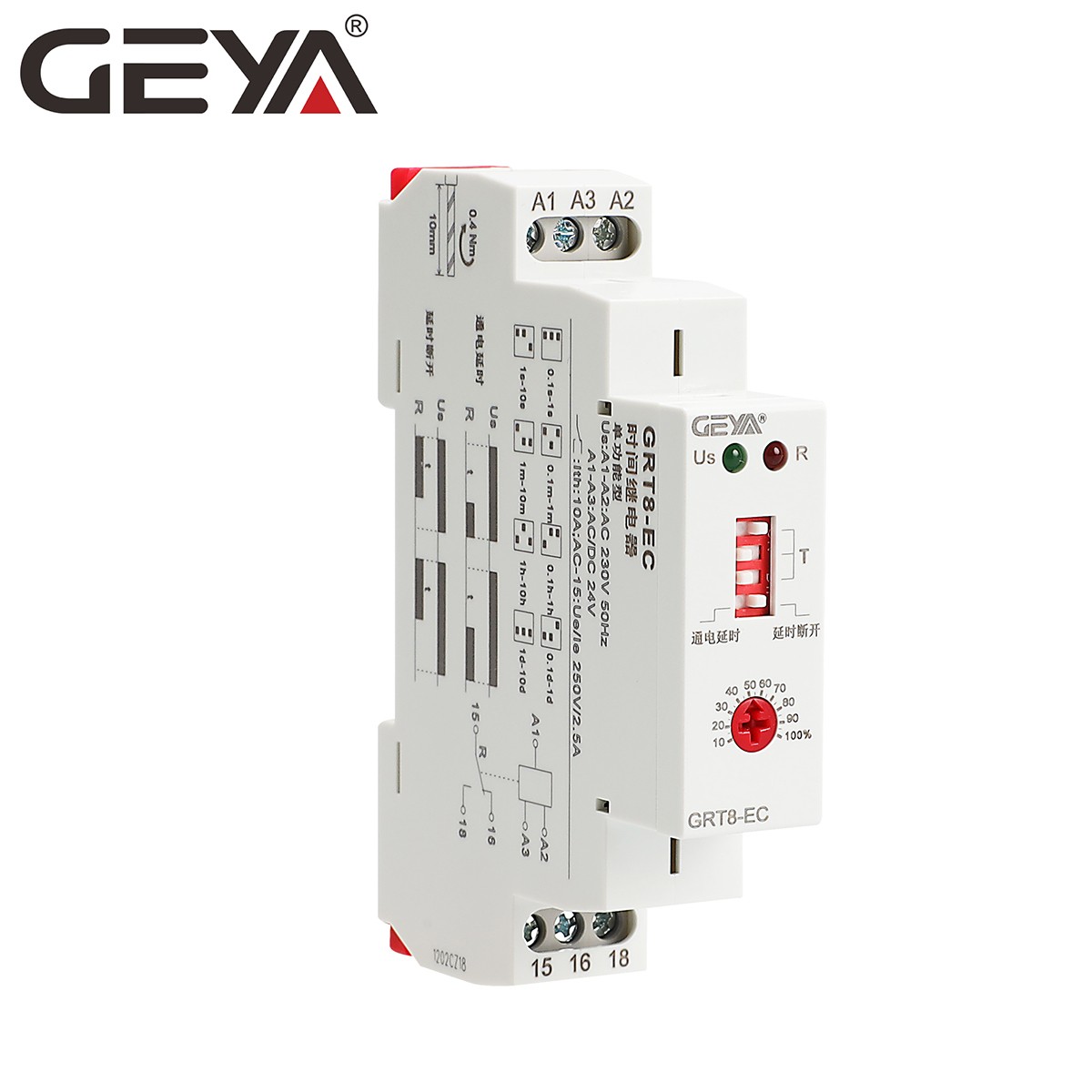

Store Categories Store Categories GEYA GRT8-EC Dual-function Time Relay
Product Description
-Two delay modes can be set.
-Supports AC230V,AC/DC 24V two kinds of working voltage.
-Ultra wide delayrange,0.1 seconds-10 days can be set...
-The working state of the relay is indicated by the LED indicator.
-Ultra small size,only 18mm width,35mm rail installation.
GRT8-EC Function ON delay, Delay off Supply terminals A1-A2(AC230V),A1-A3(AC/DC24V) Voltage range AC 230V(50-60Hz),AC/DC 24V Power input AC max.6VA/1.3W Supply voltage tolerance -15%；+10% Supply indication green LED Time ranges 0.1s-10day Time setting potentionmeter Time deviation ≤10% Repeat accuracy 0.2%-set value stability Temperature coefficient 0.05%/℃,at=20℃(0.05%℉,at=68℉) Out put 1XSPDT Current rating 1X10A(AC1) Switching voltage 250VAC/24VDC Min.breaking capacity DC 500mW Output indication red LED Mechanical life 10000000 Electrical life(AC1) 100000 Reset time max.200ms Operating temperature -20℃ to +55℃(-4℉ to 131℉) Storage temperature -35℃ to +75℃(-22℉ to 158℉) Mounting/DIN rail Din rail EN/IEC 60715 Protection degree IP40 for front panel/IP20 terminals Operating position any Overvoltage cathegory Ⅲ Pollution degree 2 Max.cable size(mm²) solid wire max.1X2.5 or 2X1.5/with sleeve max.1X2.5(AWG 12) Dimensions 90X18X64mm Weight 52g Standards EN 61812-1,IEC60947-5-1
package
1 pcs of relay &manual
If you buy more than 2 PCS,We will send you 1 PCS of rail and 1 PCS ofscrewdriver as gift!
Model Function Link US GRT8-EC Delay ON AND OFF Time Relay https://www..com/itm/115295460753 GRT8-A/B Delay ON OR OFF Time Relay https://www..com/itm/114339753292 GRT8-X Multi Function Time Relay with 20 Function https://www..com/itm/115586381485 GRT8-P Pulse output relay https://www..com/itm/115295464903 GRT8-M Multi Function Time Relay with 10 Function GRT8-S Asymmertic Cycler Relay https://www..com/itm/116669755737 GRT8-RL Right-Left(inverser) time relay https://www..com/itm/115295461178 GRT8-WS Wifi Timer Relay https://www..com/itm/116901942292 GRT8-2T Double Delay ON Time Relay https://www..com/itm/113129943565 GRT8-D Delay off without supply voltage https://www..com/itm/113068219243 GRT8-LS Staircase Switch https://www..com/itm/115295465200 GRT8-ST Delay on Star Delta https://www..com/itm/113158593339 GRT8-FR Motor Forward & Reverse Control Time Relay https://www..com/itm/116003927713 GRT8-LT Emergency Light Tester Relay https://www..com/itm/116606313172 HT Install items
