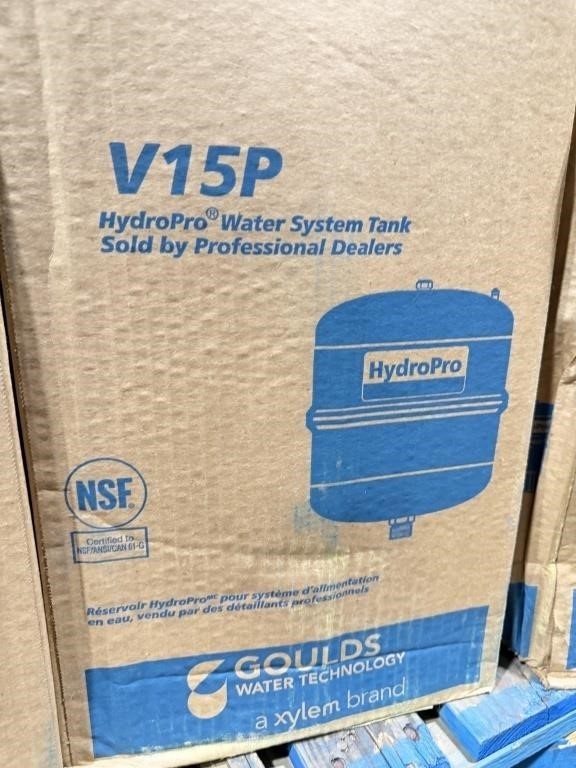

GOULDS V15P 4.5 GALLON PRESSURE TANK HydroPro Water Systems Tank For Sale

The Goulds V15P In-Line Model HydroPro® Water System Diaphragm Tank boasts a deep drawn steel shell for maximum strength and is NSF Certified. Utilized in homes, cottages and on farms all across the USA. The diaphragm was recently improved to reduce abrasive wear and increase longevity. Designed and manufactured by Goulds Water Technology, a trusted name in the industry for quality and reliability. Please contact a member of our sales or service team for assistance in selecting the correct water system tank for your specific needs!

Specifications:

Tank Capacity: 4.9 Gallons

Shell: Deep Drawn Steel

Diaphragm: Heavy Duty Parabolic

Max Draw Down Volume in Gallons: 3.1 - See Performance Chart

System Connection: 3/4" NPTM

Pre-Charge PSI: 38

Diameter: 11"

Height: 14-3/4"

Maximum Temperature: 120° F

Indoor Tank

Color: Blue

Features:

• Horizontal Models: Feature a universal jet pump bracket and two (2) bolt-on, corrosion-resistant, high density polypropylene feet for installations with limited headspace, such as under mobile homes.
• Deep Drawn Steel Shells: Provide maximum material strength.
• Inner Shell: Prevents diaphragm from over-expanding.
• Heavy Duty Parabolic Diaphragm: this new diaphragm design has improved diaphragm life by reducing abrasive wear. The diaphragm separates air and water to maintain the tank’s air charge. The Butyl rubber diaphragm is an FDA approved material and also meets NSF / ANSI 61 – G standards.
• Interior Tank Lining:
  • Stand models and V45P feature durable polypropylene liner. Meets FDA requirements.
  • Mounted pump models and V6P, V15P, V25P, V25H, and V100S feature fusion bonded polymeric lining. Meets FDA requirements.
• NSF® Certified to NSF/ANSI 61-G
• Maximum Working Pressure: 125 psi (except mounted pump models, 100 psi).
• Temperature Rating: Maximum 120° F
• Stainless Steel System Connection: On all Stand, InLine, Buried and Horizontal models. Excludes the V6P, V15P and V25P, which are powder coated.
• Appliance Appearance Exterior Finish: Blue color, high durability exterior finish of tough, powder coat over a zinc phosphate surface treatment. Tanks are designed for installation indoors or where they are protected from rain, irrigation overspray, salt air and other corrosive environ-ments. Always protect tanks from freezing.
• Heavy Duty Base: Made of high density polypropylene on stand models only.
• Pre-charge: All tanks charged to 38 PSI.


Applications:

• Home
• Cottage
• Farm
