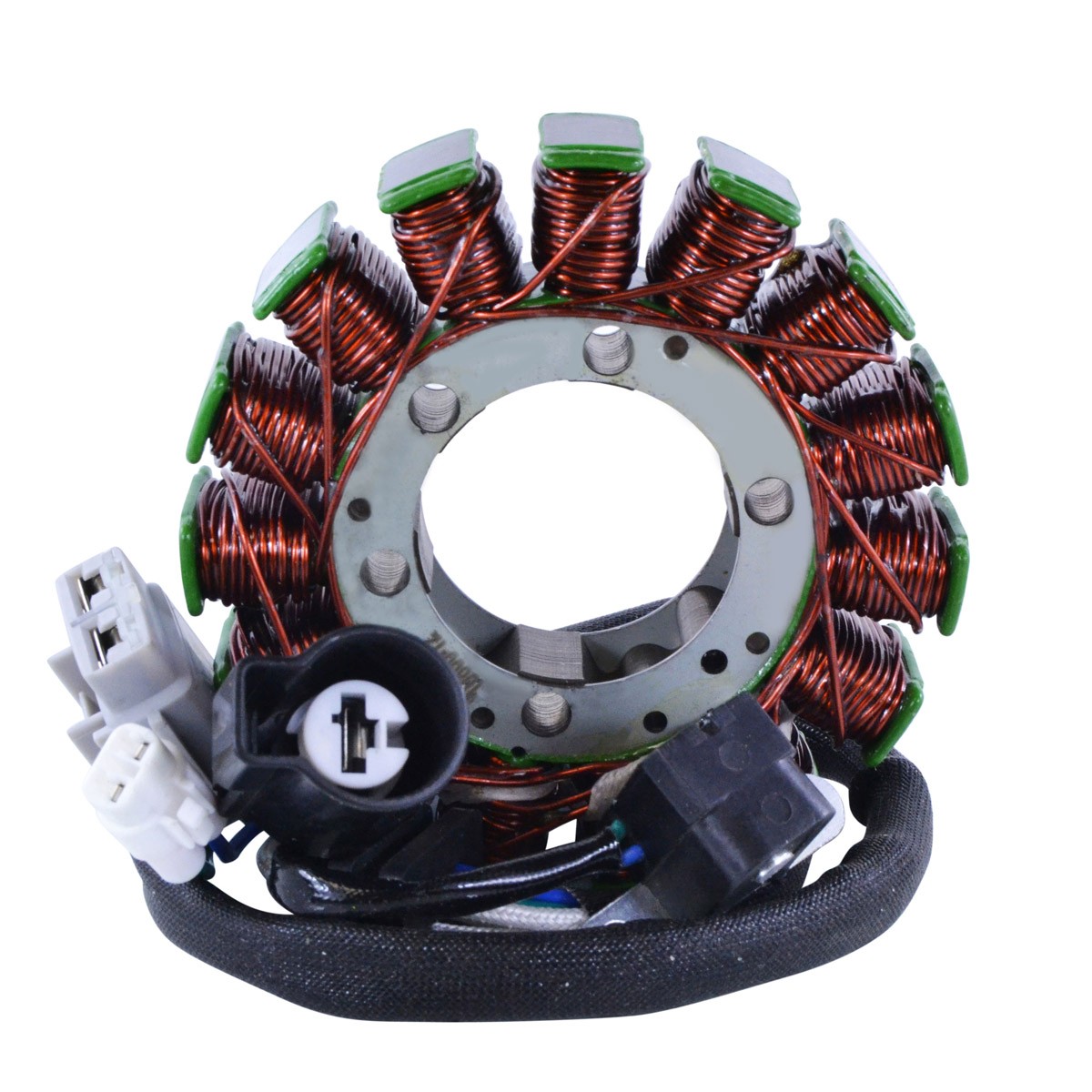

Generator Stator for Kawasaki KRF 800 Teryx | KRT 750 800 2012-2023 | OEM# 21003-0166 KEY FEATURES
SUBZERO TECHNOLOGY: RMSTATOR exclusive stator core architecture & aeronautic-grade components maximize electromagnetic flow which reduce significantly the heat generated by the stator. Our stator run cooler than OEM equivalent for increase longevity.
PRO-FIT SYSTEM: Includes everything required to perform a RMSTATOR-style professional installation: Exact OEM fit, rubber grommet, pickup pulser coil, part connectors & dielectric connector grease.
S3T PRO SYNERGISTIC MANUFACTURING PROCESS: Our stator aren't built from thin air. RMSTATOR unique stator manufacturing process includes OEM specifications mapping, prototypes vigorous testing & 7-step production-ready parts testing on the only stator testing equipment in North America.
PEACECON 2 WARRANTY: We trust our products so much that we are backing them with a stress-free 2-year warranty. Go ride and have fun, RMSTATOR got your back.
VALIDATE FITMENT BEFORE PURCHASE: Check product details to confirm your vehicle fitment. Our images show actual item.
DESCRIPTION
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Brand new aftermarket Generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Vehicle models fitment
Kawasaki KRF 800 Teryx -- 2014-2023
Kawasaki KRT 750 Teryx 4 -- 2012-2013
Kawasaki KRT 800 Teryx 4 -- 2014-2023
OEM part :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.6 ohms +-20%
Pickup : Green to Blue = 500 ohms installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulatorrectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
