For your consideration:

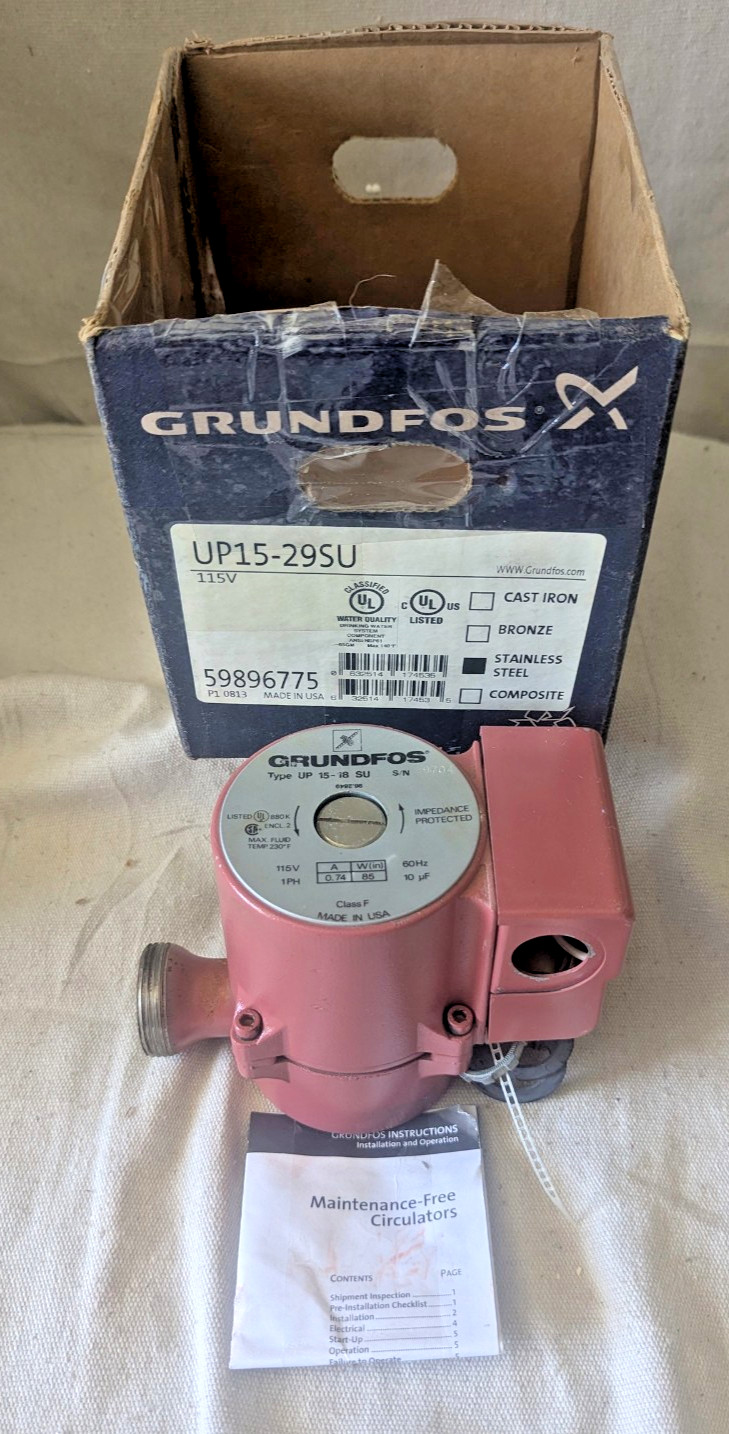

Grundfos Hot Water Circulation Pump UP15-29SU Stainless Steel
Non-submersible
Removed from working system, tested after removal.
With original box and instruction sheet.
Please see pictures for exact condition and feel free to ask any questions you may have.
Cheers!From the manufacturer:
Product name UP 15-29 SU/LC Product No 59896776 EAN number 5700837414470 Technical Speed no: 1
Rated flow 2.35 m³/h
Max. flow 4.7 m³/h
Rated head 1.622 m
Maximum head 3 m
Approvals UL, CSA Materials Pump housing Stainless steel EN 1.4308 AISI 304 Impeller Composite PES+30% GF Installation Maximum ambient temperature 40 °C Amb. max at 80 dgr C liquid 80 °C Maximum operating pressure 10 bar Type of connection 1 1/4" NPSM S.S. Union Pipe connection 1 1/4" NPSM Pressure rating for connection PN 10 Port-to-port length 150 mm Terminal box position 9H Liquid Pumped liquid Water Liquid temperature range 2 .. 95 °C Selected liquid temperature 20 °C Density 998.2 kg/m³ Electrical data Max. power input 87 W Mains frequency 60 Hz Rated voltage 1 x 115 V Current in speed 3 0.75 A Capacitor size - run 10 µF Number of poles 2 Insulation class (IEC 85) F Ex-protection standard CONTACT Thermal protec Impedance protected Cable type Connecting cord with plug Controls Terminal box position 9H Others Net weight 2.36 kg Gross weight 2.76 kg
