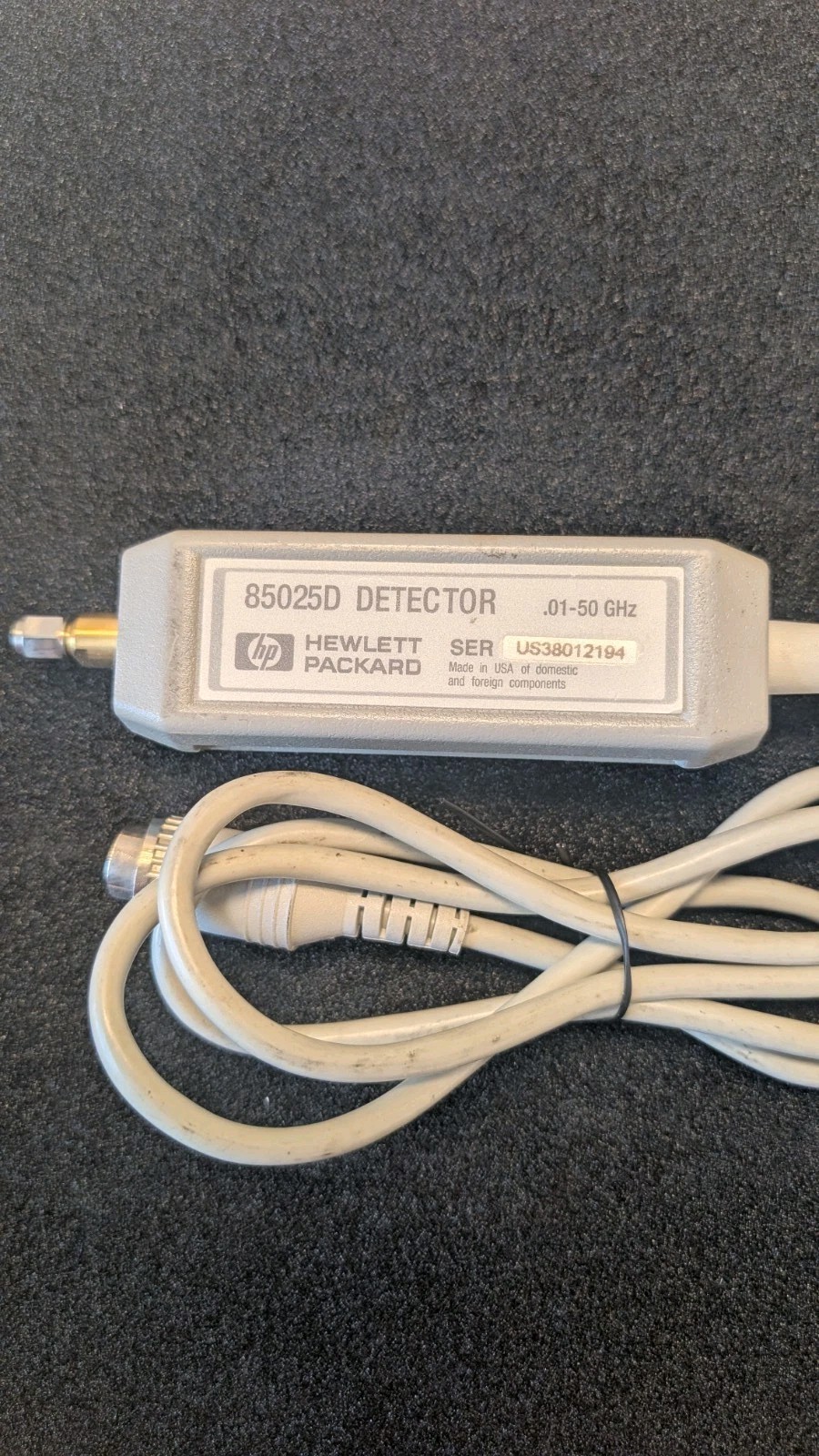

HP / Agilent 85025D AC/DC coaxial detector in good used condition.
The detector has been tested and is working properly. It covers 10 MHz to 50 GHz and uses a precision 2.4 mm RF connector. The 85025D detects both modulated AC and unmodulated DC microwave signals and is designed for use with the HP/Agilent 8757D scalar network analyzer.
Specifications:
• Model: 85025D
• Frequency range: 10 MHz to 50 GHz
• Measurement range: approximately -55 dBm to +16 dBm
• Detection: AC or DC
• RF connector: Precision 2.4 mm
• Condition: Used, tested and working
• Calibration: No current calibration certificate included
• Accessories: Detector only; no cables or additional accessories included
The unit may show normal cosmetic wear from previous use. Please review all photographs carefully for the exact condition and connector configuration.
The precision 2.4 mm connector will be protected carefully for shipment. Only the item shown and specifically described is included.
