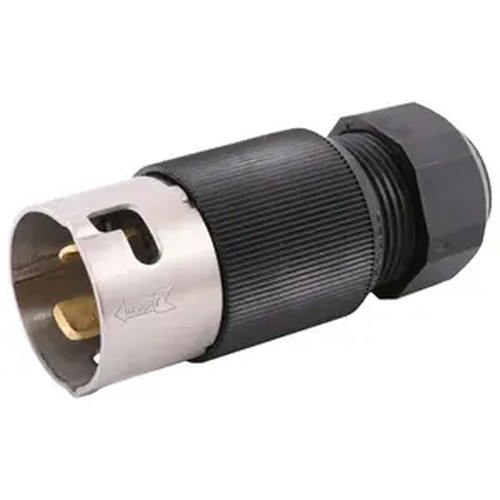

HUBBELL CS8365L Twist-Lock Male Plug 50A 250V 3-Phase For Sale

The BRYANT cs8365l is a heavy-duty twist-lock male plug rated for 50 amps at 250 volts AC in 3-phase delta configurations. It features a 3-pole, 4-wire grounding design with screw terminal connections and is built from composite nylon construction for durability in demanding environments. This plug is cord-mounted and intended for industrial power distribution applications where a secure, locking electrical connection is required. Licensed electricians install this device during panel feed, equipment hookup, and temporary power setups. At 6.38 inches long and 2.56 inches in both height and width, it is standard sized for the application.

The cs8365l is suited for heavy-duty industrial applications requiring a non-NEMA twist-lock plug at 3-phase delta 250-volt service. It is rated for indoor dry use unless protected by additional means, making it appropriate for protected industrial environments such as machine rooms, equipment pads, and covered service areas. The screw terminal design allows for clean, reliable conductor termination during installation.

• 50A, 250V AC 3-phase delta rating for high-current industrial power connections
• 3-pole, 4-wire grounding configuration for safety and equipment protection
• Twist-lock mechanism secures the plug against accidental disconnection
• Screw terminal connections provide solid, serviceable conductor termination
• Composite nylon body construction rated for heavy-duty industrial use
• EU RoHS as a non-NEMA twist-lock replacement plug for heavy-duty industrial cord-and-plug applications rated at 50A, 3-phase delta, 250V AC with 3-pole 4-wire grounding requirements.
  Installation Notes

  Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit completely before disassembling or terminating the plug. Ensure conductor insulation is stripped to the correct length and each wire is secured firmly under the screw terminals before reassembling the plug body. Verify that the environmental rating of the installation location meets the indoor dry requirement or that supplemental protection is provided.

  Technical Specifications
  • Amperage: 50A
  • Voltage: 250V AC
  • Phase Configuration: 3-Phase Delta
  • Poles and Wires: 3-Pole, 4-Wire Grounding
  • NEMA Designation: Non-NEMA
  • Terminal Type: Screw Terminal
  • Mounting: Cord Mounted
  • Material: Composite Nylon
  • Color: Black
  • Length: 6.38 inches
  • Width: 2.56 inches
  • Height: 2.56 inches
  • Environmental Rating: Indoor Dry Unless Protected By Additional Means
  • Application: Heavy Duty Industrial
  • EU RoHS Compliant: Yes
  Standard Information
  • Brand: BRYANT
  • Manufacturer Part Number: cs8365l
