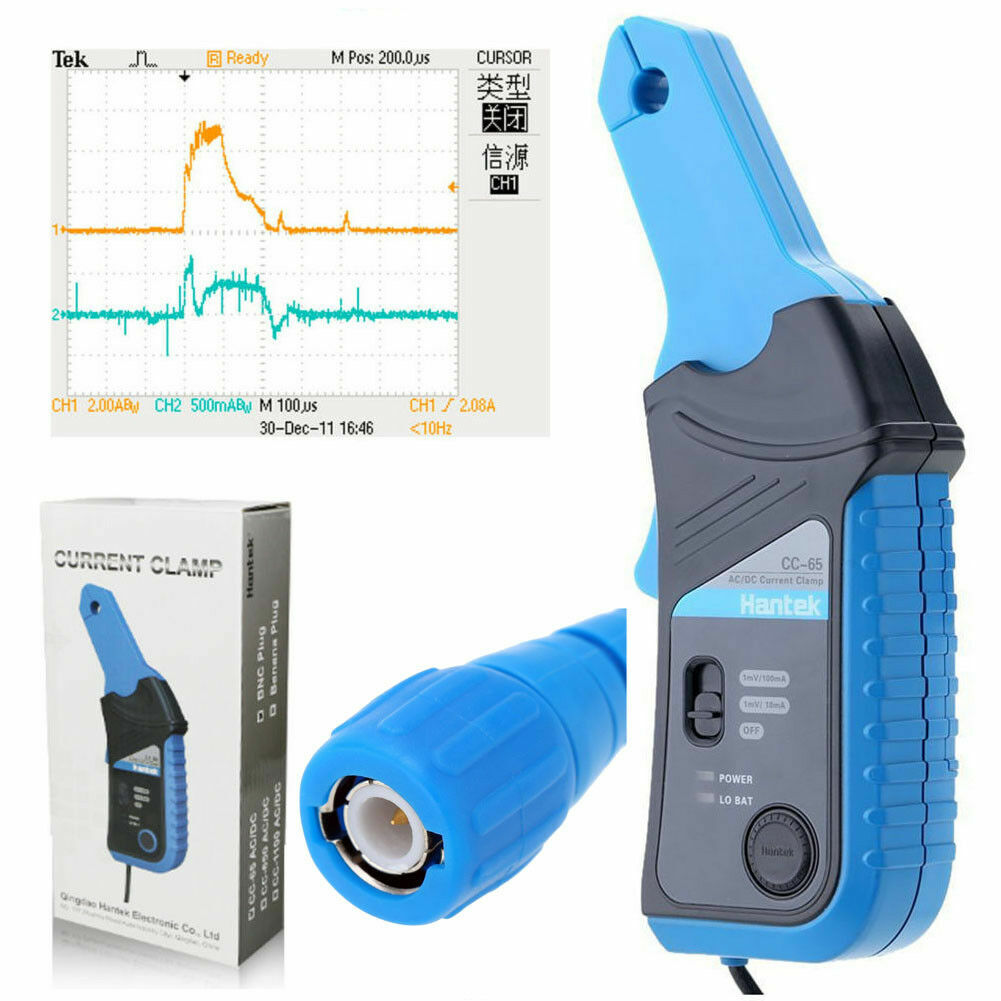

Hantek CC-65 AC/DC Digital Current Clamp Multimeter Meter with BNC Connector
Description: It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. When measuring AC/DC Current with the Current Clamp, a multimeter or scope can directly measure the current up to 65A, with a frequency uo to 20KHz. In this method, there is no need to break a circuit or to affect the isolation to measure the current. Features:
AC/DC frequency range: up to 20KHz.
Effective measurement range: 20mA to 65A DC.
Allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage.
If connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms.
Application:
Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipment measurement.
Specifications: DCA Range 1mV / 10mA ±(1.5%±5mA) 10mA ~ 20A 1mV/100mA
±(2%±20mA) 100mA ~ 40A;
±(4%±0.3A) 40A ~ 65A
ACA Range 1mV/10mA
±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz);
±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz);
±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz);
±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA
±(2%±30mA) 200mA ~ 40A (40Hz ~ 1KHz);
±(4%±30mA) 200mA ~ 40A (1KHz ~ 2KHz);
±(6%±30mA) 200mA ~ 40A (2KHz ~ 5KHz);
±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz)
Captured Conductor Size Max. 9mm Low Battery Indicator Red LED Lighting Operating Temperature 0°C to 50°C, 70% RH Storage Temperature -20°C to +70°C, 80% RH Battery Type 1 * 9V 6F22 Battery (NOT Included) Output BNC Plug Dimensions 195 * 70 * 33mm / 7.67 * 2.75 * 1.3in Weight 184g / 6.5oz Package Size 21.5 * 11 * 5cm / 8.46 * 4.33 * 1.97in Package Weight 251g / 8.85oz
Closer Look: Package List:
1 * Current Clamp with BNC Plug
1 * User Manual (English) Payment
