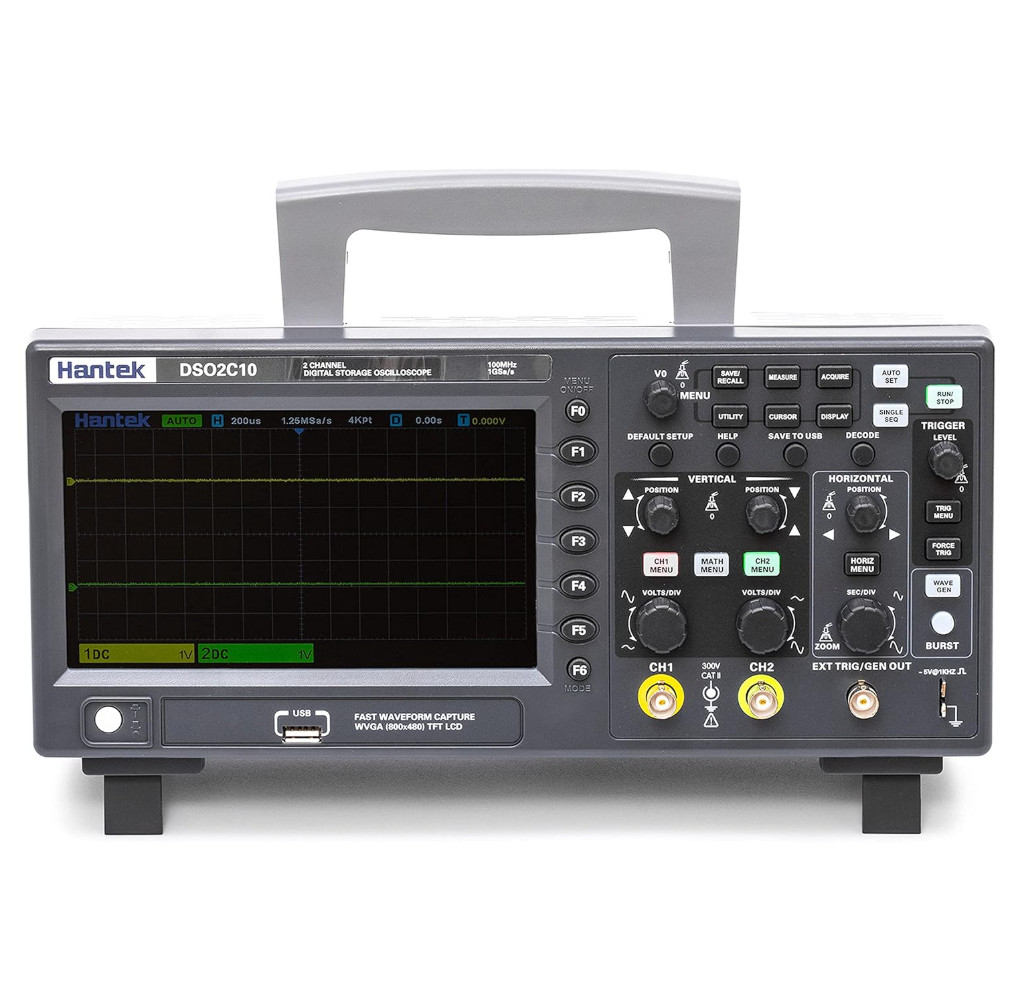

FEATURES
lDual Independently Controlled ChannelslWide Signal Bandwidth: 100MHzlSuper High Sampling Rate: 1GSamples/slDeep Storage Memory: 8MSampleslVertical Range: 2mV/div ~ 10V/divlVertical Resolution: 8bitlBuilt-in 25MHz Arbitrary Function Generator (On DSO2D10 & DSO2D15 Only)lTrigger Type: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, & IIClBUS Decoding and Protocol Analysis Functions: RS232/UART, I2C, SPI, CAN, LIN, etc.lVersatile Data Saving Functions in Multiple Formats: Settings, Signal and Reference Waveforms, CSV File for Data Values, Waveform Snap Shots, etc.lBuild-in Dual Channel 3-Digit Voltage Meters and One 6-Digit Frequency CounterlAutomatic Measurements for 32 Types of Real-Time Statistic Parameters: Maximum, Minimum, Standard Deviation, etc.lCan Set Trigger Threshold and Measure Major Parameters AutomaticallylRemotely Controllable Through SCPI (Standard Commands for Programable Instruments)lUSB Host/Device for Transferring Data and Connecting to a USB Equipment.
Model Selection Guide
Model
Channel
Bandwidth
Sample Rate
Memory Depth
AFG
DS02C10
2Ch
100MHz
1GSa/s
8MSamples
N/A
DS02C15
2Ch
150MHz
1GSa/s
8MSamples
N/A
DS02D10
2Ch+1Ch
100MHz
1GSa/s
8MSamples
1Ch
DS02D15
2Ch+1Ch
150MHz
1GSa/s
8MSamples
1Ch
SPECIFICATIONS
Model
DSO2D15
DSO2D10
DSO2C15
DSO2C10
Bandwidth
150MHz
100MHz
150MHz
100MHz
Oscilloscope Channels
2Ch
2Ch
2Ch
2Ch
1Ch
1Ch
Horizontal
SEC/DIV Range
2ns/div to 100s/div, in a 1, 2, 5 sequence
Delta Time Measurement Accuracy
(Full Bandwidth)
Single, sampling mode
±(1 sample interval + 100ppm × reading + 0.6ns)
>16 times above average
±(1 sample interval + 100ppm × reading + 0.4ns)
Sample interval = s/div ÷ 200
Vertical
A/D Converter
8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range
2mV/div to 10V/div at input BNC
Offset Range
2mV/div ~ 200mV/div, ±1V
500mV/div ~ 10V/div, ±50V
Selectable Analog Bandwidth Limit (Typical)
20MHz
Low Frequency Response (−3db)
≤10Hz at BNC
Rising TimeatBNC (Typical)
DSO2C10
DSO2C15
DSO2D10
DSO2D15
≤3.5ns
≤2.4ns
≤3.5ns
≤2.4ns
DC Gain Accuracy
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Vertical Offset Accuracy
±0.1div±2mV±1% Offset
Mathematical Operation
+,−, ×, /, FFT
FFT
Window Function Types: Rectangle, Hanning, Hamming, Blackman, Bartlett and Flat Top
Voltage Measurement Repeatability, Average Acquisition Mode
Under the same setting and environment, ≥16 waveforms are sampled, ΔV of any two averages:
± (3% × value + 0.05 div)
Note: Bandwidth reduced to 6MHz when using a 1X probe
Acquisition
Sample Rate Range
1GSa/s (single channel), 500MSa/s (dual channels)
Acquisition Modes
Normal, Peak, Average & High Resolution
Waveform Interpolation
(sin x)/x
Acquisition Rate (Typical)
Up to 2000 waveform per second per channel (Normal acquisition mode, no measurement)
Minimum Detection Pulse Width
2ns
Single Sequence
Acquisition Mode
Acquisition Stop Time
Normal, Peak Detect
Upon single acquisition on all channels simultaneously
Average
After N acquisitions on all channels simultaneously, N can be set to 4, 8, 16, 32, 64 or 128
Memory Depth
Maximum 8M for single channel (4K, 40K, 400K, 4M, 8M optional)
Maximum 4M for dual channels (4K, 40K, 400K, 4M optional)
Trigger
Trigger Type
Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, lIC
Trigger Level Range
±5 divisions from the center of the screen
Mode
Auto, Normal, Single
Level
CH1 ~ CH2
±5 divisions from the center of screen
EXT
0~3.3V [CMOS]
Holdoff Range
20ns ~ 10s
Trigger Level Accuracy
CH1~CH2
0.2 div × volts/div within ±4 divisions from the center of the screen
EXT
± (Set value × 6% + 40mV)
Trigger Sensitivity
±0.2div
Edge Trigger
Slope
Rising, Falling, Rising & Faling
Source
CH1 ~ CH2, Line, External
PulseTrigger
Polarity
Positive,Negative
Condition
<，>，!=，=
Source
CH1 ~ CH2
8ns ~ 10s
Accuracy
8ns
VideoTrigger
NTSC, PAL
Signalsource
CH1 ~ CH2
ScanLine, LinrNum, OddField, EvenField and AllField
SlopeTrigger
Slope
Nse, Fall
Condition
<,>,!=,=
Source
CH1 ~ CH2
TimeRange
8ns ~ 10s
Accuracy
8ns
Source
CH1 ~ CH2,
Polarity
Positive, Negative
Timerange
8ns ~ 10s
Accuracy
8ns
WindowTrigger
Source
CH1 ~ CH2
Pattern
0: lowlevel; 1: highlevel; X: ignore
Level
CH1 ~ CH2
Slope
Rising, Falling
Condition
<, >, !=, =
SignalSource
CH1 ~ CH2
TimeRange
8ns ~ 10s
Accuracy
8ns
Under Amp Trigger
Polarity
Positive, Negative
Condition
<, >, !=, =
Source
CH1 ~ CH2
TimeRange
8ns ~ 10s
Accuracy
8ns
UART Trigger
Condition
Start, Stop, Data, Parity Error, COM Error
Source
CH1 ~ CH2
Data Format
Hex
Condition
<, >, !=, =
Data Length
1 byte
Data Bits Width
5 bit, 6 bit, 7 bit, 8 bit
Parity Check
None, Odd, Even
Idle Level
High, Low
Baud Rate (Selectable)
Baud Rate (Custom)
300bit/s ~ 334000bit/s
LIN Trigger
Condition
Interval Field, Sync Field, Id field, Sync Id Error, Identifier, Id and Data
Source
CH1 ~ CH2
Data Format
Hex
Baud Rate (Selectable)
Baud Rate (Custom)
300bit/s ~ 334000bit/s
CAN Trigger
Condition
Start Bit, Remote Frame, Data Frame Id, Frame Id, Data Frame Id A, Error Frame, All Error, Ack Error, Overload Frame
Source
CH1 ~ CH2
Data format
Hex
Baud Rate (Selectable)
10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000,1000000
Baud Rate (Custom)
5kbit/s ~ 1Mbit/s
SPI Trigger
Source (SDA/SCL)
CH1 ~ CH2
Data Format
Hex
Data Length
4, 8, 16, 24, 32
IIC Trigger
Source (SDA/SCL)
CH1~CH2
Data Format
Hex
Data Index
0~3
Condition
Start Bit, Stop Bit, No Ack, Address, Restart, Address and Data
Input
Number of Channels
2 analog channels
Input Coupling
DC, AC or GND
Input Impedance, DC Coupled
20pF ± 3pF, 1MΩ ± 2%
Probe Attenuation
1X, 10X
Supported Probe Attenuation Factors
1X, 10X, 100X, 1000X
Overvoltage Category
300V CAT II
Maximum Input Voltage
300VRMS(10X)
Isolation Between Channels
>40dB
Delay Deviation Between Channels
<500ps
Measurements
Cursors
Voltage difference between cursors: ΔV
Time difference between cursors: ΔT
Reciprocal of ΔT in Hertz (1/ΔT)
Automatic Measurements
PkPk, Frequency, Average, Max, Min, Period, Vtop, Vmid, Vbase, Vamp, RMS, R-Overshoot, PeriodRms, F-Preshoot, PeriodRms, PeriodAvg, RiseTime, FallTime, +Width,−Width, +Duty,
−Duty, FRR, FFF, F−Overshoot, R−preshoot, BWidth, FRF, FFR, LRR, LRF, LFR and LFF
DVM
Data source
CH1, CH2
Measurement type
DC RMS, AC RMS, DC
Math Operation
Source
CH1~CH2
Operator
+,−, x, /, FFT
FFT
Point
1024
Window
Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
Display
Show only or show all
Vertical scale
dB, VRms
Storage
Save/Recall (Non-volatile)
9 types of files can be saved and recalled internally, including settings, waveforms, and references
Save to External Memory
CSV file, BMP picture (24 bit)
Channel
1
Sine, Square, Ramp, Exponential, Noise, DC
Sin
Frequencyrange
0.1Hz ~ 25MHz
Square/Pulse
Frequencyrange
0.1Hz ~ 10MHz
Duty
1% ~ 99%
Frequencyrange
0.1Hz ~ 1MHz
Ramp
Frequencyrange
0.1Hz ~ 1MHz
Symmetry
0% ~ 100%
Exponential
Frequencyrange
0.1Hz ~ 5MHz
Noise
Bandwidth
>25MHz
DCoffset
Range
±3.5V, highimpedance
±1.75V, 50Ω
Resolution
100µV or 3 bits, take the greater one
Accuracy
2% (1kHz)
Frequency Range
1µHz ~ 25MHz
Wave length
4096
Support PC download and external memory recall
50 Ω + 1%, high impedance
Amplitude
Outputrange
10mV ~ 7Vp-p (highimpedance)
5mV ~ 3.5Vp-p (50Ω)
±3dB
WaveformDepth
4KSa
Frequency Resolution
1uHz
<10KHz,100ppm
>10KHz,50ppm
Modulation
FM
Modulation waveform
Sine, square, ramp
Modulation frequency
1Hz ~ 50kHz
Modulation deviation
0.1Hz ~ Carrier frequency
AM
Modulation waveform
Sine, square, ramp
Modulation frequency
1Hz ~ 50KHz
Modulation depth
0% ~ 120%
Burst
Types of
N Cycle, Infinite
Number of cycles
1 ~ 1024
Trigger source
Manual
Trigger Input Signal Source
Level
MOS
Probe Compensator Output
Output Voltage (Typical)
5V
Frequency (Typical)
1kHz ± 1%
Display
Display Type
7 inchs TFT (diagonal liquid crystal)
Display Resolution
800 (horizontal) × 480 (vertical) pixels
Display Type
Point, vector
Waveform Brightness
Adjustable
Grid Type
Adjustable
Grid Brightness
Adjustable
Screen Brightness
Adjustable
Display Colour
16 million colours (24 bits true colour)
Persistence time
Minimum, 1s, 5s, 10s, 30s, infinite
Interface
Standard Interface
USB Host, USB Device
Power Supply
Supply Voltage
100 ~ 120VACRMS(±10%), 45Hz to 440Hz, CATII
120 ~240VACRMS(±10%), 45Hz to 66Hz, CATII
Power Consumption
<15W
Fuse
T2A 250VAC 4*8
Environmental
Operating Temperature
0 to 50 °C (32 to 122 °F)
Storage Temperature
−40 to +71 °C (−40 to 159.8 °F)
Humidity
≤ +104°F (≤ +40°C): ≤90% relative humidity
Cooling Method
106°F ~ 122°F (+41°C ~50°C): ≤60% relative humidity
Altitude
Operating and Nonoperating
3,000m (10,000 feet)
Random Vibration
0.31gRMSfrom 50Hz to 500Hz, 10 minutes on each axis
Nonoperating
2.46gRMSfrom 5Hz to 500Hz, 10 minutes on each axis
Mechanical Shock
Operating
50g, 11ms, half sine
Mechanical
Dimension
318 × 110 × 150mm (L × W × H)
Weight
1900g
