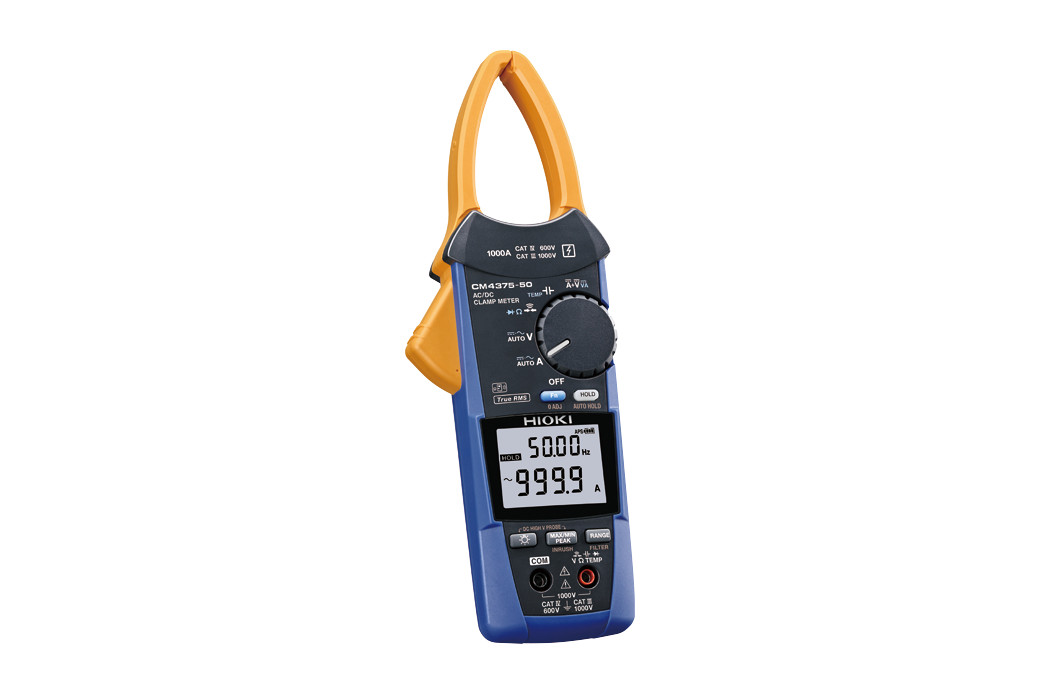

PRODUCT DESCRIPTION Overwhelmingly easy to clip, current sensor 1000 A that can be inserted between narrow cables
Very thin sensor design that can easily fit into cable gaps
Automatically determines AC/DC
Can measure up to DC2000V for solar panel open voltage inspection
(Optional P2000 is required. The main unit can measure up to DC1000 V.)
Simultaneously display the effective value and waveform peak of inrush current (INRUSH)
Wireless compatible! Transfer measured values to your smartphone or tablet (when the optional wireless adapter Z3210 is installed)
Wirelessly transfer and input measurement data directly into Excel(R) forms (when the optional wireless adapter Z3210 is installed)
GENNECT Cross allows harmonic analysis from the 1st to the 30th order.
CAT IV 600 V, CAT III 1000 V (CAT IV 1000 V, CAT III 2000 V when using P2000)Dustproof and waterproof performance
IP20 (voltage measurement in completely dry conditions, jaw closed)
IP54 (when stored)
DC voltage (V) 600 m to 1000 (600 to 2000 when using P2000) AC voltage (V) 6 to 1000, 4 ranges (15 to 1 kHz, true RMS rectification), basic accuracy 45 to 66 Hz: ±0.9%rdg.±0.003 (at6) AC current (A ) 1000 (maximum display 999.9, 10Hz to 1kHz, true RMS rectification), basic accuracy 45-66Hz: ±1.8%rdg.±0.3 (t30.1-900) DC current (A) 1000 (maximum display 999.9), basic accuracy: ±1.3%rdg. ±0.3 (t30.1-999.9) Power supply AAA alkaline battery (LR03) x 2 Clamp diameter (Φmm) 34 Resistance (Ω) 600 to 6M, 5 ranges, Basic accuracy: ±0.7%rdg.±0.5 (at600) Dimensions (width W x height H x depth D) (mm ) 65 x 242 x 35 Mass (g) 350 Accessories Test lead L9300 x 1, Carrying case C0203 x 1, AAA alkaline battery (LR03) x 2, Instruction manual x 2, Precautions for use x 1 Specifications - AC measurement method: True RMS measurement method (True RMS) ●Harmonics: [When Z3210 is installed] Harmonic level/content rate/total harmonic distortion rate up to the 30th order in voltage and current *Displayable with application software (GENNECT Cross) Dimensions Minimum jaw cross-sectional dimension: 9.5 mm (Dimensions are 44 mm from the tip of the jaw) Value in the range of mm) Operating temperature range (℃) -25 to 65 Temperature (℃) [K] -40 to 400, Accuracy: ±0.5%rdg.±3 + Temperature probe accuracy addition Continuous use time Continuous use time: Approximately 40 hours (Z3210 not installed), approximately 20 hours (Z3210 installed and wireless communication) Functions Continuity check, diode check, AC/DC automatic discrimination, DC current/voltage Positive/negative judgment, maximum/minimum/average/maximum peak value/minimum peak value display, low-pass filter, display value hold, backlight, auto power save, buzzer sound, zero adjustment, other frequency range (Hz) 9.999 to 999.9, 3 ranges, basic accuracy: ±0.1%rdg.±0.003 (at9.999) AC/DC voltage 6V to 1000V, 4 Range, basic accuracy DC, 45-66Hz: ±1%rdg.±0.013V (at6V) AC/DC current 1000A (DC, 10Hz to 1kHz, true RMS rectification), base Accuracy DC, 45-66Hz: ±1.3%rdg.±1.3A (t30.1A-900A) AsOne product number 65-1796-10 Measurable conductor diameter (Φmm) 34RoHS Directive (compatible with 10 substances) Crest factor 1000A range: 1.5 DC power (VA) 0k to 1000k (0k to 2000k when using P2000) (depending on voltage range) Basic accuracy: ±2.0%rdg.±20dgt.Capacitance (μF) 1 to 1000, 4 ranges, Basic accuracy: ±1.9%rdg.±0.005(at1) SHIPPING INFORMATION Fast & Secure International Shipping DHL / FedEx / Japan Post · Tracking & Insurance Included U.S. ORDERS under $2,500 → DDP (duties prepaid)
