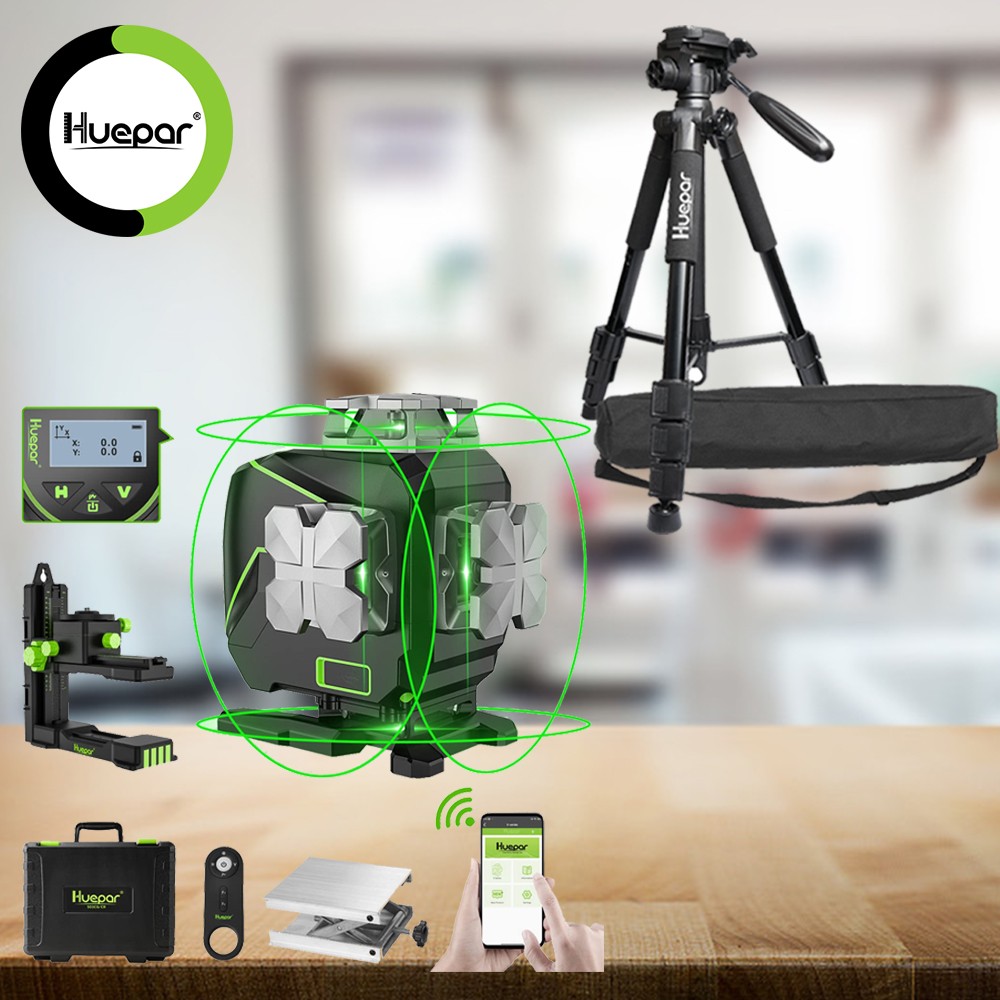

Huepar 4D Laser Level Self-leveling & LCD Screen Remote Control S04CG + Tripod For Sale

STORE CATEGORIESSTORE CATEGORIES

• sale
• US STOCK
  • Ship to the world
• ✔️LCD DISPLAY&BLUETOOTH TECH: The laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.
• ✔️TRIPLE POWER METHODS&TYPE-C CHARGING PORT: This 360 laser tool adopted 7.4V / 2600mAh Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. Besides, this 4D laser level can be used at job site by plugged in when take out the battery. With Type-C charging port, the 16 lines laser level can also be charged by laptop, power bank, car charger, etc.
• ✔️MULTIFUNCTIONAL LASER TOOL: The four 360° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.
• ✔️MAGNETIC BRACKET&DURABLE DESIGN: Strong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool for wall applications.The laser offers 1/4"-20 mount thread to suit a standard tripod or pole mount. Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver. The kit has a hard carry case bringing much more convenience to carry and store the laser tool.

Huepar S04CG 16 Lines 4D Green Laser Level Specifications:

● Laser Beam: Green Beam

● Screen type:LCD screen with backlight

● Projection: 16Green Laser Lines

● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

● Laser Wavelength: Germany Osram 505nm-520nm

● Horizontal/Vertical Accuracy:±2mm/10m, ±1/13 in. at 33 ft

● Leveling/Compensation Range:3.5°±1°

● Leveling Time:≤3s

● Working Distance:≥20m, ≥40m with detector

● Working Time: About 5 hours with li-ion battery, About 0.5 hours with AA battery

●Power Source:7.4V/2600mAhLi-ion battery& 4 x AA battery

● Mount Size: 1/4"-20

● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness

● Operating Temperature: Between -10℃ and +50℃

● Storage temperature: Between -20℃ and +70℃

Package Contents:1 x Green Laser Level S04CG1 x Wall Hanging Plate1 x Multifunctional Pivoting Base1 x 2600mAh Li-ion Battery1 x Remote Control1 x Power Adapter1 x Lifting Base1 x AA Battery Compartment4 x AA battery1 x User Manual1 x Huepar 56"/143cm Tripod1 X Carrying Bag1 X Instruction Manual

Line Switching:

Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.The laser lines can be selected separately according to job requirements.With LCD Display Screen:The laser level kit features LCD screen display.Users can easily get the status of the power, angle, pendulum and pulse mode on the display.With Remote control:The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.With the remote control, users can also turn on/off the pulse mode and adjust the line visibility.Connected With Smart Bluetooth:Connect S04CG Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.The laser tool can connect two phones at the same time, whether on Android or iOS.The functions of the laser tool can be easily operated with the Bluetooth feature.Self-leveling mode:Once the pendulum unlocked, self-leveling mode is enabled.The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.Manual mode:When the pendulum locked, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.Pulse Mode:Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.Diverse Power Supply:Large-capacity li-ion battery: 5 hours of extra-long workingAA battery: 4x AA battery for 0.5h usageDirect input charging: This laser tool can be used at job site with direct input charging even if take out the battery.Charging protection help prevent the tool from overcharge.Multiple Installation Method:With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod.Lever type leg lock and elevator adjust length

Since there is a lever type leg lock, it can stretch in four stages.

Also equipped with a gear type elevator for crank handle operation, even when you want to further height, fine adjustment can be done easily.

Easy operation 1 handle 3 WAY head

If you loosen the handle and loosen it, you can adjust it to vertical 90 ° horizontal 360 °. The quick shoe plate can also be tilted by 90 °. During operation, the tripod does not move, you can easily check the position.

The 3-Way Flexible Pan Head Provides 360 degree Rotation Panoramas. The Built-in Bubble View Level can help you adjust the angle and accuracy.
