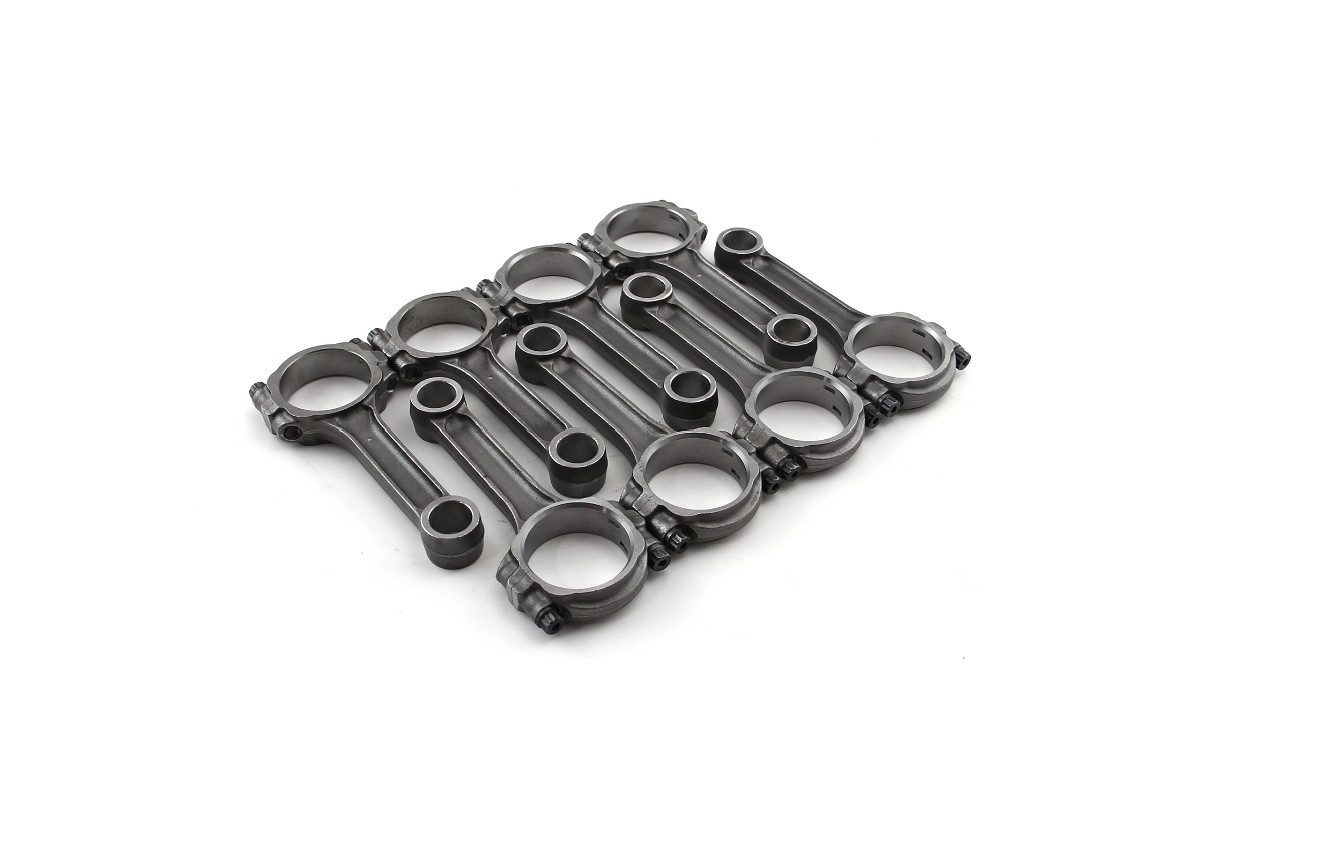

I Beam 6.135\" 2.200\" .990\" Press Fit 5140 Connecting Rods Suits: Chevy BBC 454. For Sale

I Beam 6.135\" 2.200\" .990\" Press Fit 5140 Connecting Rods Suits: Chevy BBC 454.
Description
These Speedmaster I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Speedmaster I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. Speedmaster cap screw bolts to greatly increase strength and horsepower capabilities.

Speedmaster I Beam Street connecting rods are manufactured from high quality 5140 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress Number:PCE274.1016Part Type:Connecting RodProduct Line:I-BeamConnecting Rod Length Center to Center (in):6.135 in.Connecting Rod Beam Style:I-beam StreetConnecting Rod Material:5140 Chromoly SteelConnecting Rod Finish:Shot-peenedWrist Pin Style:Press-fitClearanced for Stroker:NoCap Retention Style:Through-boltConnecting Rod Bolt Brand:PCEConnecting Rod Bolt Diameter:3/8 in.Connecting Rod Bolt Material:Chromoly steelFastener Yield Strength (psi):200,000 psiConnecting Rod Bolt Head Style:12-pointApproximate Connecting Rod Weight (g):832gRod Journal Diameter (in):2.200 in.Big End Bore Diameter (in):2.500 in.Pin End Bore Diameter (in):0.990 in.Big End Width (in):0.990 in.Advertised Horsepower Rating (hp):600 hpAdvertised RPM Rating:6,000 rpmWeight Matched as a set of 8.Tool:Stroker Combinations
