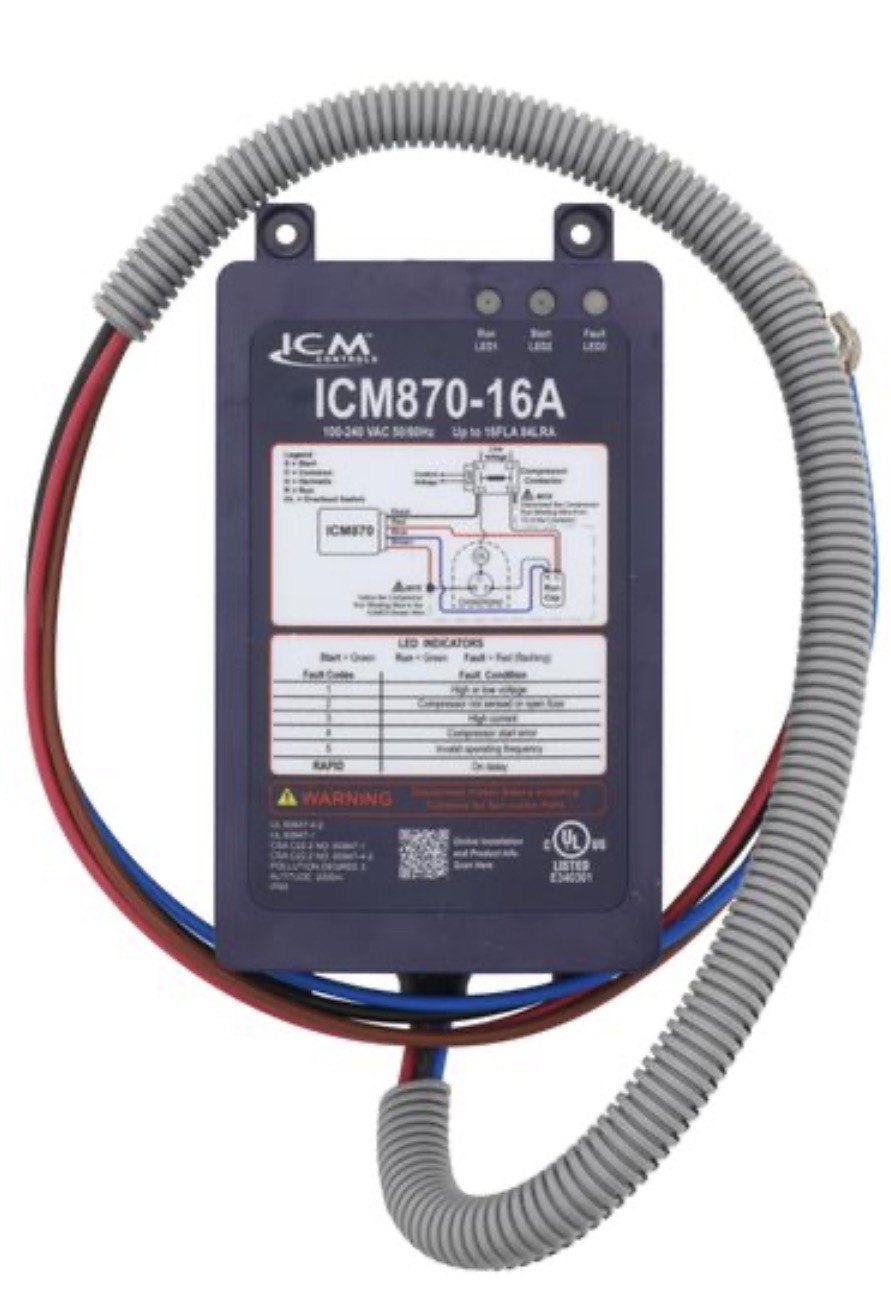

BRAND NEW - ICM870-16A Soft Start, Built-in Start Capacitor, Over/Under Voltage Monitoring, Over-Current Protection, Current 16ADETAILS-Reduces in-rush current/draw necessary at startup by up to 70%
Prolong the life of the A/C by reducing excessive torque, wear and tear
Built-in dynamic start delay
Reduce loud noises, light flickering, and breaker trips
Built-in self-learning algorithm
Over-current protection
Over/under voltage monitoring
Built-in start capacitor
LED fault indicators
Ultrasonic sealed tamper-proof enclosureSPECS-Input(L1, L2) – 100-240 VAC 50/60Hz
Over voltage limits: 115 VAC nominal = 140 VAC, 240 VAC nominal = 264 VAC
Under voltage limits: 115 VAC nominal = 95 VAC, 240 VAC nominal =195 VAC
OutputCompressor
Solid state/relay
CurrentMax. nominal = 9 FLA for ICM870-9A, 16 FLA for ICM870-16A
Over current limits
ICM870-9A = 11.25A
ICM870-16A = 20A
EnvironmentAmbient temperature:
40°C @ 16 FLA, 8 h duty 50°C @ 16 FLA
Temporary duty F = 30% (3 mins ON and 7 mins OFF)
S = 6 (6 cycles per hour)
Storage temperature: -40°F to 149°F (-40°C to 65°C)
Humidity: 0-95% non-condensing
MechanicalEnclosure: IP65
Screw Hole Center Points: 7.36” x 2.97”
Weight/DimensionsLength: 7.94”
Width: 4.20”
Height: 2.10”
