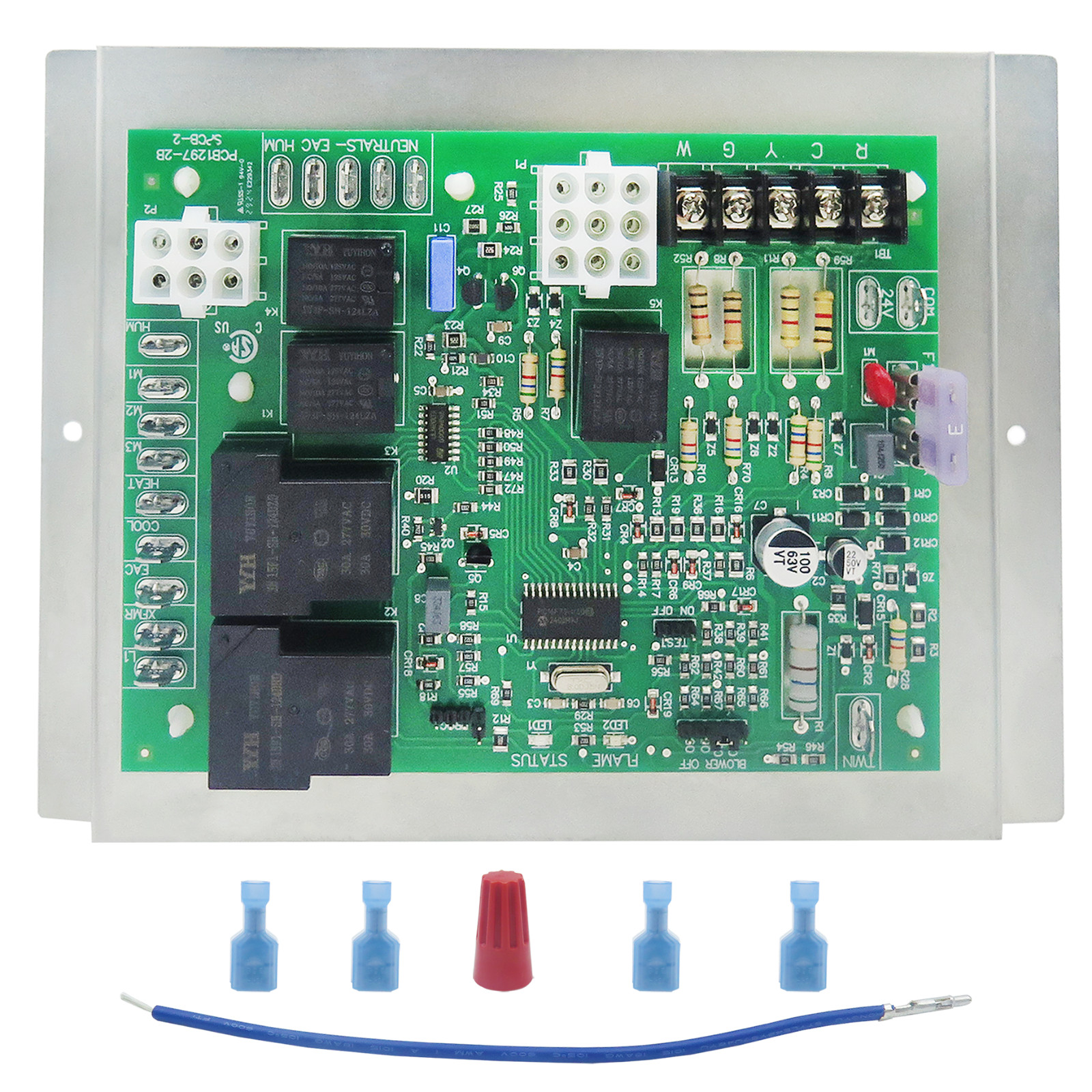

ICM2805A Furnace Control Board ，Replacement for Nordyne 903106 and 624631:
$44.88
- Replacement for Nordyne 903106 and 624631 Control Boards；Used with G3, G4, G5, G6, M2 and M3 Furnace Modules
- 【Replacement Part】 ICM2805A, 903106, 624591-A, 624591-B, 624591-C, 624591-D, 624631-A, 624631-B, JHL, 6245640, 624631-A, 1012-955A and 6245910.
- 【Compatibility】Replacement for Nordyne, Miller, Gibson, Intertherm, Frigidaire, Philco and Thermal Zone Furnace. Also compatible with Carrier HK42FZ0-xx series control boards.
- 【Technical parameter】 Voltage Range: Line (98 to 132 VAC) @ 60Hz. Ignitor: 5A @ 120 VAC. Cool Blower: 30A, 2HP, 240 VAC. Heat: 5A, 1/2 HP, 240 VAC. Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC. Gas Valve: 1.5A @ 30 VAC.
- 【Features】Controls gas valve, inducer draft motor, circulating blower, and hot surface igniter；Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout, and limit switches；Microprocessor-controlled precision；Twinning compatible with other ICM2805A furnace control；Diagnostic LEDs aid in testing and troubleshooting
|
