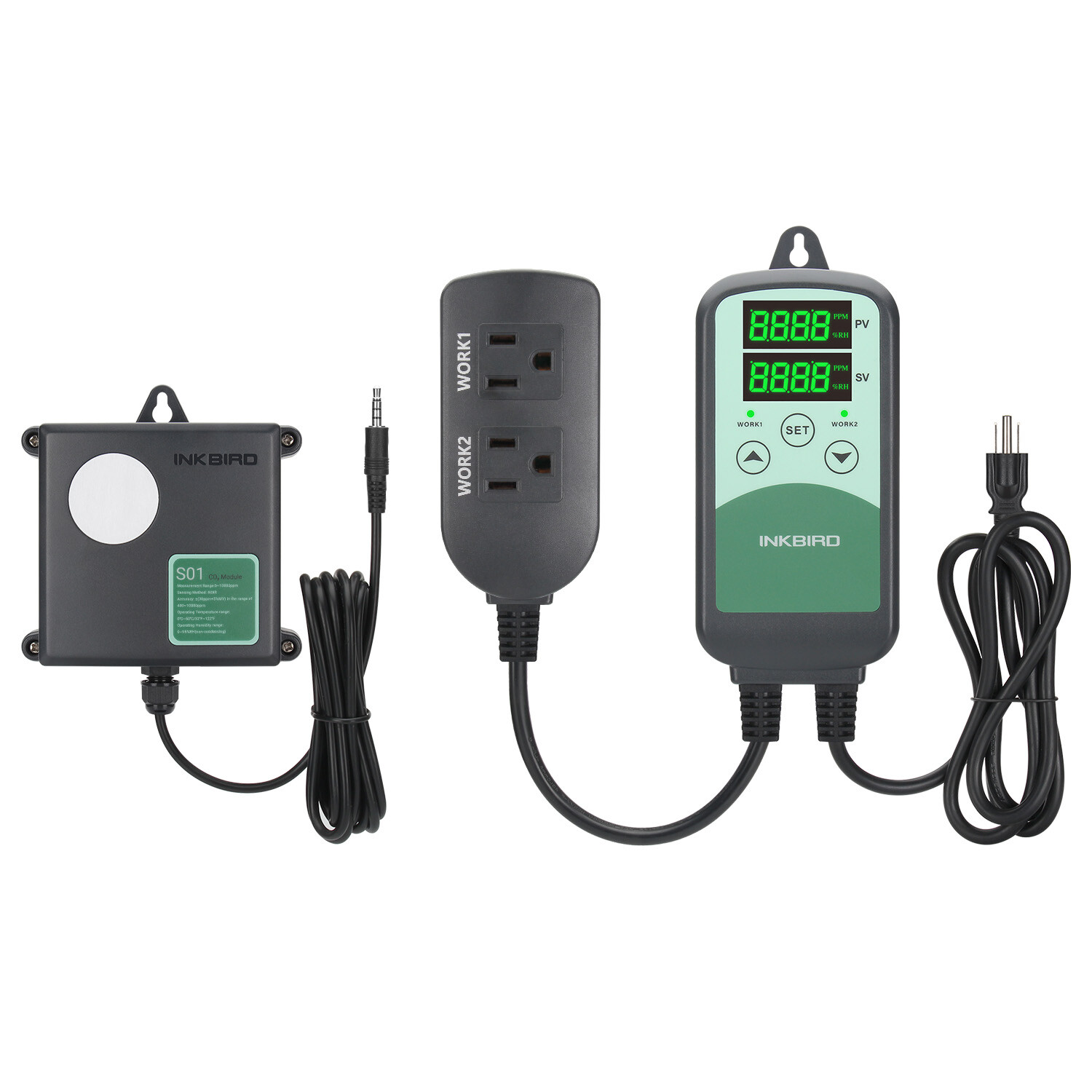

New Version Inkbird Digital Prewired Programmable ICC-500T CO2 Controller Carbon Dioxide Regulator Adjust with S01 / B01 Probe Sensor for Hydroponics Greenhouse etc
Features:【Dual Relays】: The CO2 controller can be connected to the CO2 regulator or generator and the exhaust fan simultaneously.【Dual Sockets】: WORK1: The CO2 regulator or generator; WORK2: The exhaust fan.【Dual Display Windows 】: display the current measured CO2 concentration value and the set CO2 concentration value simultaneously；【Accurate Reading 】: Adopted the NDIR sensor to get a precisely CO2 ppm level；【Alarm 】: supports CO2 calibration and high/low CO2 concentration alarm；【Easy to Use】: Play-N-Plug design, no more complicated installation,turn on/off the CO2 generator or regulator and the fan automatically according to your settings【Warranty】: 2 years warranty, ICE&FCC certificated, safe, and reliable.【Widely Use for multiple fields】: (Like: Agricultural and Livestock Industries): wide range of uses and can be used for ventilation system building control and HAVC equipment. (Difference depending on the SENSOR)
Difference depending on the SENSOR:❤S01 SensorMultiple Uses: Widely applied in the ventilation system, building control, and HVAC equipment.❤B01 SensorMultiple Uses: Widely applied in agricultural and livestock industries, greenhouses, industrial fields, and general ventilation HVAC.
Specification:--Brand: INKBIRD--Model: ICC-500T--Input / Output Power: 100~240Vac 50/60Hz 10A MAX--Disconnection Method: Type 1B--Rated Impulse Voltage: 1500V--Automatic Operation: 6000 cycles--Working Environment: room temperature--Storage Temperature: 0℃~60℃/32℉~140℉--Storage Humidity: 20~80%RH (No freezing or condensation)--Warranty Period: 2 years--Measurement Range: 0~9,999 ppm--Sensing Method: NDIR--Sensor Working Temperature: 0℃~50℃/32℉~122℉--Working Humidity: 0~95%RH (non-condensing)--Calibration Method: CO2 reading calibration(current CO2 concentration Value+CO2 calibration value)--Sensor details: Error: ± (30 ppm+3% MV)--S01 , Response Time (63%): 20 seconds---S01 Error: ± (30 ppm+5% MV)--B01 , Response Time (90%): 120 seconds---B01
Package Contents(US Plug)--ICC-500T*1--S01 Sensor Or B01 Sensor(Up to your choice)--User Manual*1--Warranty Card*1
