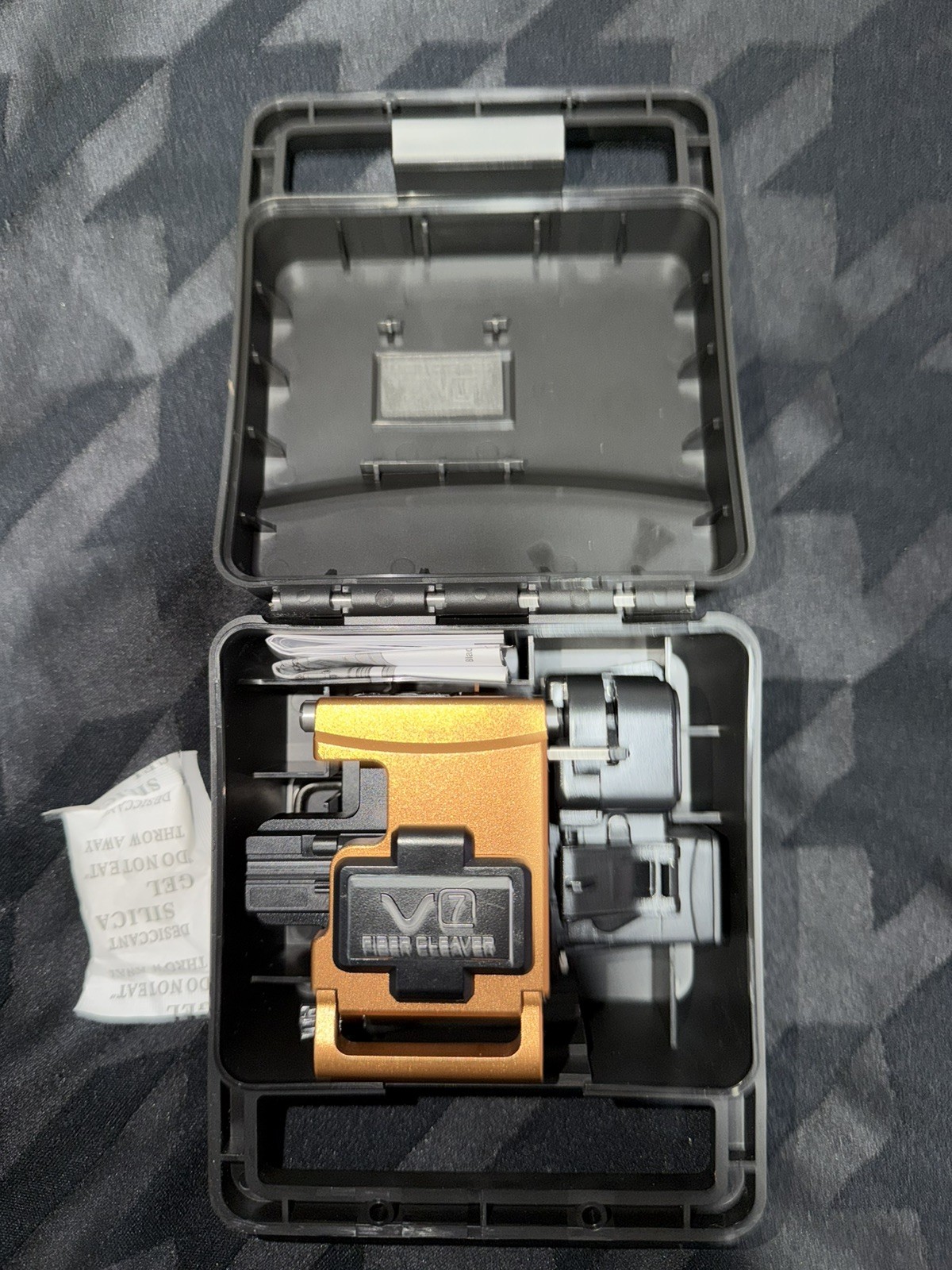

Precision Fiber Cleaving for Fusion Splicing PreparationThe INNO Instrument V7+ is a high precision single and ribbon fiber cleaver. It is designed to prepare fiber ends for fusion splicing across single fiber, ribbon fiber, and supported drop cable formats. The cleaving platform supports clean fiber preparation workflows where repeatable end-face quality and simple operation are required.Fiber Cleaving Operation with 2-Step Blade ActionPerforms fiber cleaving through a simple 2-step operation that supports repeatable preparation before fusion splicing
Uses a blade-based cleaving method with blade pushback reclaim function to maintain continued use across blade positions
Supports universal holder-based positioning for single fiber and replaceable holder use for ribbon fiber
Prepares single fiber, ribbon fiber, and supported cable formats for controlled end-face formation
Cleaving Range and Automatic Shard CollectionSupports single fiber and ribbon fiber cleaving, including ribbon fiber cable up to 12 fibers
Accepts single fiber cable from 160 μm to 900 μm, 2 mm to 3 mm cable, and drop cable
Provides typical cleaved angle less than 0.5 degrees with typical blade life up to 60,000 fiber cleaves
Includes automatic shard collection on the V7+ configuration to manage fiber off-cuts during cleaving workflows
Fiber Preparation and Splicing WorkflowsFusion splicing preparation for VIEW series splicer workflows
Single fiber preparation across coated fiber and supported cable sizes
Ribbon fiber preparation for multi-fiber cleaving tasks
