(2PC BOX)

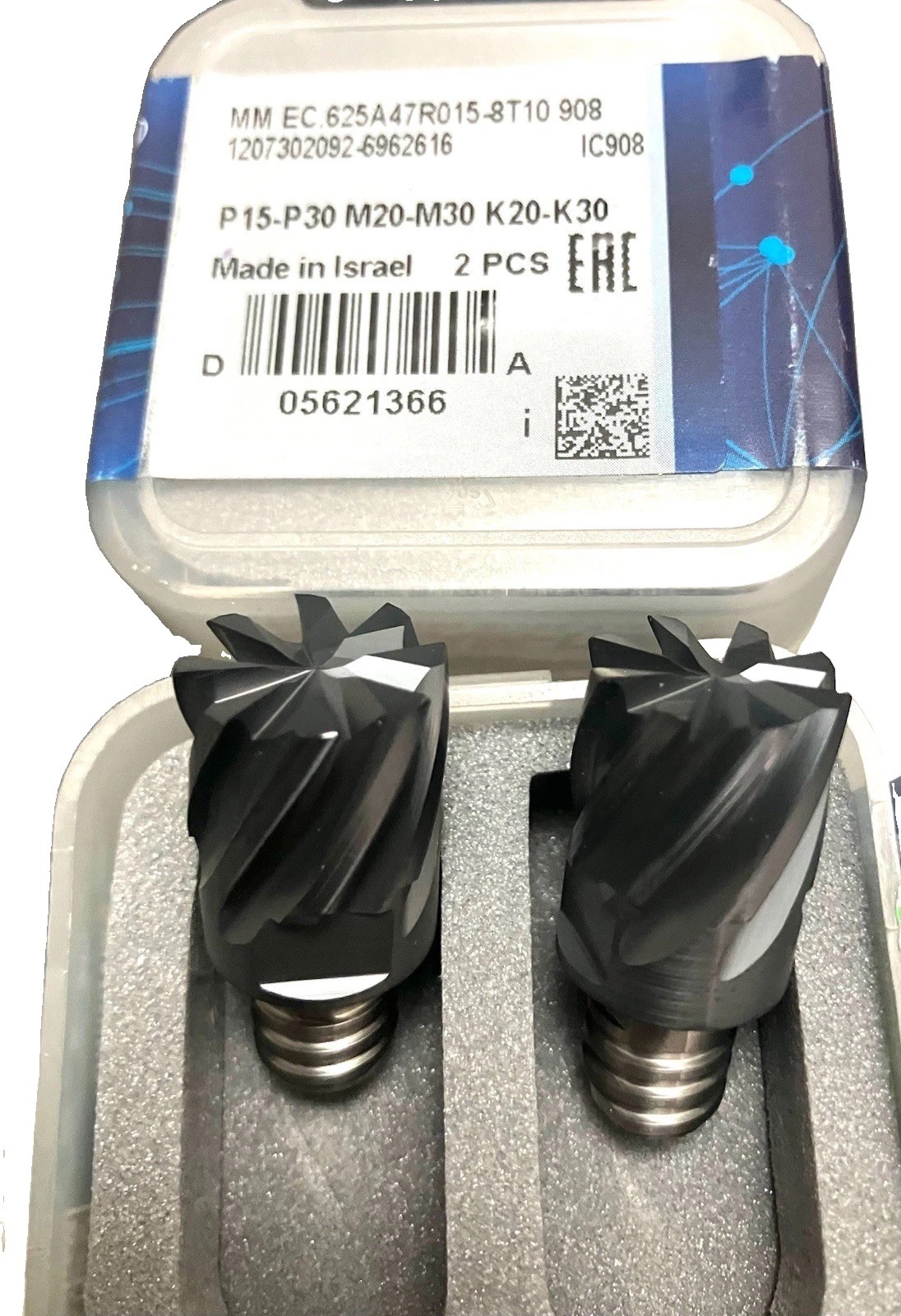

Iscar MMEC625A47R0158T10
5/8” Corner Radius Milling Inserts, Caroffere
.470” Max Depth of Cut, .015” Corner Radius
8 Flute, 30° Helix, 90° Lead Angle
IC908 Grade, TiAlN Coated, Right Hand
MM EC-8 / MM EC-10 Series
Specifications:
Insert Type: Corner Radius
Insert Style: MM EC-8 / MM EC-10
Cutting Diameter: 5/8” (.6250”)
Length of Cut: .4700”
Corner Radius: .0150”
Functional Length: .8100”
Overall Length: .8100”
Number of Flutes: 8
Helix Angle: 30°
Lead Angle: 90°
Included Angle: 90°
Chamfer Angle: 0°
Tool Material: Caroffere
Material Grade: Sub Micrograin
Manufacturer Grade: IC908
Coating/Finish: TiAlN
Coating Process: PVD
Insert Hand: Right Hand
Chipbreaker: None
Coolant Through: No
Insert Size: .625A47R015
Catalog Number: 5621366
Full Description: MM EC.625A47R015-8T10
Extension From Holder: .8100”
Maximum Depth of Cut: .4700”
Country of Origin: Israel
