JBL 4333A 3-Way Studio Monitor PairBi-Amp Capable – Serviced & Fully Tested – 1-Year WarrantyProfessionally Serviced, Inspected & Fully Tested by HQaudios – Backed by Our 1-Year WarrantyOverview

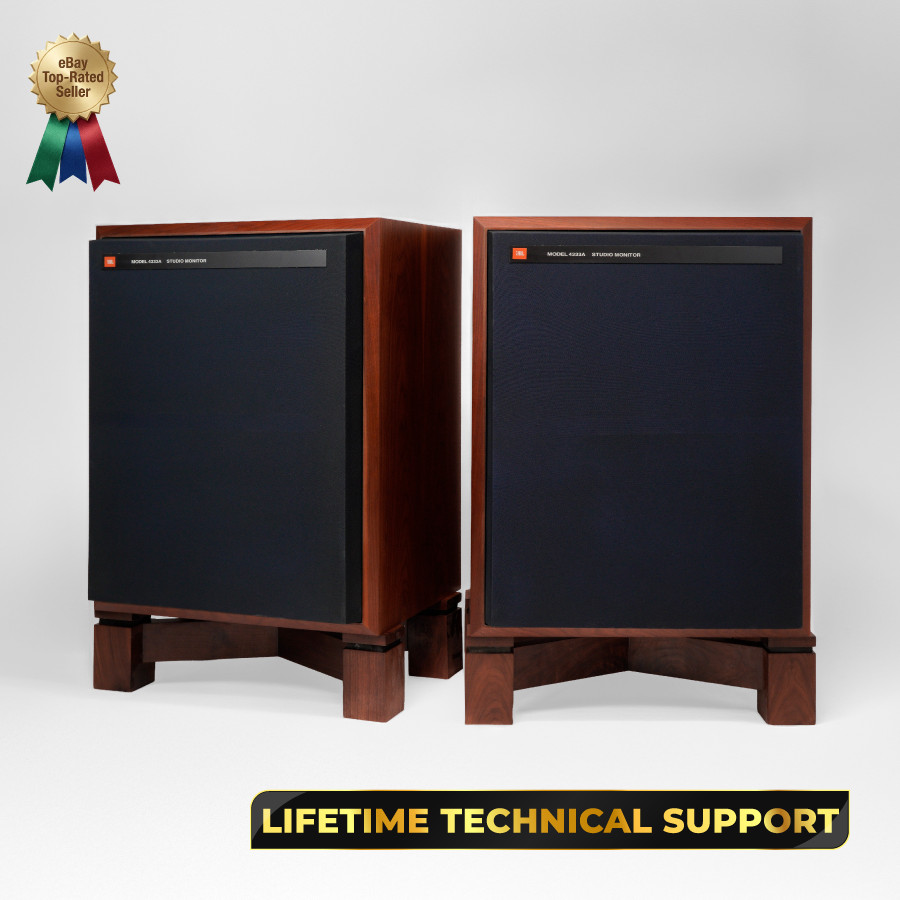

Offered here is a pair of JBL 4333A three-way professional studio monitors from JBL\'s classic 43-Series.
The factory system architecture combines the JBL 2231A 15-inch low-frequency driver, 2420 compression driver, 2312 horn, 2308 acoustic lens, 2405 ultra-high-frequency driver, and 3133A dividing network.
The 4333A can be operated through its internal passive dividing network or switched for bi-amplification, allowing the low-frequency and upper-frequency sections to be driven separately when used with the proper external crossover and amplifier configuration.
This actual pair has been inspected, serviced, cleaned, and fully tested by HQaudios prior to sale.
Video Demo & Sound Test
Watch the demonstration of this exact JBL 4333A pair to see and hear both speakers operating before purchase.
🔊 Sound Demo / Audio Experience
▶ Click Here to Watch Sound Demo on YouTube
(For the best audio experience, please use headphones or external speakers)
Key Highlights
- JBL 4333A professional studio monitor pair
- 3-way, 3-driver bass-reflex design
- 15-inch JBL 2231A low-frequency driver
- JBL 2420 compression driver
- JBL 2312 horn
- JBL 2308 acoustic lens
- JBL 2405 ultra-high-frequency driver
- JBL 3133A dividing network
- Switchable passive / bi-amplification capability
- 35 Hz–20 kHz frequency response, ±3 dB
- 93 dB SPL sensitivity at 1 W / 1 m
- 8-ohm nominal impedance
- 75 watts continuous sine-wave maximum power input
- 800 Hz / 8.5 kHz crossover frequencies
- 156-liter / 5.5 cu. ft. bass-reflex enclosure
- Professionally serviced and fully tested by HQaudios
- 1-Year HQaudios Warranty
Sound Character
The JBL 4333A was designed around the scale, efficiency, and dynamic capability expected from a large-format professional monitor.
The 15-inch 2231A handles the low-frequency range, while the horn-loaded 2420 compression-driver section provides strong projection through the critical mid and upper ranges. The dedicated 2405 ultra-high-frequency driver extends the system\'s high-frequency reproduction.
In a properly configured system, the 4333A can deliver substantial low-frequency scale, strong dynamic contrast, clear vocal and instrumental presence, and the direct presentation associated with classic JBL professional monitors.
HQaudios Service & TestingInspection
We inspected both JBL 4333A monitors before service, including the cabinet surfaces, 2231A low-frequency sections, 2420 compression-driver sections, 2405 ultra-high-frequency sections, crossover/L-pad control areas, rear connections, and overall operating condition.
We also inspected the major installed JBL driver assemblies and documented the component configuration of this actual pair.
Service
Our technicians addressed the cabinet-surface wear identified during inspection and cleaned and detailed the walnut-finish cabinets, blue front baffles, grilles, driver areas, and exterior hardware.
We serviced the crossover/L-pad control sections and restored proper control operation.
The installed 2231A, 2420, and 2405 assemblies were inspected during the service process.
Final Testing
After service, we tested both monitors under normal playback conditions.
The 2231A low-frequency sections were checked for stable and consistent bass output.
The 2420 compression-driver sections were checked for clear and consistent output through the horn assemblies.
The 2405 ultra-high-frequency sections were checked for normal upper-frequency output.
The front level controls were checked after service for proper adjustment and operation.
Both speakers were then evaluated together for left/right consistency, speaker-connection integrity, and overall music playback before final approval.
Cosmetic Condition
This JBL 4333A pair presents very well overall after preparation by HQaudios, with light age-related wear consistent with vintage use.
Cabinets: Walnut-finish cabinet surfaces present cleanly overall with attractive wood grain.
Front Baffles: Blue front baffles present neatly.
Driver Areas: Driver, horn, lens, and ultra-high-frequency sections present cleanly overall.
Controls: Front level controls are present and were checked during service.
Grilles: Matching dark grilles shown with the pair present well overall.
Rear Panels / Connections: Rear connection and bi-amplification switching areas present cleanly overall.
Please review all photographs carefully, as they show the actual pair being offered and form an important part of the cosmetic-condition description.
Model-Specific Components
- Low Frequency: JBL 2231A, 15-inch cone-type driver
- High Frequency: JBL 2420 compression driver
- Horn: JBL 2312
- Acoustic Lens: JBL 2308
- Ultra-High Frequency: JBL 2405
- Dividing Network: JBL 3133A
- Crossover Frequencies: 800 Hz / 8.5 kHz
- Configuration: Passive / Switchable Bi-Amplification
Factory 3-Driver Professional Studio MonitorEnclosureBass Reflex, 156 Liters / 5.5 cu. ft.Low Frequency DriverJBL 2231A, 15-inchCompression DriverJBL 2420HornJBL 2312Acoustic LensJBL 2308Ultra-High Frequency DriverJBL 2405Dividing NetworkJBL 3133AFrequency Response35 Hz–20 kHz, ±3 dBCrossover Frequencies800 Hz / 8.5 kHzNominal Impedance8 OhmsMaximum Power Input75 Watts Continuous Sine WaveBi-Amp Power Rating75 W below 800 Hz / 30 W above 800 HzSensitivity93 dB SPL at 1 W / 1 mDimensions30.625 H × 22.75 W × 20.25 D in / 781 × 578 × 514 mmNet WeightApprox. 129 lb / 59 kg per speakerConfigurationPassive / Switchable Bi-AmplificationCountry of ManufactureUnited StatesWhat\'s Included
- 1 Pair (2) JBL 4333A Studio Monitors
- 2 Matching Speaker Grilles
- WOOD STANDS: CONFIRM INCLUDED / NOT INCLUDED BEFORE PUBLISH
- 1-Year HQaudios Warranty
Only items specifically shown and stated as included are part of the sale.
Suggested Amplification
The JBL 4333A is an 8-ohm professional monitor with high sensitivity and can be driven effectively by a clean, stable amplifier appropriate for an 8-ohm load.
For conventional passive operation, the internal 3133A dividing network handles the crossover between the driver sections.
For experienced users, the system can also be configured for bi-amplification. Correct external crossover configuration, amplifier matching, gain structure, and speaker connections are essential.
Basic Use Guide
- Place each monitor securely on a stable platform capable of supporting its size and weight.
- Verify left/right speaker wiring and polarity before operation.
- Confirm the rear configuration is set correctly for passive or bi-amplified operation.
- Use amplification appropriate for the 8-ohm nominal load.
- Begin playback at a moderate level and increase volume gradually.
- Avoid sustained amplifier clipping or excessive power.
- When bi-amplifying, use the appropriate external crossover and amplifier configuration.
Trade-In Program
Have vintage audio equipment you would like to trade toward this JBL system? Contact HQaudios with the brand, model, condition, photographs, and available service information for evaluation.
Build Your Vintage System
HQaudios can help match the JBL 4333A with compatible amplification, source components, and supporting equipment. Contact us if you are building a complete vintage audio system or purchasing multiple compatible components.
Professional Packing & Freight Shipping
Each JBL 4333A weighs approximately 129 lb / 59 kg before packaging, so reinforced protection and appropriate heavy-speaker handling are essential.
Each speaker will be individually protected around the walnut cabinet surfaces, corners, front baffle, grilles, driver areas, controls, and rear connections.
Due to the size and combined weight of this pair, freight shipping, reinforced palletization, and heavy-speaker packing may be used depending on destination and carrier requirements.
1-Year HQaudios Warranty
This JBL 4333A pair is backed by our 1-Year HQaudios Seller Warranty covering qualifying functional issues under normal intended home use.
Coverage does not include misuse, improper setup, unauthorized repair or modification, physical damage, cosmetic wear, amplifier clipping, excessive power, incorrect wiring, incompatible equipment, improper bi-amplification configuration, or operation outside the intended specifications.
If you experience an operational issue after delivery, please contact HQaudios so our team can assist with diagnosis and support.
Customer Support
Please contact HQaudios if you need assistance with passive or bi-amplified operation, amplifier matching, speaker placement, connection setup, shipping, or general operation.
