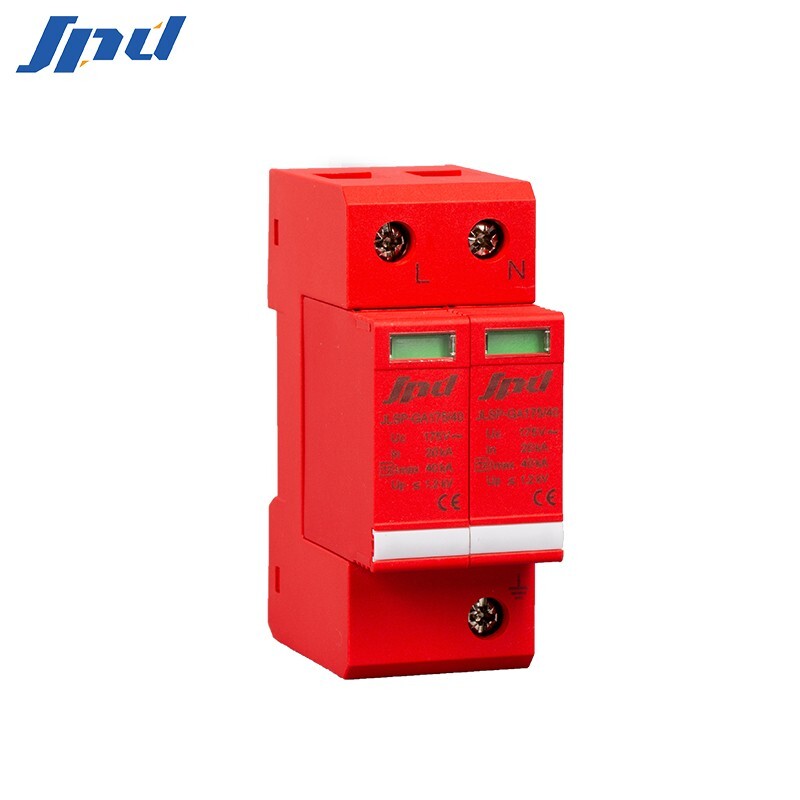

JLSP ODM 175V 40KA 2P AC SPD single phase Surge protection device:
$24.80
ModelJLSP-GA175/40/2PIEC ClassClass IIAC Network Un(50/60Hz)(V)120 (TN-S)Max.continuous operating voltage Uc (V)175Nominal discharge current (8/20μs) In (kA)20Max. discharge current (8/20μs) Imax (kA)40Voltage protection level Up (kV)≤1.2Max. backup fuse(A)100(gG)Response time tA≤25nsCapacity of withstand short circuit25kAOperating temperature-40℃~+85℃Relative area25mm2multi-strand cordDimensions (1P) (W×L×H)(mm)18×90×62MountingDIN Rail 35mmProtection ratingIP 20Housing materialPBTFlame retardant ratingUL94 V-0Capacity of remote signaling contact250VAC/0.5A 30VDC/3AMax.cross-sectional area of wire for remote signaling contact1.5mm²multi-strand cord / single cordStatus indicatorNormal:green / malfunction:redStandards complianceEN61643-11,IEC61643-11,GB/T 18802.11
