Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 17.375\" x 22.75\" - Overall (H x W): 22.125\" x 24.25\" - Hose Locations (In x Out): Pass x Driver - Hose Fittings (In x Out): 1.5\" x 1.75\" - TOC: 1/8-27NPTPlease click on the \"Read more\" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

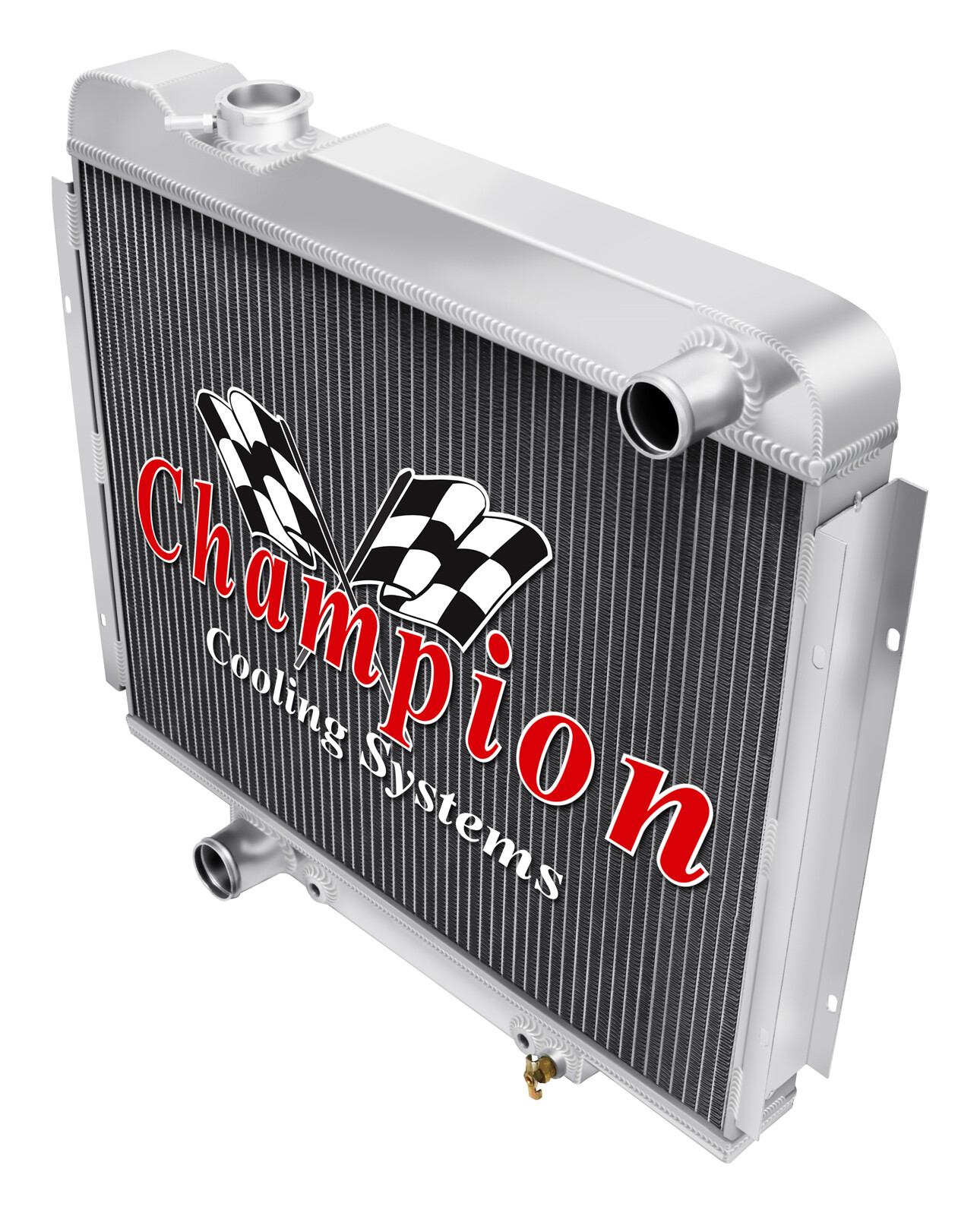

PART INFORMATION Shipping Payment Policies Contact Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #MC65GL This radiator is designed for either a 5.8L(352ci) V8, 6.4L(390ci) V8 or a 7.0(427ci) V8 engine. Features
- Higher density core: cooling rows are spaced 3/8\" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
- Aluminum dissipates heat more efficiently than copper or brass.
- 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
- Lighter weight.
- Outperforms other 2, 3 and 4 row copper radiators.
- High performance appearance.
- You get \"BIG BLOCK COOLING\" and \"PEACE OF MIND\" when you drive your car with a Champion Cooling Systems radiator.
- You could easily spend $400 - $1,000 more for a radiator of similar quality.
Specifications
- Down Flow Or Cross Flow Type: Down Flow
- Mounting Type: Bracket
- Tank Material: Aluminum
- Core Material: Aluminum
- Overall Height: 22 1/8
- Overall Width: 24 1/4
- Core Height: 17 3/8
- Core Width: 22 3/4
- Inlet Location: Passenger
- Inlet Diameter: 1 1/2
- Outlet Location: Driver
- Outlet Diameter: 1 3/4
- Core Row Quantity: 4 Row
- Transmission Oil Cooler Fitting Type: 1/8-27NPT
- Internal Transmission Oil Cooler: Yes
- Filler Neck Attached: Yes
- Core Thickness: 2 3/4
- Core Tube Width: 0.56
- Tank Width: 3.125
This package includes a 4 Row All Aluminum Radiator. Shipping Shipping Our radiators are hand packed in the factory box and Shipped via FedEx. Payment Guarantee Policies Contact Us
