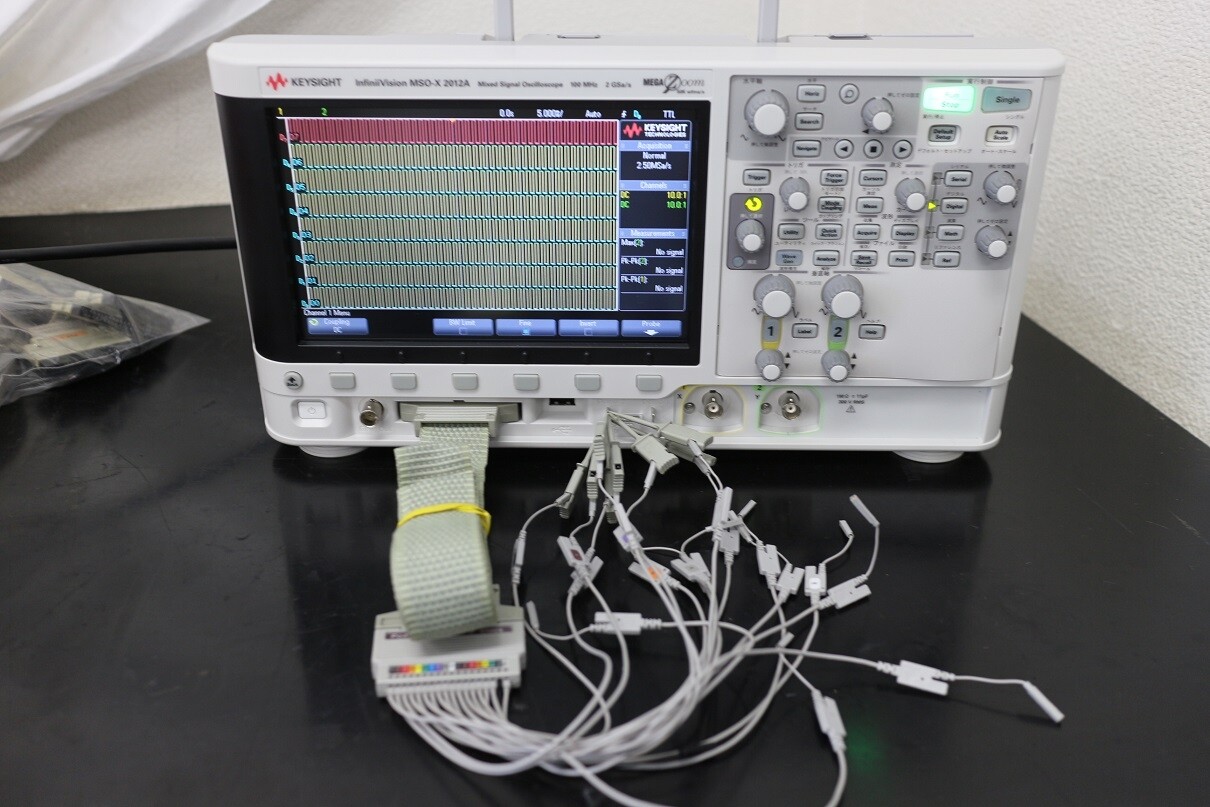

Keysight MSOX2012A DC-100MHz 2ch
InfiniVision Mixed Oscilloscope +FG
Description
100MHz Oscilloscope +20MHz Function Generator + 8ch Logic analyzer
DC-100MHz 2ch 2Gs/s 1MW/ch 8ch Logic Input
Input BNC(f) 1Mohms 11pF 1mV-5V/div 8bit 12bit(avegage) 16div Max135V
Sweep 50s-5ns/div acc25ppm DelaySweep Pre/Post
Acquisition Trigger modes:Normal,Auto,Single,Force
Coupling: AC,DC,Noize reject,LF reject,HF reject
Types: Edge,Edge then Edge(Btrig),Pulse time,Nth edge burst,I**2C,SPI,CAN,LIN,RS232C UART
Cursol X,Y,T
Wavemeasure Snapshot all,maximum,minimum,peak-to-peak, top,base,amplitude, overshoot, preshoot, average- N cycles, average-full screen, DC RMS- N cycles, DC RMS- full screen, AC RMS- N cycles, AC RMS- full screen (std dev)
FFT Windows: Hanning,flat top,rectangular; Blackman-Harris 64 kpts resolution
LOGIC 8ch 1Gs/s 500KW/ch Thres TTL,CMOS,ECL,User define
Function Generator
Sine,Square,Pulse,Triangle,Ramp,Noise, DC
0.1Hz-20.00MHz 20.0mV-5.00Vp-p(Open) 10.0mV-2.50Vp-p(50ohms)
DC Offset +-2.5V (1.25V 50ohms) Trigger OUTput
Modulation AM,FM,FSK (Sin,Square,Ramp 1Hz-20KHz)
Digital Voltmeter 3digits Frequency Counter 5.5digits
USB 2.0
LCD 8.5inch Color 64step Intensity 200kwaveform/s
AC100-240V 100W 381mm (15in)x204mm (8in)x142 mm (5.6 in) 3.9Kg
OPT:BDL
Accessory
Logic Probe 16ch
