Product highlights
1\" LTS (Linear Travel Suspension) titanium diaphragm tweeter with Tractrix® hornfour 5-1/4\" Cerametallic™ cone woofers with rigid and lightweight voice coilsfrequency response: 58-25,000 Hz (±3dB)sensitivity: 97 dBpower handling: up to 150 watts RMS (600 watts peak)impedance: 8 ohms compatiblebass-reflex design with rear-firing Tractrix portmagnetically attached grille for a clean, streamlined lookebony vinyl finish with scratch-resistant design5-way binding post speaker terminals31-3/16\"W x 6-7/8\"H x 14-7/16\"Dweight: 34 lbs.warranty: 5 yearsWhat\'s in the box
- Center channel loudspeaker
- Grille (installed)
- 4 Self-adhesive rubber feet
- User Manual
- Important Safety Instructions
- Warranty Information
About this item
Written by Crutchfield\'s Kramer Crane
Room-filling sound fromKlipsch

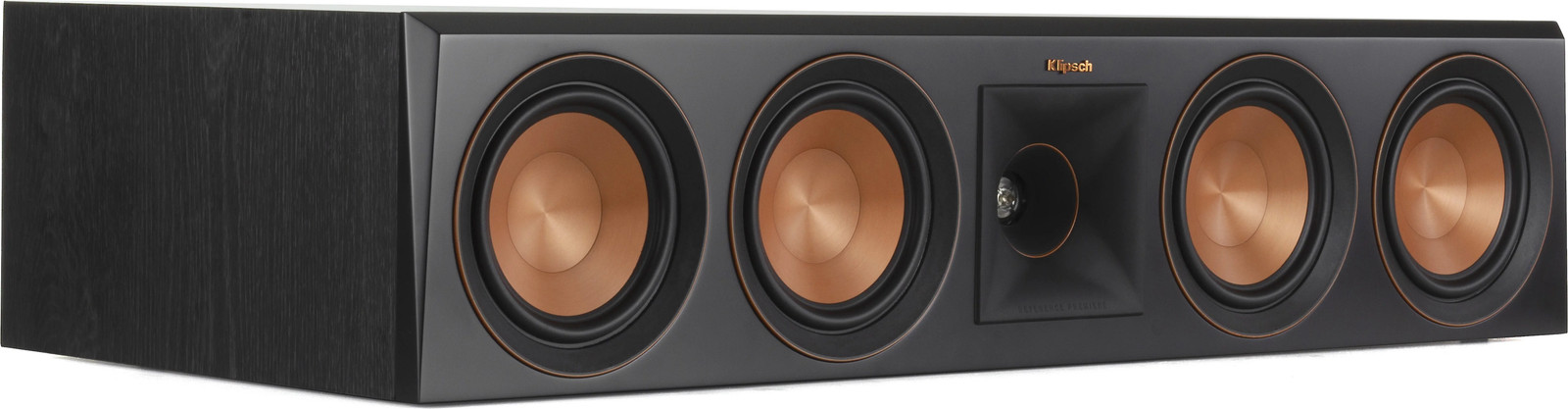

Building a Klipsch Reference Premiere home theater system? TheRP-504C is the largest and most powerful center channel in the series — perfect for large rooms where you want to be drawn directly into the action unfolding on the screen. It featuresfour 5-1/4" spun-copper woofers for punchy bass and dynamic midrange, andKlipsch\'s signature 1" horn-loaded tweeter for exceptionallyaccurate dialogue and center-stage sound effects.
Use the RP-504C center channel as part of a high-impact Klipsch home theater system.
Hybrid horn technology for dynamic performance
Horn technology is one of Klipsch\'s long-standing hallmarks. Flared openings in the speaker cabinet project sound waves toward your listening area and prevent them from simply spilling out in all directions. This design reduces reflections that can color the sound, and boosts dynamics and efficiency for powerful, "front row" sound that remains crystal-clear at all volume levels.
Klipsch\'s Tractrix® horn features a circular throat around an advanced titanium diaphragm tweeter that transitions into a square 90º x 90º mouth. This unique shape provides a cleaner, more efficient transition of sound waves into your listening space. The result is a wide listening "sweet spot" withprecise placement of instruments and vocals.
A horn thatenhances bass, too
Take a look at the back of the RP-504Cand you\'ll find thatinstead of the conventional round port tube found on many speakers, Klipsch uses a Tractrix horn-shaped opening for smoother, more efficient airflow in and out of the cabinet. The resulting decrease in air turbulence makes for cleaner, more powerful bass with reduced port noise and low-frequency distortion.
Because this speaker is rear-ported, I recommend pulling it away from your wall to give itroom to "breathe."
