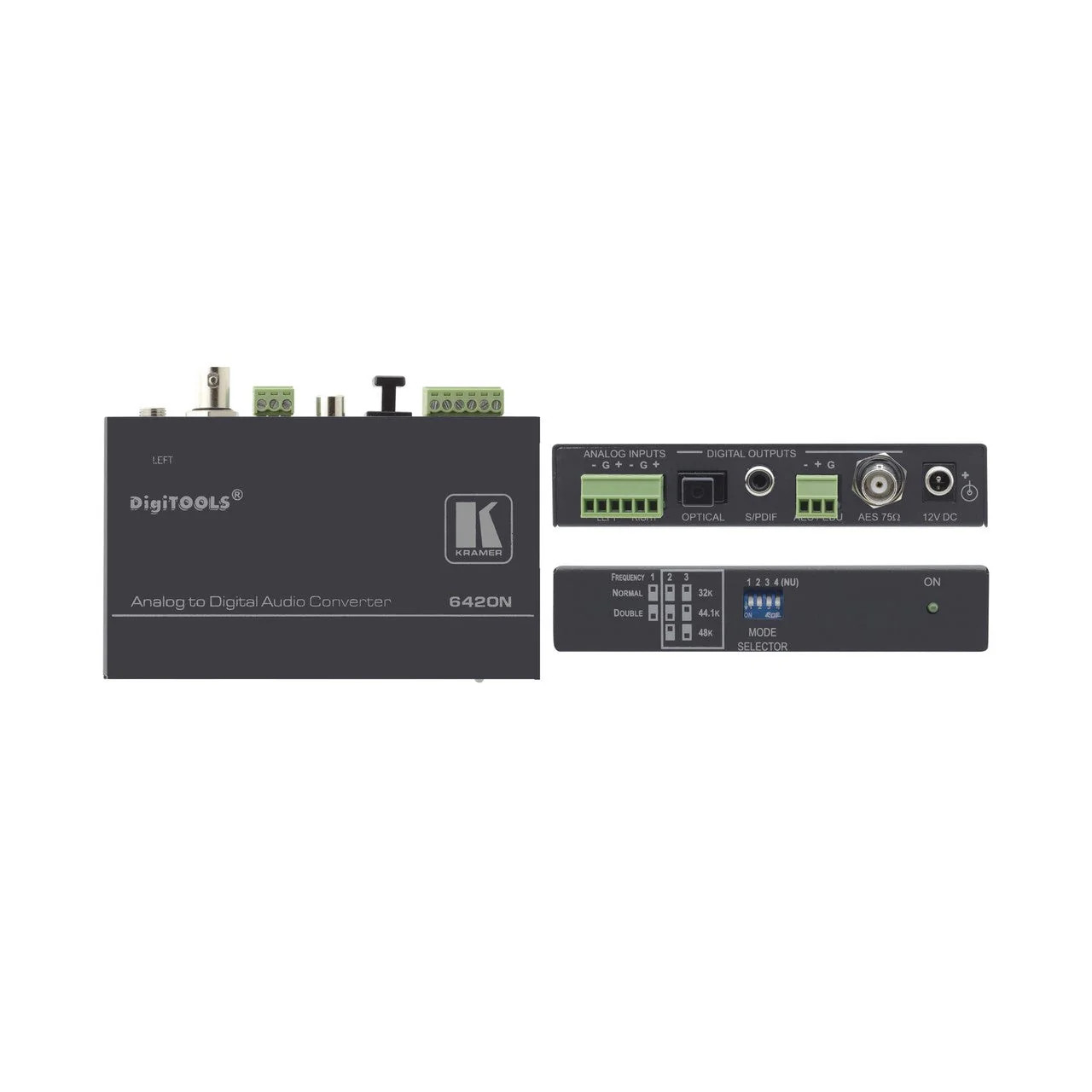

Kramer 6420N Balanced Stereo Audio to Digital Audio Format Converter:
$986.00
Kramer 6420N Balanced Stereo Audio to Digital Audio Format Converter The 6420N is a high-performance format converter for balanced audio signals. The unit converts two channels of balanced audio signals to AES/EBU, AES-3id, S/PDIF and TOSLINK optical digital outputs simultaneously. Key Features - Standards - AES/EBU, AES-3id, S/PDIF, TOSLINK optical
- Sampling - 32, 44.1, 48, & 96kHz (selectable)
- Professional or Consumer Bit Rate Selection
- Left & Right Gain Conversion Control - 0dB, - 12dB, - 16dB, - 20dB or - 24dB
- Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter
Technical Specifications INPUTS
1 balanced stereo audio line in (10k) on detachable terminal blocks
OUTPUTS
4 digital audio outputs: AES 75 OHMS
AES/EBU
S/PDIF
TosLink Optical
SAMPLE RATE CONVERSION
32kHz, 44.1kHz, 48kHz, 96kHz
MAX. INPUT GAIN
-12dB: 3.1Vrms
- 24dB: 11.5Vrms
CONVERSION GAIN
-12dB, - 16dB, - 20dB,-24dB
THD+N
Better than - 92dB
IDLE CHANNEL NOISE
Better than 99dBFS CCIR-RMS
SIGNAL-TO NOISE RATIO
Better than 98dBFS CCIR-RMS
CONTROLS
4 sample rate selector switches, system bit selector switch, 8 gain switches, ON LED
COUPLING
AC
POWER CONSUMPTION
12V DC/1.25A, 150mA
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
INCLUDED ACCESSORIES
Power supply, mounting bracket
OPTIONAL
19\" rack adapters
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72\" x 2.81\" x 0.96\" ) W, D, H
PRODUCT WEIGHT
0.1kg (0.3lbs) approx.
SHIPPING DIMENSION
23.20cm x 12.00cm x 8.90cm (9.13\" x 4.72\" x 3.50\" ) W, D, H
SHIPPING WEIGHT
0.5kg (1.1lbs) approx.
|
