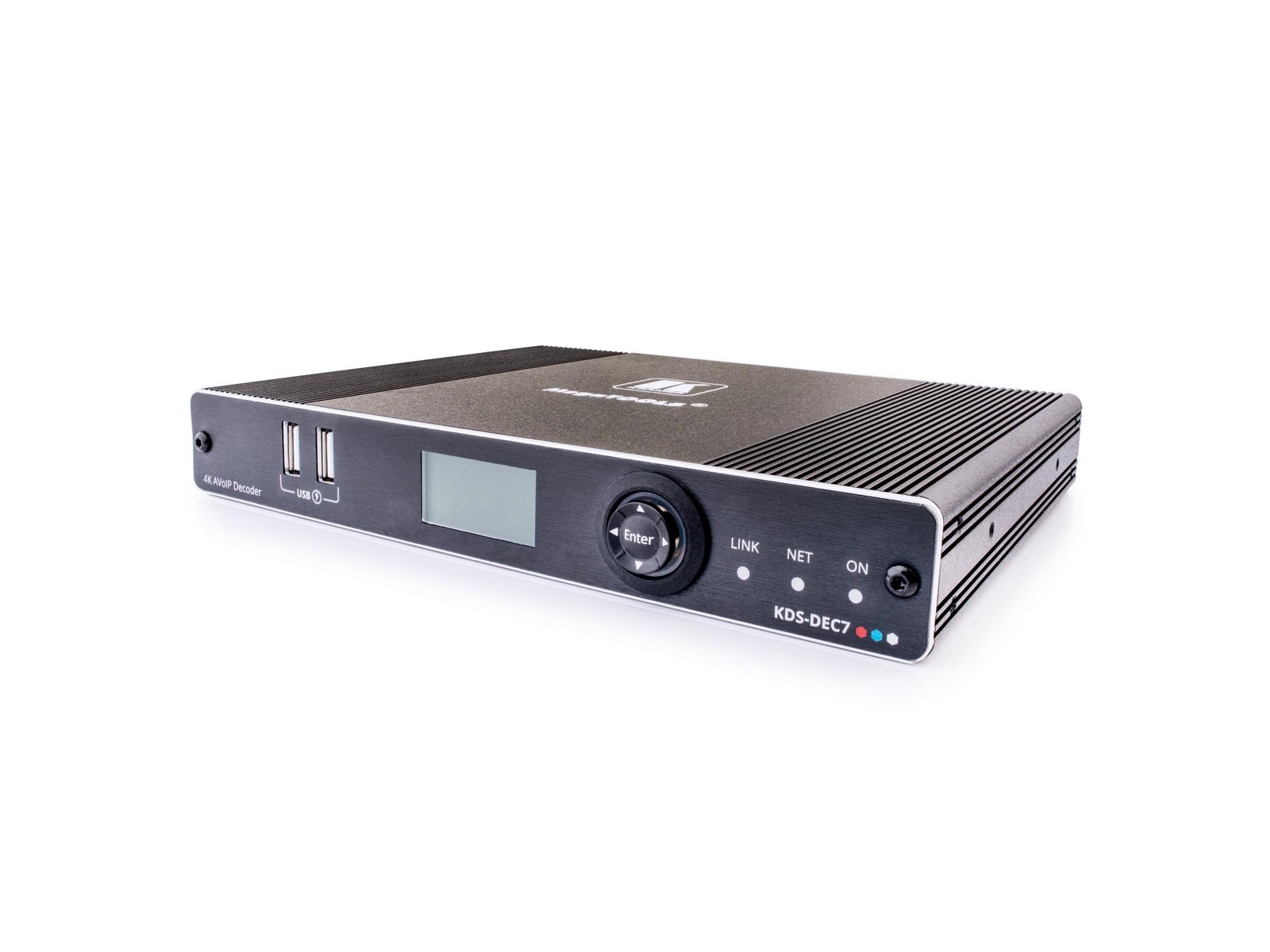

Kramer KDS-DEC7 High-Performance/Highly-Scalable AVoIP Decoder for 4K60 HDR10 over 1G Network Manufacturer:Kramer SKU:KDS-DEC7 Condition:New Warranty:3 Years

KDS-DEC7 decoder is an advanced receiver for streaming 4K at 60Hz (4:2:0) video signals via Ethernet over copper cable. It decodes streams over an IP network to HDMI output, and transmit the USB, IR, RS232, or CEC signal over IP network.

Features:

Outstanding end-user experience

• Rich set of inputs and interfaces
• Easy-to-use KM/KVM - Searchable OSD Menu for KM and fully configurable KVM roaming
• Large scale video wall - up to 16x16
• Instantaneous switching time - 1 second

Ideal for large-scale deployments

• Highly scalable - 999 channels build in support
• State of the art management device
• Rich set of management capabilities - Standard P3K Open API , LCD screen for configuration

Robust security

• Enterprise IT-grade security - 802.1x and HTTPS/TLS
• Security certification - OWASP Top 10 certificate
• Separate ETH ports for optimal security and experience
• New HW architecture that enables robust FW update

Simple planning and rollout:

• Cost-effective from day one
• Full product range for any site, any application
• Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, etc.

PoE Support

• Using PoE switch - up to 13W consumption

Alternative sources/destinations

• HDMI Loop-Through on Encoder and HDMI Input on Decoder

Analog Audio

• Embedding and De-embedding

Control gateway

• Through P3K control/communicate with IR, RS232, or CEC to the connected devices
• 1 HDMI: On a female HDMI connector

OUTPUTS

• 1 HDMI: On a female HDMI connector

PORTS

• 2 Ethernets: On R-J45 connectors
• 1 Balanced Audio: On a 5-pin terminal block connector
• 1 RS-232: On a 3-pin terminal block connector
• 1 IR: On a 3.5mm TRS connector
• 2 USB: On USB-A connectors

VIDEO

• Compression Standard: JPEG based, private stream
• Max Resolution: 4K60 4:2:0 or 4K30 4:4:4
• HDR 10: Up to 4K30 4:2:2 12 bit

USER INTERFACE

• Indicators: LINK, NET and ON LEDs, front panel LCD Display
• Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

POWER

• PoE on LAN(PoE) port
• 24V DC
• Consumption: 6W

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
• Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
• Humidity: 10% to 90%, non-condensing

GENERAL

• Product Dimensions: 18.9cm x 14.5cm x 2.76cm (7.4\" x 5.7\" x 1\") W, D, H
• Shipping Dimensions: 31.2cm x 17.9cm x 7.6cm (12.2\" x 7.04\" x 2.9\") W, D, H
• Product Weight: 0.67kg (1.4lbs) approx
• Shipping Weight: 0.93kg (2.05lbs) approx

PRODUCT DIMENSIONS

• 18.90cm x 14.50cm x 2.76cm (7.44\" x 5.71\" x 1.09\" ) W, D, H

PRODUCT WEIGHT

• 0.7kg (1.5lbs) approx.

SHIPPING DIMENSIONS

• 31.20cm x 17.90cm x 7.60cm (12.28\" x 7.05\" x 2.99\" ) W, D, H

SHIPPING WEIGHT

• 0.9kg (2.1lbs) approx.
