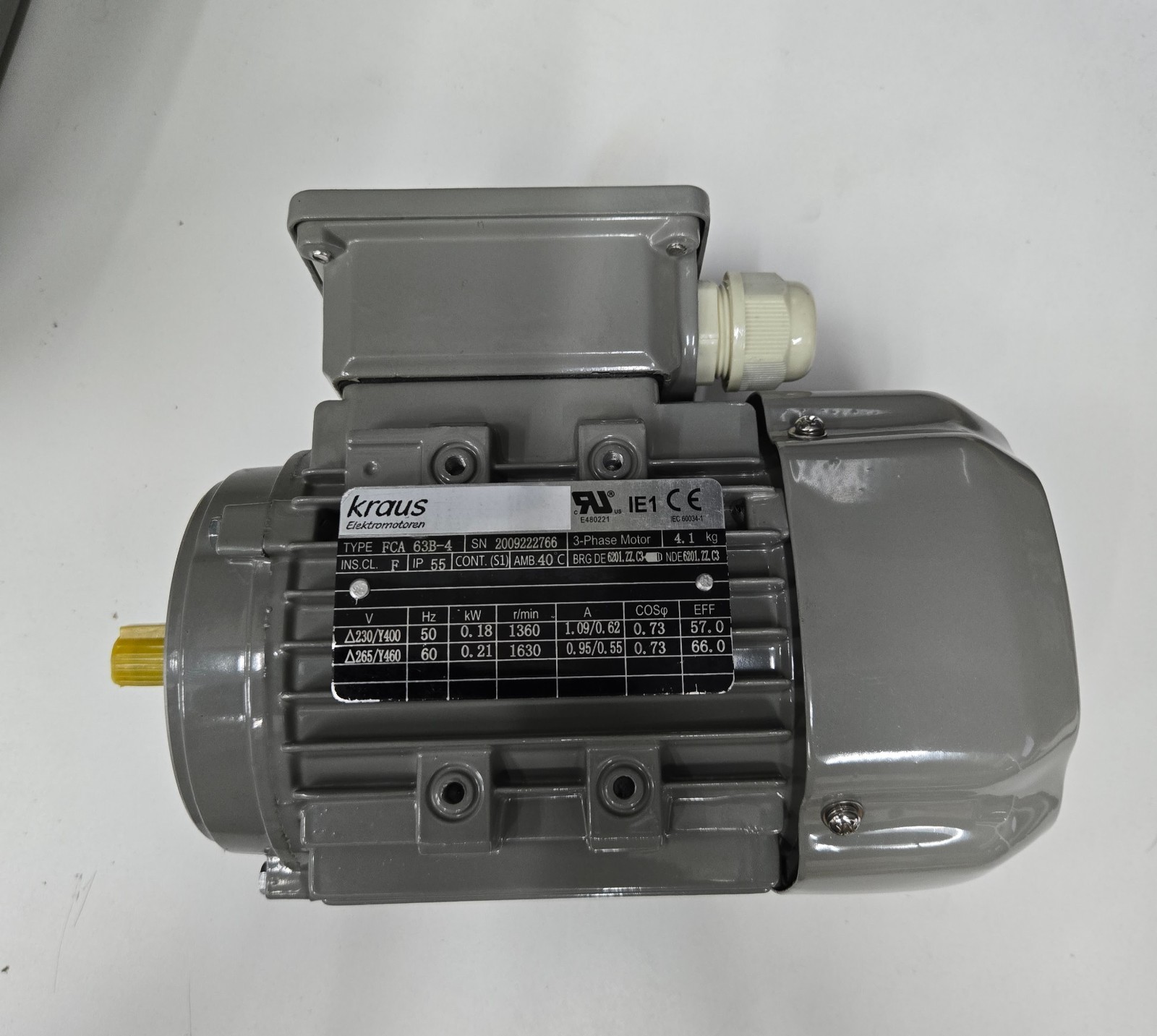

For sale is a Kraus Elektromotoren FCA 63B-4 three-phase industrial electric motor featuring a compact, heavy-duty design suitable for a variety of industrial, commercial, and mechanical applications.
This motor features a durable aluminum housing, integrated terminal connection box, keyed output shaft, and flange mounting configuration.
Manufacturer: Kraus Elektromotoren
Model: FCA 63B-4
Serial Number: 2009222766
Motor Type: Three-Phase AC Induction Motor
Efficiency Class: IE1
Technical Specifications
50 Hz Operation
- Voltage: 230V Delta / 400V Star
- Power Output: 0.18 kW (approximately 0.24 HP)
- Rated Speed: 1360 RPM
- Rated Current: 1.09A / 0.62A
- Power Factor (COSφ): 0.73
- Efficiency: 57.0%
60 Hz Operation
- Voltage: 265V Delta / 460V Star
- Power Output: 0.21 kW (approximately 0.28 HP)
- Rated Speed: 1630 RPM
- Rated Current: 0.95A / 0.55A
- Power Factor (COSφ): 0.73
- Efficiency: 66.0%
Additional Specifications
- Frame Size: IEC 63
- Motor Poles: 4
- Insulation Class: F
- Protection Rating: IP55
- Duty Rating: S1 – Continuous Operation
- Maximum Ambient Temperature: 40°C
- Motor Weight: 4.1 kg (approximately 9 lbs)
- Mounting Configuration: Flange Mount with Four Mounting Holes
- Shaft Configuration: Keyed Output Shaft
- Terminal Box: Top-Mounted with Cable Gland
- Housing: Finned Aluminum Construction
Features & Benefits
Industrial-Grade Construction: Designed for demanding applications requiring reliable, continuous-duty operation.
Dual-Frequency Compatibility: Rated for both 50 Hz and 60 Hz electrical systems, with voltage and performance specifications clearly identified on the manufacturer's nameplate.
IP55 Protection: Enclosure provides protection against dust ingress and water jets, making it suitable for many industrial environments.
Continuous-Duty Design: S1 duty rating allows operation under a constant load within the manufacturer's specified operating conditions.
Compact Flange-Mount Design: Four-hole mounting flange allows integration with compatible industrial machinery and equipment.
Integrated Cooling System: External cooling fins and rear fan housing assist with heat dissipation during operation.
Versatile Applications: Suitable for compatible pumps, fans, conveyors, gear reducers, automated machinery, packaging equipment, and other industrial equipment.
