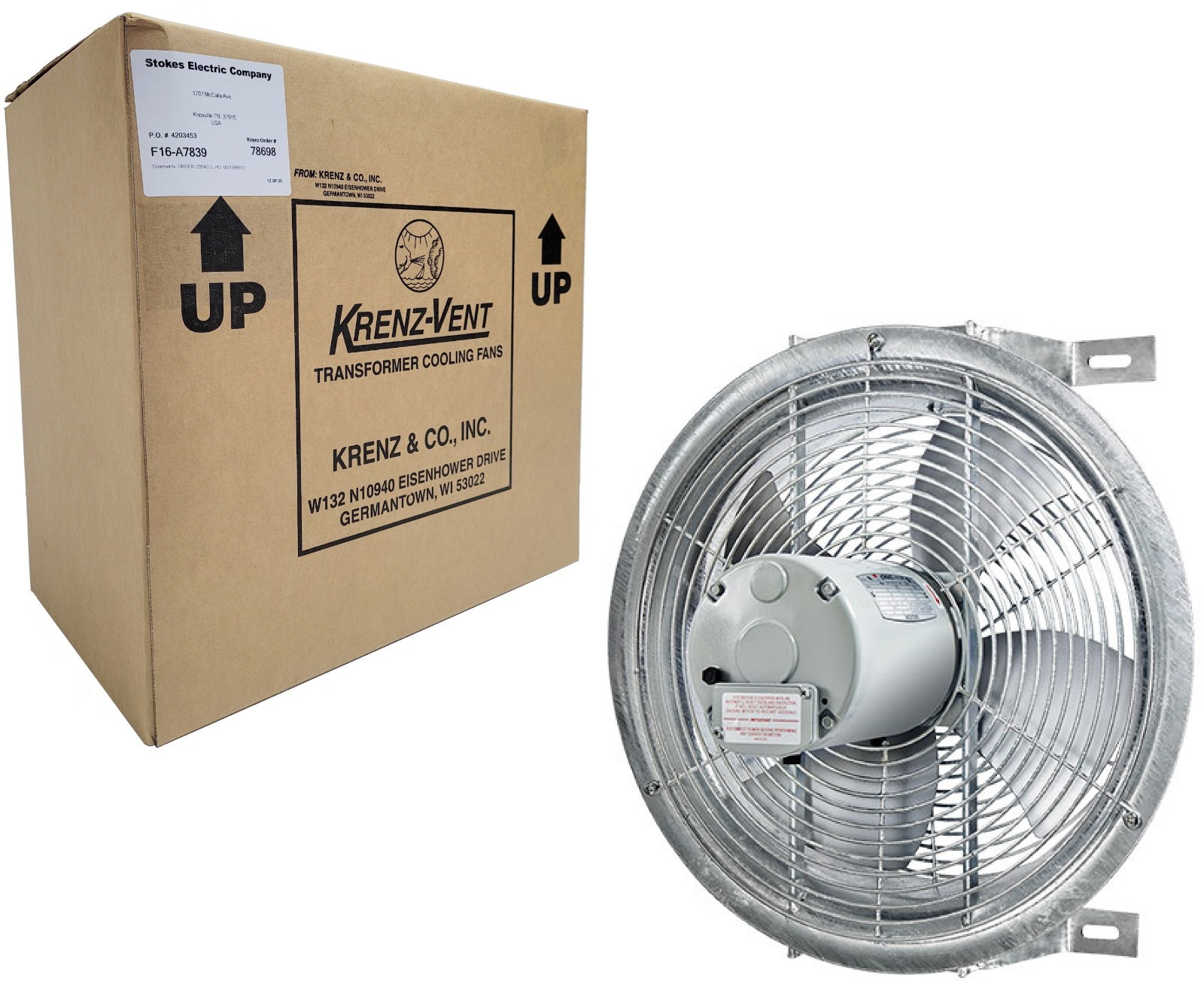

Krenz-Vent F16-A7839 Transformer Cooling Fan
Includes Motor & Mounting Hardware | Brand New Sealed
Condition: New Sealed – A brand-new, unused, and undamaged industrial cooling fan in original manufacturer packaging. This 16-inch high-airflow unit utilizes an efficiently designed venturi-type housing, ideal for directed airflow over deep banks of transformer radiators.
Electrical & Performance Ratings Fan Model Number F16-A7839 Motor Model Number A4P17NZ107B (Cat#: 10005721) Airflow Volume 4,500 CFM (Actual Measured) Horsepower (HP) 1/4 HP Speed (RPM) 1,750 RPM @ 60 Hz Voltage 208 - 230 V (1 Phase) Full Load Amps (FLA) 1.7 A (Fan Amps: 1.48A - 1.49A) Power Consumption ~308 Watts Sound Level 68.2 dBA (IEEE C57.12.90-1999 Procedure at 2m) Physical Dimensions & Construction
- Width: 20.5 Inches
- Height: 19.0 Inches
- Depth / Thickness: 15.0 Inches
- Blade Assembly: 16-inch diameter, one-piece 4-wing durable cast aluminum.
- Housing & Guards: Hot-dip galvanized steel venturi housing with OSHA-compliant guard spacing. Finished with a four-step proprietary coating system (ANSI 70 Gray final coat).
- Motor Details: Totally Enclosed Non-Ventilated (TENV), IP54 Enclosure, NEMA 48 Frame. Features a 0.625" diameter 416 stainless steel shaft.
- Bearings: Permanently lubricated, double-sealed ball bearings.
- Thermal Ratings: Class F Insulation with Class B Temperature Rise. Max Ambient Temp: 55°C (131°F). Equipped with automatic-reset overload protection.
Shipping & Logistics Information Net Item Weight: 40.0 lbs Country of Origin: United States Wiring Connection: Integral conduit box with 1/2" NPT connection hole. Clockwise rotation facing lead end.
