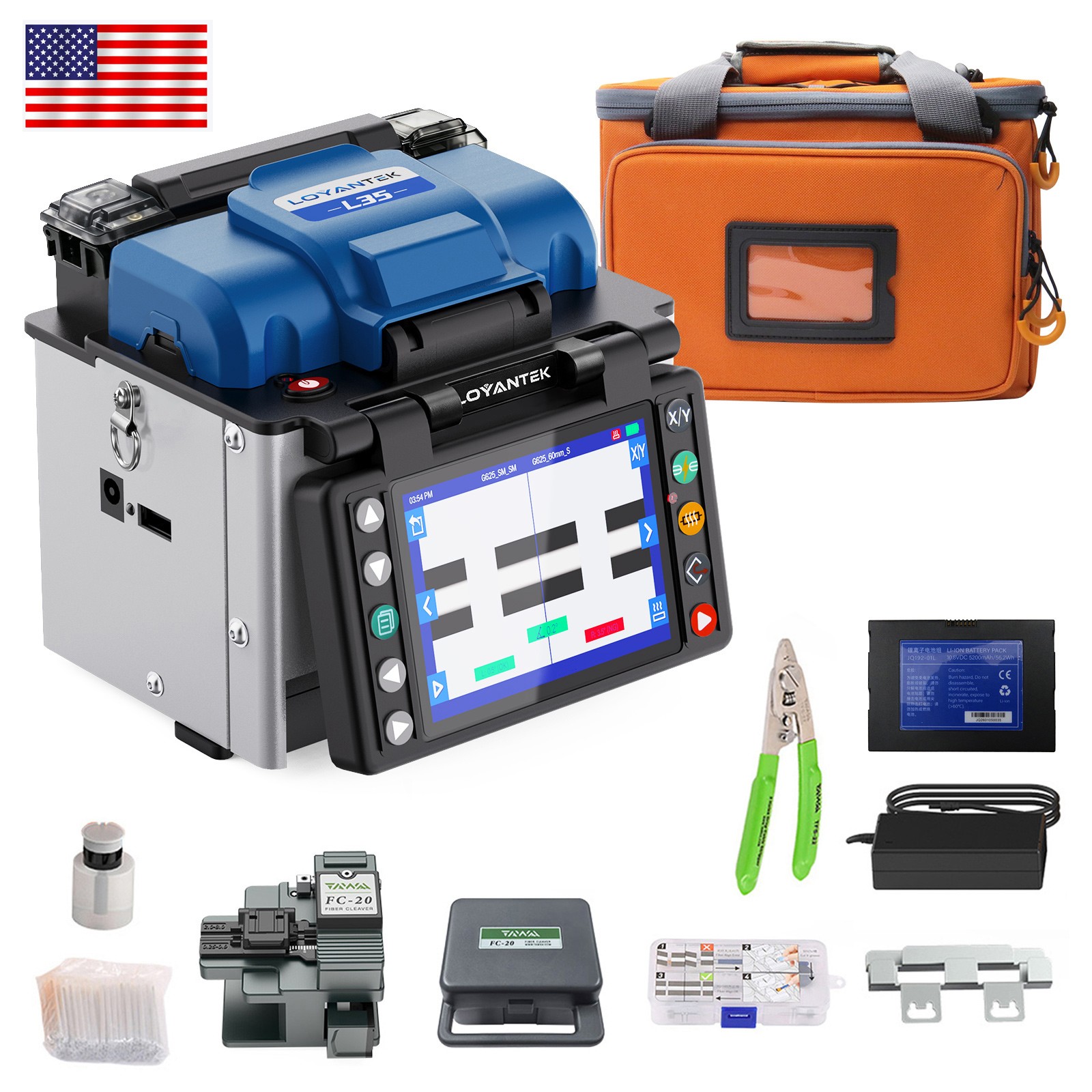

Equipped with core alignment tech, 4 high-precision motors, 3-in-1 fiber holder, our fiber fusion splicer ensures fast splicing in just 8s and quick heating in 18s. With fusion loss as low as 0.01dB, it delivers clear and stable connections, suitable for a wide range of fiber optic projects.
3-in-1 fiber holder fits various fibers; electrodes can be replaced without tools; optional operating platform connects stripping, cleaving, splicing and heat shrinking in one workflow
Featuring a 3.5-inch color high resolution with a user-friendly interface, this fiber optic fusion splicer offers multiple display modes to meet various needs, making it easy to monitor every detail throughout the splicing process.
Built-in 5200mAh large-capacity lithium battery, supporting up to 260 cycles of continuous splicing + heating per full charge，and electrodes support up to 5000 service cycles
Works with 3.0mm jump fiber, flat fiber, pigtail & bare fiber, fits 0.25-3.0mm indoor/outdoor cables; 14 built-in system languages for global field work
Thoughtful features such as a Dual-Layer cooling rack, protective case, automatic, and 3 in 1 fiber holder enhance portability and safety, elevating the overall user experience and reflecting professional-grade quality.
**Warranty Repair**:
The complete unit is covered under standard warranty service. Free repair is provided for intrinsic quality failures within the warranty period. Repairs for man‑made damage are available at the buyer’s expense, including costs for spare parts, labor and logistics.
**30‑day Quality Return upon Goods Receipt**:
Within 30 calendar days from the date of goods receipt, our company accepts returns for fusion splicers with non‑human‑caused product quality defects under normal operating conditions.
**Exclusions**:
Failures or damages resulting from drop impact, water ingress and moisture, external force damage, unauthorized disassembly or modification, operation not in accordance with the user manual, harsh working environment, normal consumable wear‑and‑tear or other man‑made/external factors are not covered under the 30‑day return policy.
every unit is fully calibrated before shipment, delivering consistent, low-loss splicing performance comparable to mainstream well-known fusion splicers.
Splice Method :
Active Clad-Alignment
Applicable Fibers:
SM(ITU-T G.652&G.657)/ MM(ITU-T G.651)/ DS(ITU-T G.653)/ NZDS(ITU-T G.655)
Compatible Fiber/Cable :
0.25~3.0 mm /indoor flat cable
Fiber Holder:
Replaceable
Fiber Diameter:
Cladding: 80-150um, Coating: 100~1000um
Fiber Cleave Length:
8~16 mm
Splice Mode:
Max 128 modes
Typical Splice Loss:
SM: 0.03dB/ MM: 0.01dB/ DS: 0.04dB/ NZDS: 0.04dB /G.657: 0.03dB
Return Loss:
>>60dB
Splicing Time:
SM Quick mode :8 sec/SM Average: 10 Sec
Estimated Splice Loss :
Available
Heating Time:
Quick mode 18 sec.(SM G652 250um 40mm Sleeve) adjustable
Protection Sleeve Length:
20mm,30mm,40mm, 50mm, 60mm
Heat Programs:
Max32 modes
Battery:
5200mAh battery capacity, Typical 260 Cycles (Splice&Heat) percharge
Electrode Life:
5000 arcs(replaceable)
Auto-start:
Splice /Heating
Automatic Fiber:
/
dentification:
Automatic arc calibration by air pressure and temperature
Results Storage:
The last 10,000 splice records and 2,000 result images
Tension Test:
1.96~2.25N
Operating Condition:
Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition:
0~95% relative humidity, -20~60°C
Display:
3.5" color high resolution (800 x 480) display
Fiber Magnification:
X, Y, XY, X/Y:320X Magnification
Power Supply:
AC 100-240V, DC 9-14V
Terminal:
USB2.0
Weight:
1.42kg without battery/1.72kg with battery
Size:
125Hx 105W x113D mm
