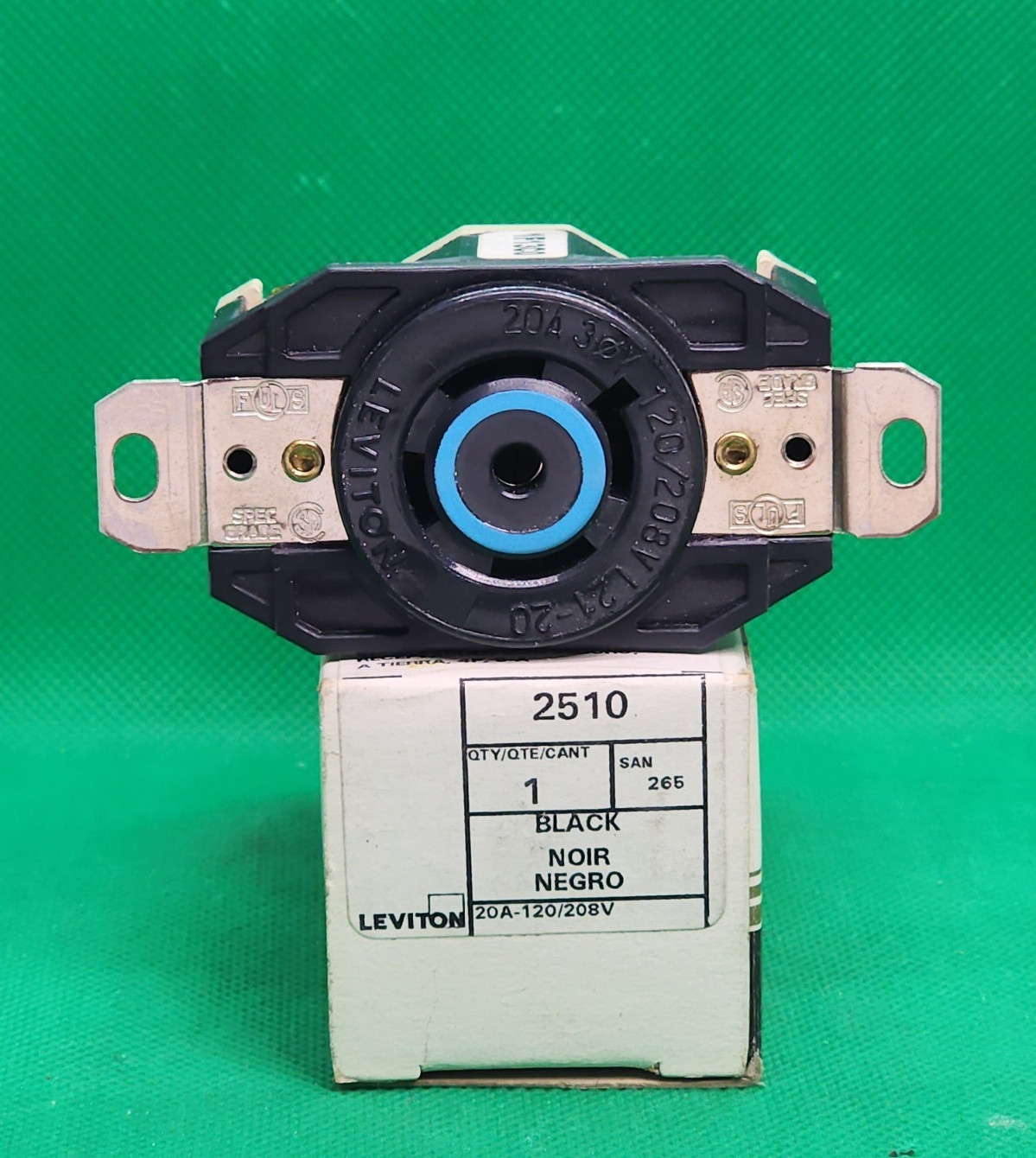

LEVITON 2510 LOCKING RECEPTACLE [FC2-2] For Sale

The Leviton 2510 is an industrial-grade, heavy-duty NEMA L21-20R flush-mounting locking receptacle designed to deliver secure, twist-lock power connections in harsh industrial and corrosive environments. Operating on a 3-Phase WYE system, it provides a continuous electrical supply rated at 20 Amps and 120/208 Volts AC.Electrical Specifications

• Amperage: 20 A
• Voltage: 120/208 VAC (3-Phase WYE)
• NEMA Configuration: L21-20R (Locking)
• Poles & Wires: 4-Pole, 5-Wire
• AC Horsepower Rating: 2 HP at rated voltage
• Dielectric Voltage: Withstands 2000V per UL 498 Standards
• Current Limiting: Full rated current
• Temperature Rise: Maximum 30°C after 250 cycles of overload at 200% rated current

Material & Construction

• Body, Base & Face Material: Impact-resistant, high-abuse Nylon
• Cover Material: Valox 357 / Polybutylene Terephthalate (PBT)
• Line Contacts: 0.040-inch thick brass for optimal conductivity and physical retention
• Mounting Yoke/Strap: 0.050-inch thick nickel-plated brass for superior grounding and corrosion resistance
• Color: Black (Note: The isolated ground variant, 2510-IG, features an orange housing)

Mechanical & Wiring Terminals

• Terminal Accommodation: Accepts 14 AWG to 8 AWG solid or stranded copper wire
• Termination Type: Back and side-wired with heavy-duty screw terminals
• Terminal Identification: Permanently marked on the device (Brass = Hot, White = Neutral, Green = Ground)
• Screw Hardware: Brass 10-32 terminal screws; Brass 8-32 grounding screw
• Terminal Torque Range: 14–18 in-lbs
• Physical Dimensions: 3.63" H x 1.69" W x 1.31" D

Environmental & Standards Compliance

• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Flammability Rating: Rated V-0 or V-2 per UL 94 standards
• Standards & Certifications:
• UL Listed (UL 498, File E13399)
• UL Federal Specification (W-C-596)
• CSA Certified (C22.2 No. 42, File LR-406)
• NOM Certified (057)
• NEMA Standards compliance (WD-1 & WD-6)
• ANSI Standards compliance (C-73)

• We power items up (if applicable) and test for basic functionality.
• We do not extensively test most items.
• This item may or may not be in original packaging.

* New, Old Stock in OEM Packaging. As Pictured.
