LIFTMASTERM

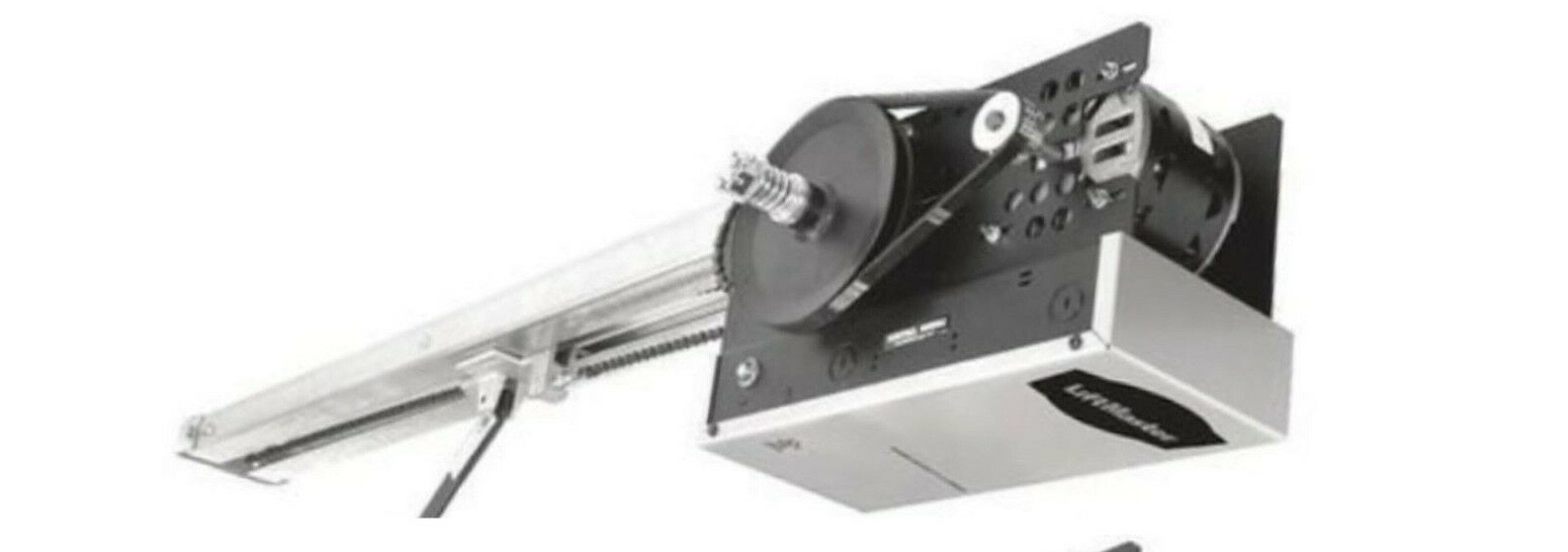

MT5011U
Medium-Duty Trolley Operator Without Rail
For A New Look And Feel , Get The All New For 2022 Model MT5011U G-14
INCLUDES
021033-Button Station
·Included with LiftMaster Medium-Duty Commercial Operators.
·OPEN/CLOSE/STOP allows complete control of the door.
. NO RAIL OR CHAIN INCLUDED
CPS-UCommercial Photo Eyes
·Standard photo-eye included with Logic 5.0 and Medium-Duty Commercial Operators.
·Upgrade to the CPS-UN4, CPS-OPEN4 or CPS-RPEN4 for additional features.
·Primary monitored entrapment protection with NEMA 1 enclosure.
Key Highlights
·For use on standard-lift sectional overhead doors with mid-range duty-cycle requirements.
·Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day.
·Suspends from ceiling directly attaches and controls a sectional door.
·Trolley with disconnect disengages operator for manual lifting in an emergency.
·Max Height 14 Feet
FEATURES
Single Button Control
Single button control provides an additional input for single-button control functionality. Required for installation of any external radio receiver.
Auxiliary Limit Switches
Auxiliary limit switches provide additional limit switches with dry form C contacts at the open and closed door positions to control lights, heaters and dock levelers.
Interlock Switch
Interlock switch disables the operator control circuit when door is locked, preventing damage to the door and operator.
Security+®
Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.
Safety Standards
Meets UL 325 Safety Standards.
Commercial Safety Sensors
Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
Timer to Close
Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.
Ships and sold by Ace Garage Door LLC.
