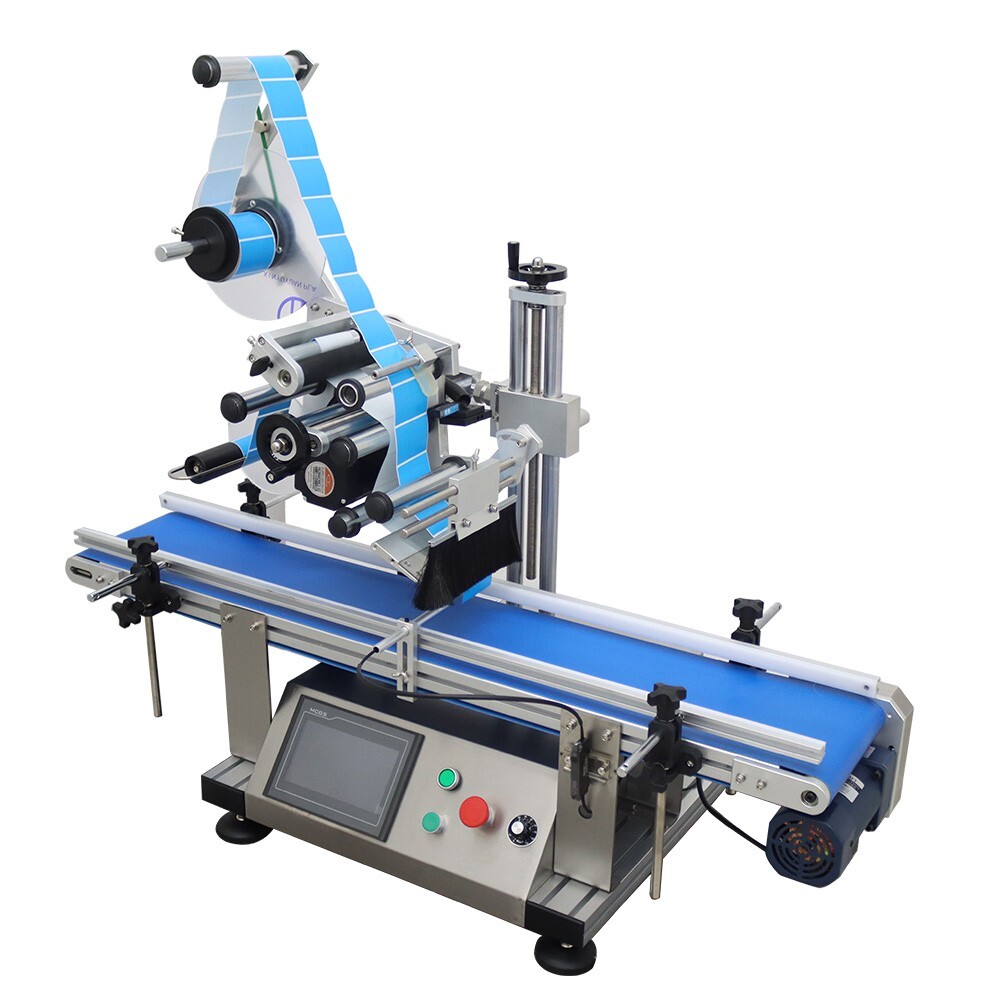

This machine is intelligent, high pass rate, suitable for labeling of cosmetics, beverage, medicine, food, department stores and other industries.
The design of this machine is novel and unique, and the operation and adjustment are very convenient. The operator only needs to place the item on the conveyor belt, and when the item needs to be labeled moves forward, the cursor detects the item and automatically labels and marks it.
Key Note: This machine is optimized with a photoelectric sensor detection logic for regular cylindrical, square, and other standard-shaped objects. If the jar body has dents, bulges, or irregular structures, the sensor will fail to stably identify the jar\'s position, resulting in label misalignment. Please ensure the jar body has a continuous, flat surface with no obvious unevenness or deformation.
Parameter: 110V/60HzPower400W Material: The surface is stainless steel Conveyor width: 7.87in(20cm)Conveyor belt length:46.85IN(119CM)Label inner diameter：2.9in(7.4cm)Label outer diameter:9.8in(25cm)Label out:Right offer
Output speed:
25-50PCS/min (Depending on the bottle size and label length)
Diameter of applicable articles:1.57-6.3in(4-16cm)Applicable product height：≤7.87in(≤20cm) Label height：1.57-5.9in(4-15cm)Label ±0.039in（1mm) Package:Export wooden case
1. Label volume
2. Marking sensor
3. Label the whole lifting handwheel
4. Smooth the brush
5. Conveyor belt
6. Bottle sensor controller
7. Conveying motor
8. Conveyor belt governor
9. Emergency stop
10. Power display
11. Start
12. Control the screen
13. Bottle sensor
14. Guardrail bracket adjustment knob
15. Receiving roller
16. Head adjustable hand wheel
17. Clamp the label hand wheel (correctly installed after the label finally need to tighten this knob)
Feature:
Multi-rod spiral positioning prevents deviation and makes the sheet more accurate.
Add a smoothing brush to help the label fit the item better.
Label adjusting handle
Adjust the two handles clockwise to make the whole label move forward and upward.
The label object is sensitive to inspection, and the labeling efficiency is greatly improved.
Photo-electric detection label, and the label will be released immediately when the bottle is detected to pass.
This machine is equipped with a fiber optic amplifier, which can be adjusted by adjusting the fiber optic amplifier when the photosensitive eye cannot sense the product well.
This machine is equipped with a touch screen display, which allows customers to set relevant data according to their needs, making it more convenient and efficient.
This machine is equipped with an emergency stop button, which can stop the operation of the machine with one click in case of any emergency, making it safer and more reliable.
The machine is equipped with guardrail adjusting knob, customers can adjust the height of the guardrail according to the size of the labeled items.
The machine is equipped with a wider conveyor belt to use a wider range of products.
Product safety precautions:
To ensure safe production, please read the following precautions carefully:
1. Use the power supply that meets the requirements of the machine.
2. After turning off the power switch, there is still voltage in some circuits in the electrical control of the machine. When servicing the control circuit, be sure to unplug the power cord.
3. Do not touch the rollers with your hands during machine operation, and pay attention to personal safety.
4. When the machine has problems, press the emergency stop button directly to suspend all work.
5.Do not touch the photoelectric induction eye with your hands during machine operation to prevent the machine from missensing and mislabeling.
Advantages:
1. The machine is efficient and convenient to use;
2. The machine automatically labels, saving manpower and material resources;
3. This machine has wide applicability and stable performance;
4. This machine is equipped with intelligent touch control screen, which is more convenient to set data parameters;
5. This machine can be used with capping machine and bottle sorting machine.
6.The components of each adjustment position are precisely matched, and the height, width and width of the components can be easily adjusted without the use of professional tools. The machine operation is simple and simple.
Note:
Machines with belts of the above two colours are shipped randomly.
Item include:
LT-160 automatic desktop conveyor table plane labeling machine(160249)
