The next improved version of Laerdal Compact Suction Unit is here. Laerdal’s newest suction unit combines rugged design with lightweight portability, an essential tool for every first responder.
LCSU4 comes in two alternative canister versions; one configured with an 800ml canister, and one with a 300ml canister. Each version can easily be converted to the other by ordering additional parts.
The 800ml version includes:
- Semi-rigid carry case w/shoulder strap
- 800 ml reservoir canister
- 6 ft of patient tubing
- NiMH rechargeable battery
- AC/DC adapter/charger with power cord
- Vacuum tube
- Comprehensive owner's manual in 18 languages
- Two-year warranty (excludes canisters, tubing, battery)
- Battery warrantied for 90 days
Features
- “Clean” cabinet design
- Small lightweight 300ml canister version
- 1.5 kg (3.38 lbs)
- “Click-in-place” 300ml canister
- Disposable canister systems
- 800ml canister - when extra volume is needed
- Easy to convert between 300ml and 800ml canister versions
- Internal integrated filter systems for all canisters
- High-efficiency filter kit
- Big vacuum regulator dial, with “clicking sound”
- LED display for use day or night
- Children vacuum range area on the control panel
- Arrows pointing the vacuum directions
- Wire Stand for stability
- High-density bags
Performance
- Air Flow at Vacuum Inlet (all configurations): 27 LPM (free flow) typical
- Vacuum - Max.: 550+ mmHg (73.3 kPA)
- Vacuum - Range: 50 - 550+ mmHg (6.7 - 73.3 kPa)
Power options
- Rechargeable Battery, NiMH 12 volt 1.6 Ah.
- Battery Runtime: Approximately 45 minutes of continuous operation at zero vacuum level (free flow), fully charged.
- Battery Charge time: 5 hours to reach full capacity
- AC/DC Adapter
- External Battery Charger
- 12V DC Power-cord for connection to vehicle power ports
Dimensions
- 300ml canister version: 18.5 cm x 26.2 cm x 8.12 cm (7.3" x 10.3" x 3.2")
- 800ml canister version: 23.6 cm x 19 cm x 23.6 cm (9.3" x 7.5" x 9.3")
Weight
- 300ml canister version: 1.53 kg (3.375 lbs)
- 800ml canister version: 1.97 kg (4.35 lbs)
Noise Level: <70dB
Alternate Part Number(s): LCSU2, LCSU3, LCSU4

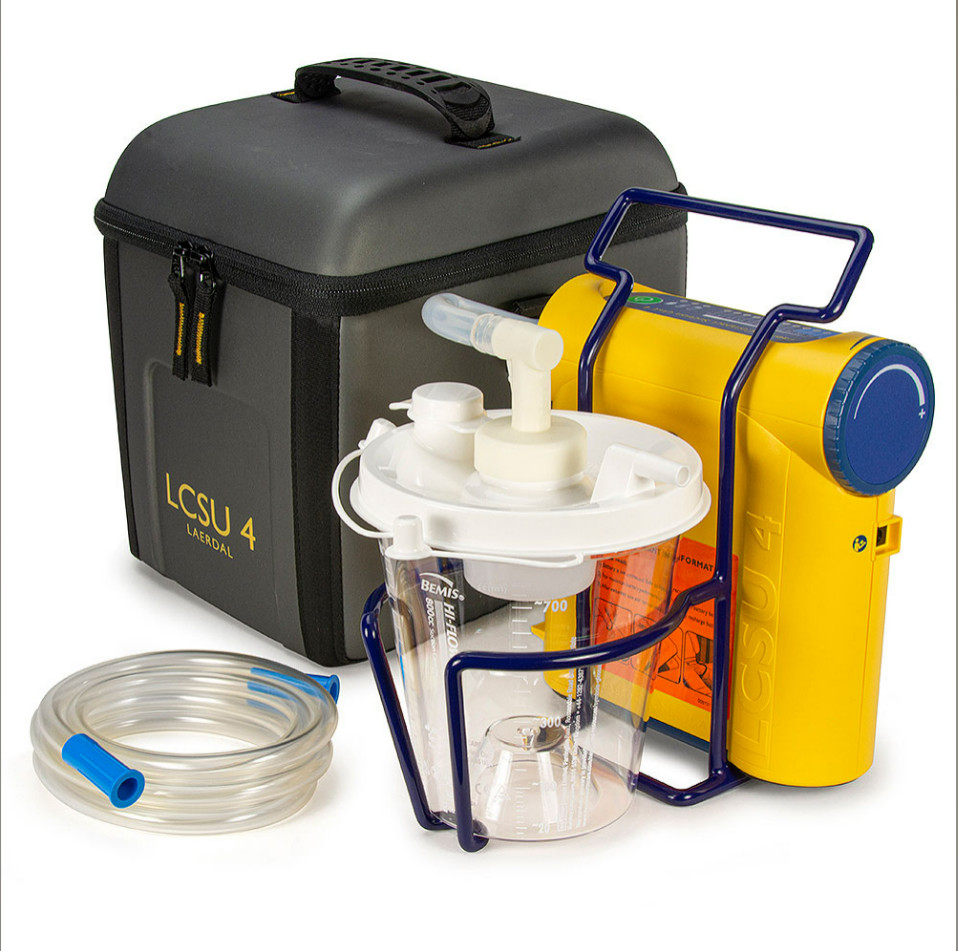

The Laerdal Compact Suction Unit (LCSU) 4 makes suctioning in the most difficult situations, easier. The LCSU 4 offers two canister sizes, the smaller 300 ml canister and the larger 800 ml canister. This compact suction unit has a battery life of up to 45 minutes continuous use on free flow suction, allowing healthcare providers to tackle the toughest challenges.
INCLUDED:
- Laerdal Compact Suction Unit (LCSU) 4 (1)
- 800 ml Disposable Canister (1)
- Vacuum Tube (1)
- Patient Tubing (1)
- Wire Stand (1)
- Carry Bag (1)
- AC/DC Adapter Charger (1)
- 12V DC NiMH Battery (1)
- User Guide (1)
- Compact design
- Light weight (1.5 kg/3 lbs 5 oz)
- Compact canister design negates the need for vacuum tubing
- Full range of consumables and accessories
Height: 25.2 cm / 9.9 in
Width: 25.8 cm / 10.1 in
Length: 28.2 cm / 11.1 in
Weight: 3.7 kg / 8.15 lbs
