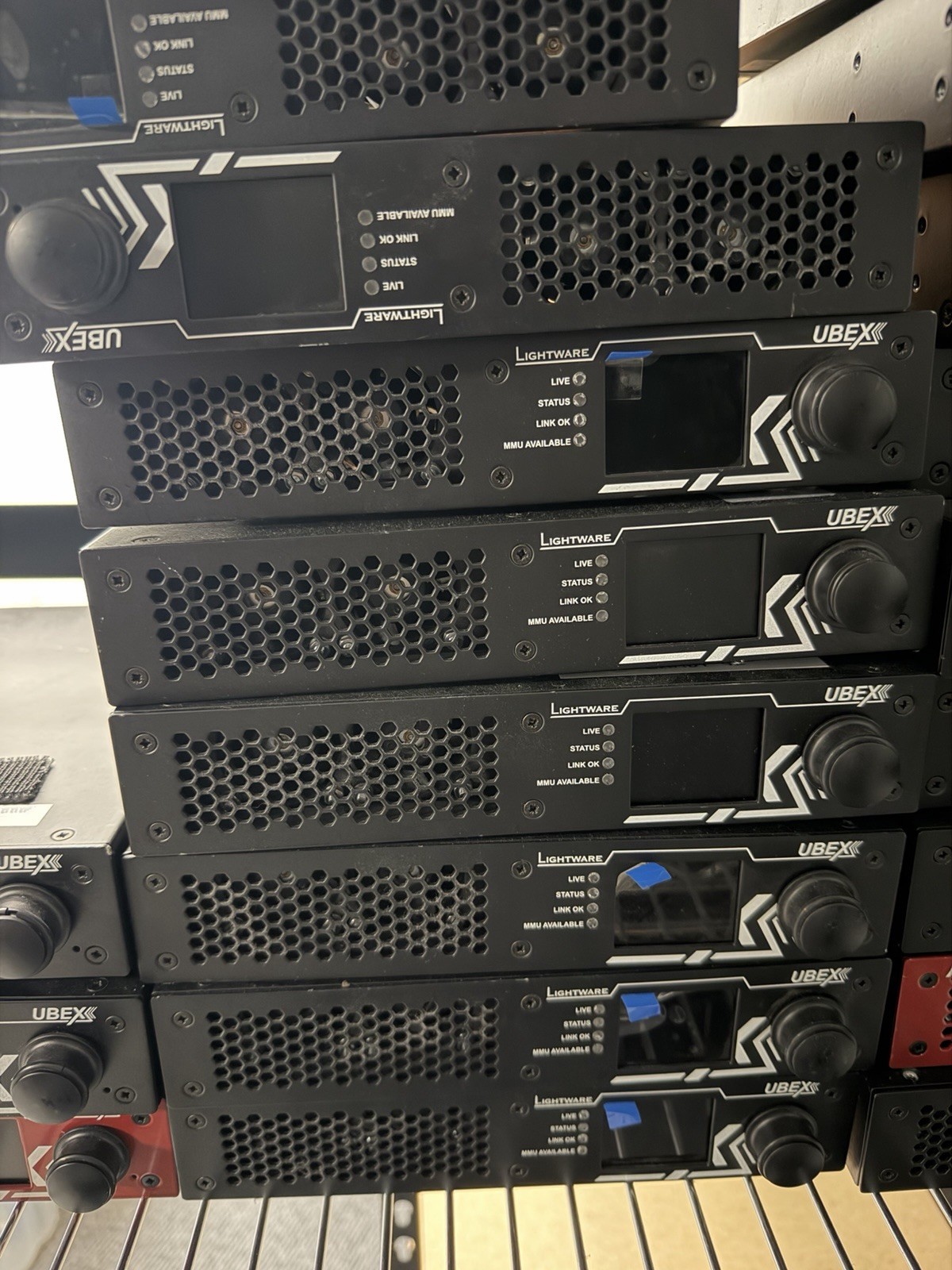

LIGHTWARE UBEX-Pro20-HDMI-F100 - 10G OPTICAL AV-OVER-IP VIDEO SYSTEM
SPECIFICATIONS (per Lightware published Optical scaling extender, 4K UHD @ 60Hz 4:4:4 UNCOMPRESSED, latency- free multistreaming- Video-over-IP on a 10G Ethernet network- Up to 18 Gbps data rate (600 MHz pixel clock)- Max resolution 4096x2160 @ 60Hz / 4:4:4- Scaling to match the target display; multiviewer operation mode- Dolby TrueHD, Dolby ATMOS and DTS-HD Master Audio support- Video Wall Wizard with bezel adjustment, cropping and zoning- Field-exchangeable 10 Gbps SFP+ optical modules- Reach 400 m to 80 km depending on modules fitted- Power supply carries Medical (60601) and ITE (60950) classifications- Certified to Tempest SDIP27 Level B- Class 1 Laser Product
REAR PANEL (verified on this 2 x HDMI IN, 2 x HDMI OUT- 2 x Gigabit Ethernet- 2 x SFP+ LINK- IEC C14 inlet, 100-240 VAC, 50/60 Hz, 0.4-0.2 A
Each UBEX unit is a transceiver, configurable in software as either an input or an output endpoint in a virtual matrix.
HISTORY--------This unit was part of a permanent, professionally installed AV system in a commercial entertainment venue. To the best of our knowledge, it was in active service and operating normally up until the venue was decommissioned. It was rack-mounted in aclimate-controlled equipment room and was not removed due to any known fault.
We did not install, maintain, or operate this system, and we have not powered this unit on ourselves. The above reflects what we understand about the installation. It is not a test result and not a warranty of function.
CONDITION - PLEASE READ AS-IS and UNTESTED. We do not have the technical setup to power on, configure, or verify this device.
What we CAN confirm:- Model, serial and MAC verified from the manufacturer label- All rear panel ports physically present and undamaged- Removed from a professional installation, not salvage- Chassis physically intact, no visible damage
What we CANNOT confirm:- Whether it powers on- Whether it passes video on any input or output- Firmware version, operating hours, or fault history- Interoperability with your specific MMU, switch, or firmware revision
INCLUDED: 1 x UBEX-Pro20-HDMI-F100 chassisNOT INCLUDED: no SFP+ modules, no MMU, no fiber cables, no HDMI cables, no rack tray, no documentation
Questions welcome before you buy. We would rather answer them up front than have anyone disappointed. We also have more than one unit available, so please message if you\'re interested in multiple.
