Vehicle Information:
Specification
Condition: new
Engine Type: Gy6 Single Cylinder 4-Stroke
Engine Oil Type: Sf15w-40 Not Come with Oil.
Carburetor Model: pd24j
Carburetor Type: horizontal Vacuum Carburetor
Spark Plug Model: a7tc
Ignition Type: cfw
Cooling: Air Cooled
Displacement: 150cc
Max Power(Kw/R/Min): 6kw/7500r/Min
Rated Power(Kw/R/Min): 5.2kw/7000r/Min
Max Torque(N.m/R/Min):7.6n.m/6500r/Min
Min. Stable Idle Speed1600±150r/Min
Piston Diameter:57.4mm
Piston Stroke: 57.8mm
Bore & Stroke2.26" X 2.28" (57.4mm X 57.8mm)
Compression Ratio: 9.2:1
Fuel No.: >=87#
Lubrication Capacity: 0.26 Gallon (1200ml)
Clutch: shoe-type Automatic Centrifugal Dry Clutch
Cylinder Working Volume: 0.03 Gallon (149.6ml)
Transmission:cvt
Speed: 8 Poles
Ignition System: Cdi
Start Method: Electric/Kick
Installation Instructions:not Included
Kick Start Lever: Included
Features
High-flow Oil Pump: Reduces the Wear of Friction Pairs and Prolongs the Engine Service Life.
Aluminum Cylinder Head & Body: Improves the Heat Dissipation Capability, Cuts the Weight and Increases the Torque of the Engine.
Crank Shaft: the Engine Is Low Speed with High Torque and Has Large Diameter Bearings for Crankshaft Connecting Rod, Increasing the Reliability of the Bearings.
Lubricating Oil Strainer: Helps Removing Solid Contamination from Lubricating Oil, Largely Reducing the Wear of Friction Pairs and Prolonging the Engine Service Life.
Cvt: Cvt Consist Mainly of 2 Transmission Pulleys and 2 Transmission Belts. It’s Compact, Simple Design Offers Seamless Shifting Between an Unlimited Amount of Varying Gear Ratios, Allowing a Smooth Rate of Acceleration.
Forced Air-cooled Engine: There Are Metal Fins Covering the Outside of the Cylinders and the Heat Generated by the Engine Is Released Directly into the Air When the Cooling Fan Blows Air over Fins. It Has the Advantages of Simple Structure, Light Weight, Wide Adaptability to Climate Change, Rapid Start up and No Need of Radiator.
Fit for
Compatible with 150cc Gy6 11" Long Box Engine Size Scooters and Vehicles.( Gy6 125cc and 150cc Motors Come in Different Sizes. the Difference Is in the Length of the Rear Swing Arm.)
110cc-150cc Atvs and Go Karts with Gy6 Engines Are Compatible with This Item. It Also Fits for Most China Made 150cc Vehicles.

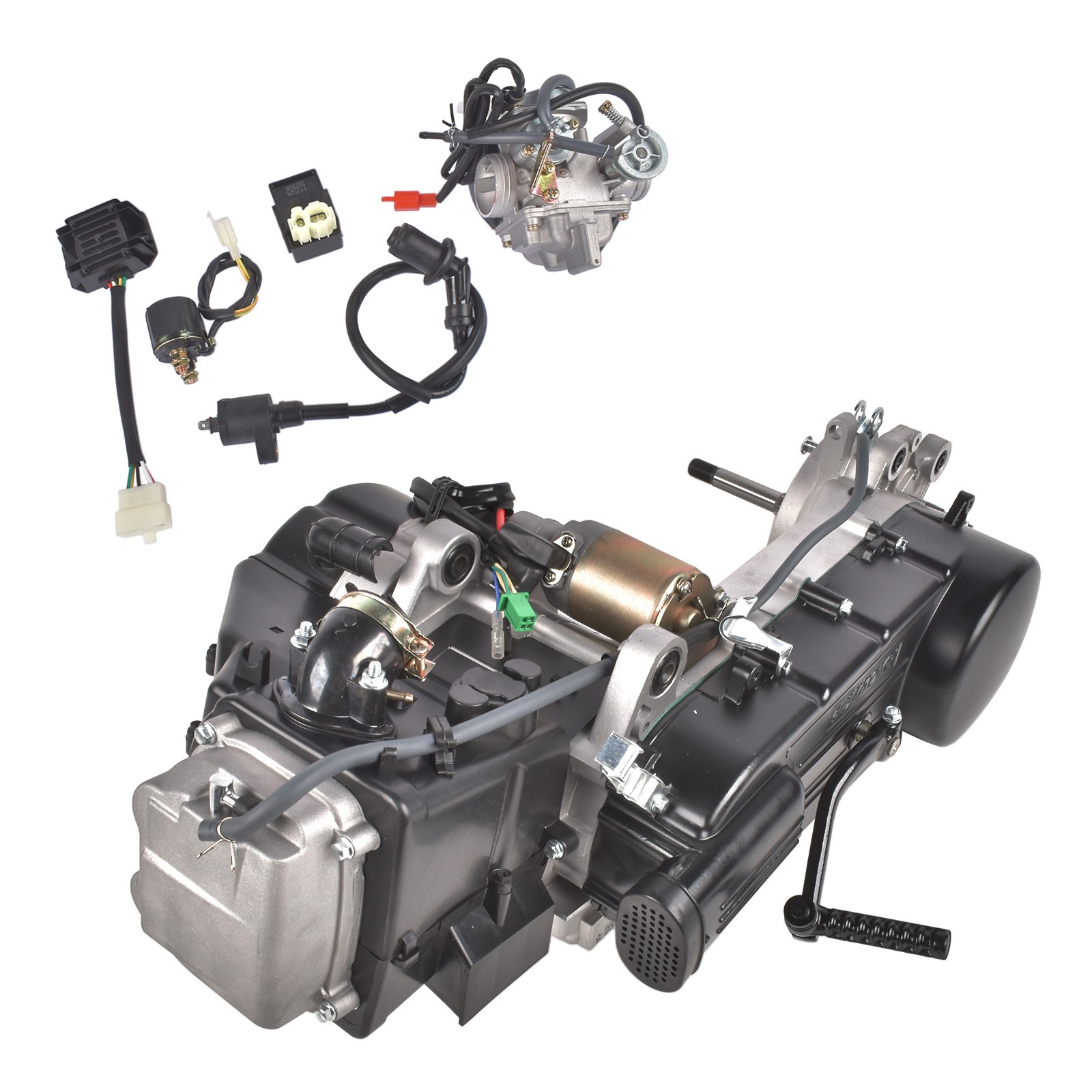

Package Includes
1x Complete Engine
(Carburetor, Cdi, Starter Solenoid, Coil,Kick Start Lever )
(As Pics Shown)
Professional installation is recommended.
Please check the part number and illustrations carefully to ensure that it fits your model. If you are not sure, please contact us and we will respond as soon as possible.
★Professional Seller★ ☑Quality Assurance☑ ✈︎Fast Shipping✈︎ ☺Efficient Service☺
- Shipping Policy
- Payment Method
- Returns Policy
Shipping Policy
-Please leave us your full name, your telephone number and detailed address when ordering.
-We ship to your or Paypal address. Please make sure your and Paypal address is correct before you pay the order.
-We try our best to pack the products as good and safe as possible ,so they always arrive in a good condition.
-The items will be the shipped the same working day for the order before 10:00 a.m.
-The items will be the shipped the other working day for the order after 10:00 a.m.
Payment Method
-We accept PayPal only.
-All major credit cards are accepted through secure payment processor PayPal.
-Payment must be received within 4 business days of sale closing.
Returns Policy
-We offer sophisticated products at a high technological level, with the highest possible quality and the most favorable price.
-With these parts you can replace your defective parts simply plug and play.
-Our warranty is valid for max. 24 months without mileage limitation.
-Please compare carefully with Photos or OE number before purchasing the part.
-Once a problem occurs with the purchased product, please do not hesitate to let us know with messages,we will offer you refund or replacement.
