Product Details
Buy Authentic & Guaranteed LOTOS from Ubargain09!

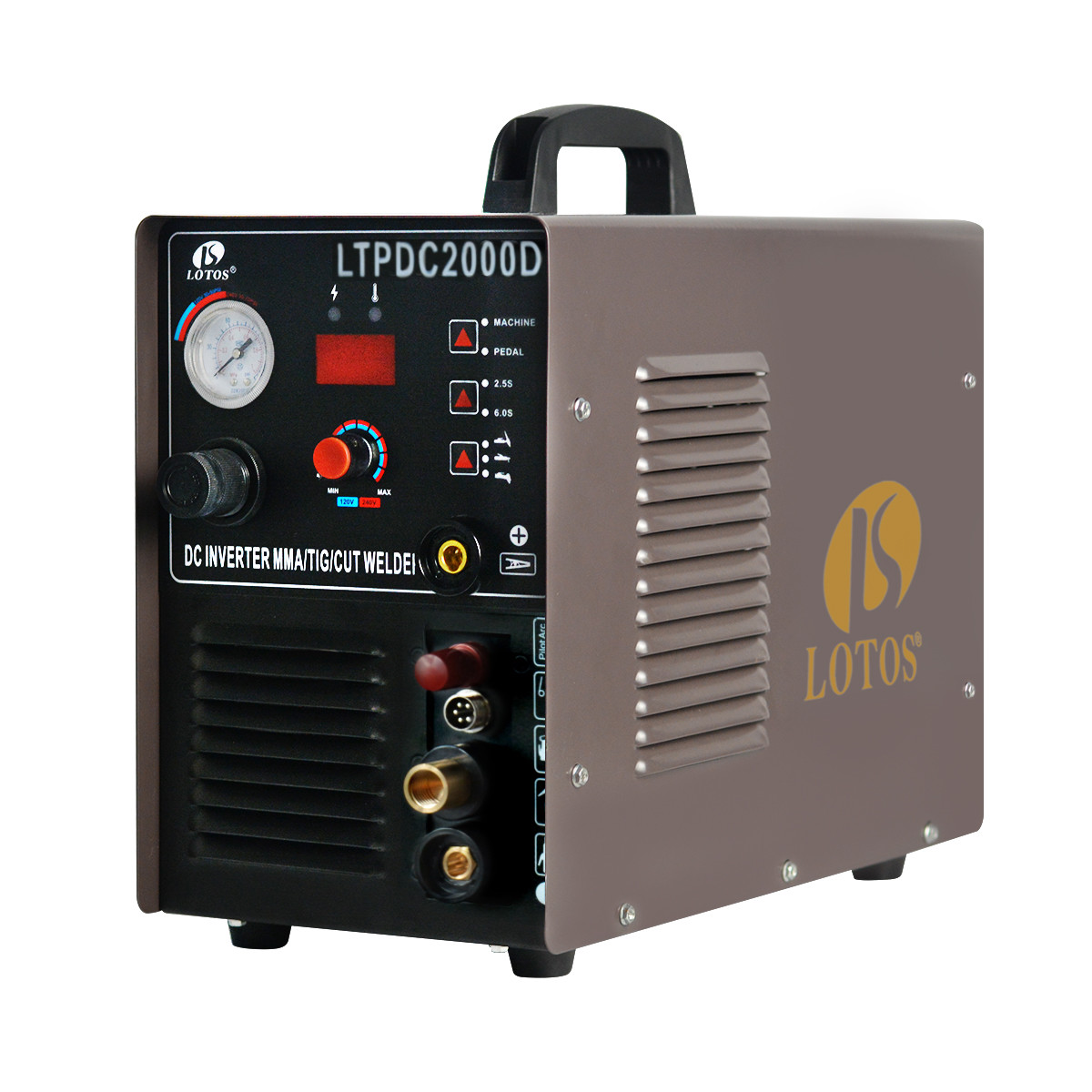

The Lotos Technology LTPDC2000D is a multi-functional welder that allows the user to perform a variety of functions such as:
DC TIG/Stick welding and plasma cutting all from one portable machine.
LTPDC2000D combines three functions into one with a 200 Amp DC TIG welder,
a 200 Amp Stick welder and a50 Amp pilot arc plasma cutter with the flip of a switch.It is able to cut various types of metal up to 1/2" with the 50 Amp pilot arc plasma cutting function.
It is designed especially for businesses and DIY (do-it-yourself) users,
while fully accommodating the demands of professional operators. An option foot pedal is available for purchase.
★ BUY WITH CONFIDENCE: We offer 30 days refund and a 3-YEARS Limited Warranty: include 1 Year NEW Replacement Warranty.
★ US BASED CUSTOMER CARE & SUPPORT TEAM: please feel free to contact us by phone or email, we always stand Back on Our Products. Please submit the registration form on our website.
Features:
- 50Amp IGBT Inverter pilot arc plasma cutter.
- 200Amp DC TIG welder and DC stick welder (High Frequency Start).
- Automatic dual Voltage/ dual frequency (100/220Volt 50/60Hz), you would need an pig tail adapter, PT01 to use 110V (Sold Separately)
- Suitable for cutting and welding Stainless Steel, Mild Steel, Aluminum (cut only) and other metal materials.
- Pre Installed Air hose and air hose connections.
Package Includes:
- Plasma cutting torch CP135 (13ft long, 3 prong connection);
- TIG welding torch TT135 (13ft long);
- Stick welding electrode holder (6ft long);
- Ground cable & clamp (6ft long);
- Manual Book.
To run 110V requires the Pig Tail(model PT01), which does not come with the packages. It is sold separately.
PRODUCT LITERATURE
LTPDC2000D Manual
GENERAL SPECIFICATION
Input Voltages
110-220V, 1-PH, 50/60Hz
Power Efficiency
85%
Dimensions with Handle
15.5” (394mm) L
8” (203mm) W
12” (305mm) H
Weight
43lbs (19.5kg)
Input Power Cable Length
6’ (1.8m)
PLASMA CUTTING SPECIFICATION
Rated Input Power Requirement
110-220V, 1-PH, 27A±15%, 50/60Hz
Output Current
10-50A @110/220V
Duty cycle @ 40°C (104°F)
60% @50A
100% @35A
Gas Supply
Clean, dry, oil-free air
Recommended Gas Inlet Flow Rate/Pressure
3.6scfm @ 65psi
Cutting Materials
Mild steel, stainless steel, aluminum, etc.
Maximum Rated Cutting Thickness*
1/2inch (12.7mm)
DC TIG WELDING
SPECIFICATION
Rated input power requirement
120-220V, 1-PH, 17A±15%, 50/60Hz
Output current
15-200A @110/220V
Gas Supply
Clean, dry, oil-free argon gas
Recommended Gas Inlet Flow Rate
2-5 L/M
Duty cycle @ 40°C (104°F)
60% @200 A
100% @150 A
Welding Material
Steel, Stainless, Moly, Ferrous
DC STICK WELDING
SPECIFICATION
Rated input power requirement
120-220V, 1-PH, 23A±15%, 50/60Hz
Output current
15-200A @110/220V
Duty cycle @ 40°C (104°F)
60% @200A
100% @95A
Welding Material
Steel, Stainless, Moly, Ferrous
WARRANTY
30 days refund and a 3-YEARS Limited Warranty:
include 1 Year NEW Replacement Warranty
(Contiguous US only)
*Production cut thickness are the results of Lotos’ laboratory testing. Production speeds are approximately 80% of maximum.
* For optimum cut quality, cutting speeds may vary based on different welding applications.
* For any Limited Warranty claim, a valid Proof of Purchase from our Authorized Dealers and a Valid US Shipping Address is required. Warranty valid in the US only and for orders from our authorized dealers. We do not have any authorized deals outside the US. We cannot cover warranty outside the US(e.g. Canada, Mexico)
