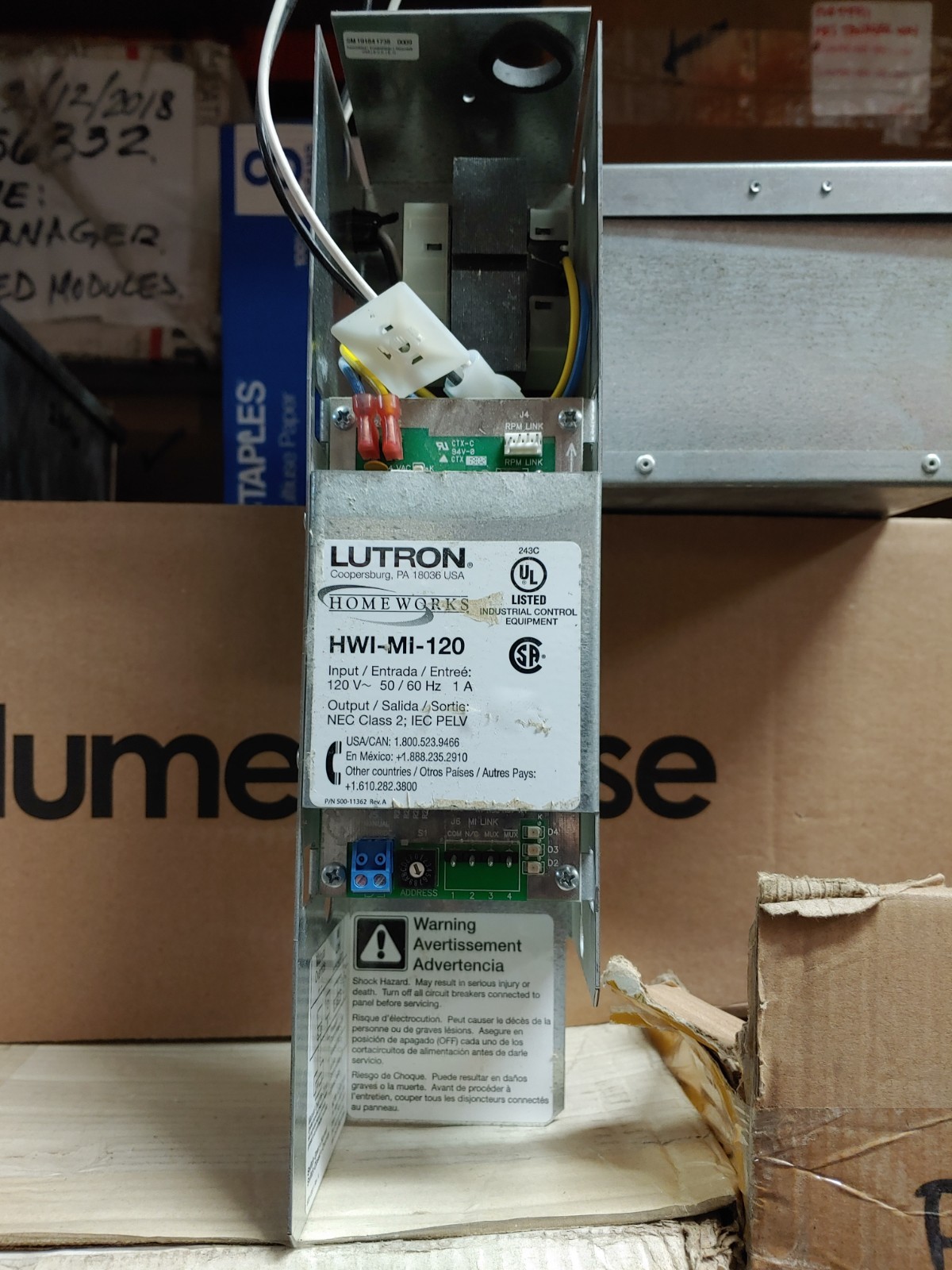

For sale is one genuine Lutron HWI-MI-120 stand-alone HomeWorks Module Interface Assembly.
Specifications
Brand: Lutron
MPN: HWI-MI-120
UPC: 027557367028
Product Type: Module Interface Assembly
System: HomeWorks Interactive / Illumination
Supported Upgrade Application: HomeWorks QS Panel Link, subject to compatibility
Input: 120V AC
Frequency: 50/60Hz
Rated Input: 1A
Typical Power Consumption: 2W
RPM Capacity: Up to 8 Remote Power Modules per MI
MI Capacity: Up to 16 interfaces per MI/Panel Link
Maximum Link Zones: 256
Communication: Wired MI / Panel Link
Topology: Daisy Chain
Maximum Communication Run: 1,000 ft
Addressing: Rotary Switch
Manual Override: External Contact Closure
Override Contact Rating: 50mA at 30VDC per MI
Diagnostic LEDs: Power, Module Communication, Processor Communication, Heartbeat
Control Wiring: NEC Class 2.
Compatible RPM families include Lutron HW-RPM-4U, HW-RPM-4A, HW-RPM-4FSQ, HW-RPM-4M and HW-RPM-4R. Compatible remote-power-panel architecture includes HWI-PNL-5, HWI-PNL-8, HWBP-2S and HWBP-8D.
Compatibility Notice: Older HWI-MI/RPM hardware manufactured before 2003 can have compatibility limitations with HomeWorks QS. Buyers upgrading a legacy system should verify date code, processor, RPM and Panel Link compatibility before purchase.
Included: Only components shown in the listing photographs.
Not Included Unless Pictured: HomeWorks processor, Remote Power Modules, power panel, RPM harness, LT-1 terminator or additional lighting-control hardware.
