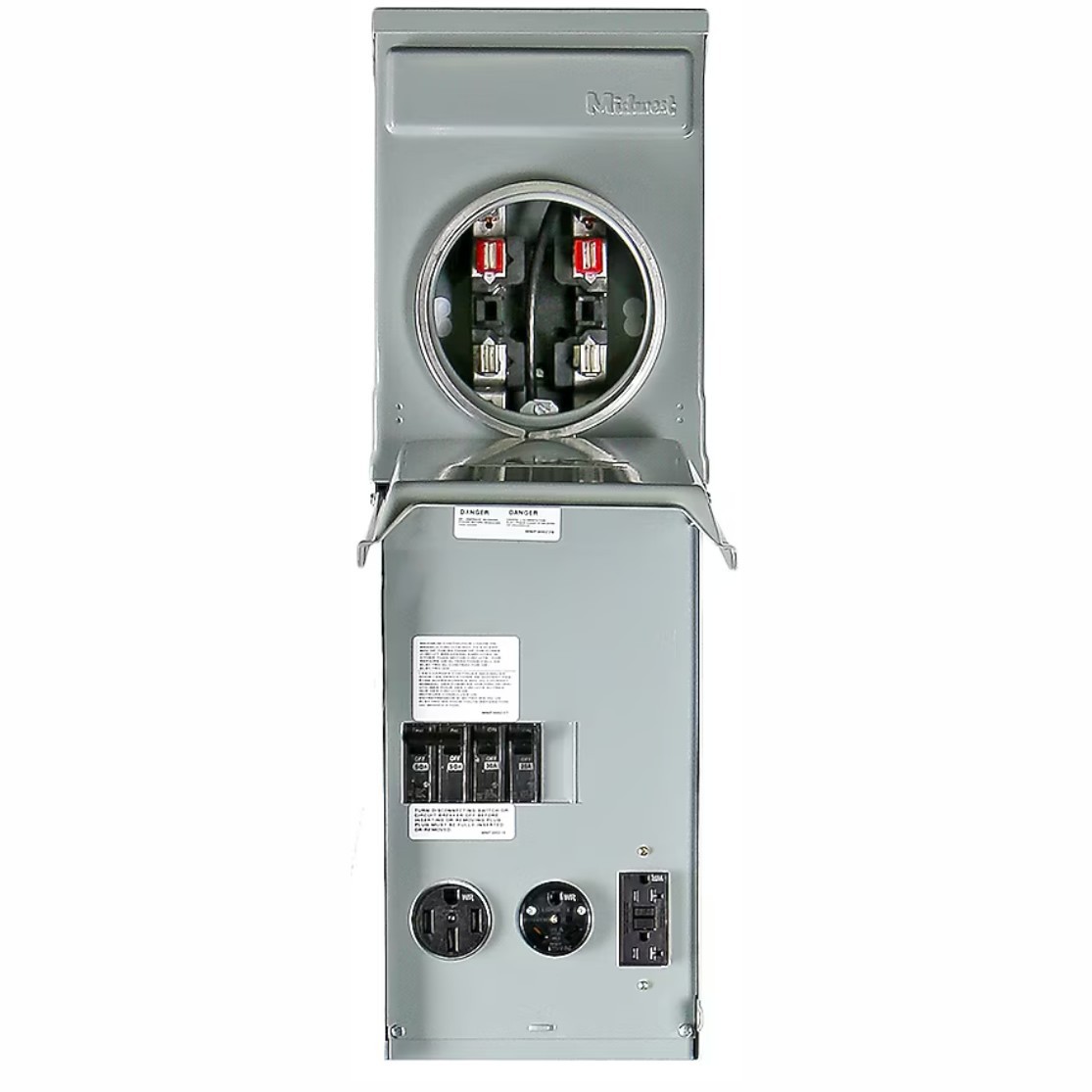

Have 4 left over from a project. Ideal for on-premises-parking of your RV. Constructed of G90 galvanized steel, this metered 50/30/20 Midwest post-mount surface box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed (meter not included, but available in my other listing).Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC55N1T load center
- Suitable for service equipment
- GFCI duplex receptacle options
Catalog NumberM075C010Product Description100A Surface Mount 50/30/20 GFCI RV Power PanelCategoryMetered Power Outlet PanelsSub-CategoryOutdoor Surface Mount Power Outlet PanelTypeMetered RingCurrent Rating100 AmpereVoltage Rating120/240 VCircuit Configuration1-PhaseMaterialG90 Galvanized SteelFinishZinc CoatedEnclosure RatingNEMA 3RApprovalUL, CULMounting TypeSurface MountCabinet Dimensions9-3/4 in. W x 5-3/16 in. D x 30 in. HWire Size6 to 1/0 AWG Stranded (Copper/Aluminum Line)
14 to 10 AWG Solid / Stranded (Copper Load)
12 to 2 AWG Stranded (Copper/Aluminum Ground)Left ReceptacleBR54UCenter ReceptacleBR32URight Receptacle5-20R2GFCIFirst Position BreakerCB250Second Position BreakerCB130Third Position BreakerCB120Loop LugNoStandardsApplicable NEMA & NEC StandardsConstruction Features16-Gauge Galvanized Zinc-Coated Steel
Corrosion & Fade Resistant Construction
Weather Resistant NEMA 3R EnclosureApplicationsRV Parks & Campgrounds
Outdoor Recreational Power DistributionCross Reference22-RT-123
GE1LM532SS
MH75SM-3
