HDMI Matrix Switch Series16x16 HDMI Matrix Switch8x16 Extender HDMI Matrix8x8 HDMI Matrix Switch4x4 HDMI Matrix Switch8x8 Seamless HDMI Matrix4x4 Seamless HDMI Port:HDMI*16HDMI*8HDMI*8 HDMI*4HDMI*8HDMI*4Output Port:HDMI*16HDMI*16HDMI*8 HDMI*4HDMI*8HDMI*4Chip:3.4G High-bandwidth Chip18Gbps3.4G high-bandwidth chip3.4G high-bandwidth Way:IR Remote Control, Button Switch, LAN Control, RS232,
Web ControlButton, IR Remote Control, RS232, LAN Port, WEB GUI, The-third-party, Android APP IR remote control, Button Switch, LAN control, RS232,
Web controlIR remote control, Button Switch, LAN control, RS232,
Web controlIR remote control, Button Switch, LAN control, RS232,
Web controlIR remote control, Button Switch, LAN control, RS232,

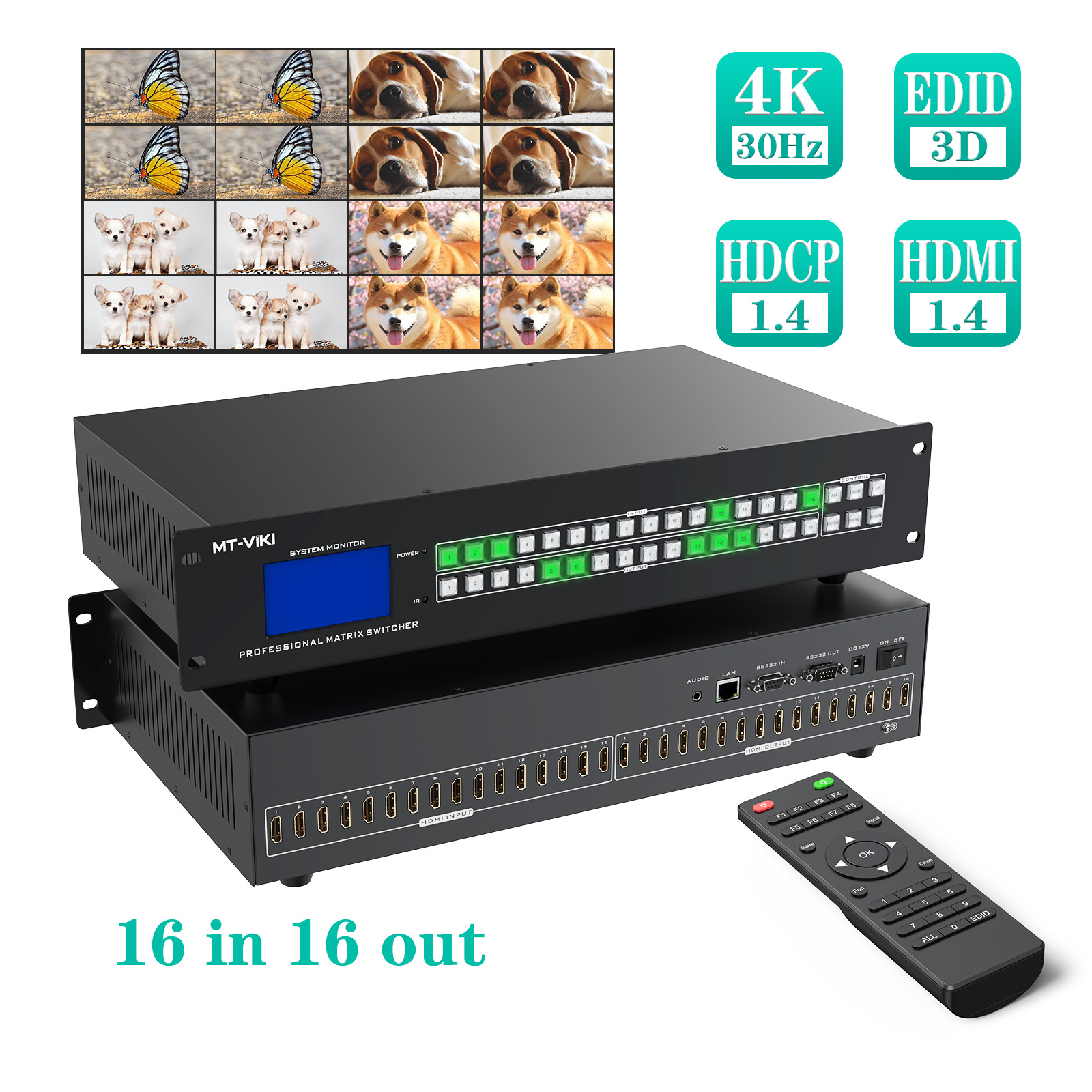

Web controlEquipment Height:2U2U1U1U1U1UMT-VIKI 16x16 4K@30Hz HDMI Matrix Switch, MT-HD1616L
This 16X16 HDMI Matrix routes up to 16 4K HDR HDMI sources to 16 4K HDR display devices. Allow all outputs to mirror the same signal or independently route unique input signals to each display for a fully customized HDMI routing matrix.
Technical ParametersInput interface:HDMI*16Video format:4K*2K@30HZOutput interface:HDMI*16+3.5MM*1Audio output:HDMI interface + left and right analog stereoHDMI compatible:HDMI 1.4Audio de- emuedding:OUT 16 way followHDCP compatible:HDCP 1.4Power supply:DC12V3AControl method:Visual buttons, infrared remote control, RS232 serial port, LAN,WEB and other control methodsPower consumption:≤30WControlling software:Professional control softwareElectrostatic protection:Human body model: +8kV (air discharge), +4kV (contact discharge)RS-232:Baud rate: 115200, Data bits: 8, Stop bits: 1, No parityHigh:2U
Feature:✅ 16 HDMI Inputs / 16 HDMI Outputs – Route any source to any display independently✅ 3.5mm Stereo Audio Extraction – Available on HDMI Output 16 only. Perfect for connecting external speakers or mixers while keeping video signals separate.✅ 6 Control Methods – Front panel buttons, IR remote (included), RS232, LAN, Web GUI, and free Android/iOS App✅ Power-off Memory – Automatically restores your last routing configuration after power loss✅ 2U Rack-Mountable – Comes with rack ears and screws, fits standard 19" racks
Typical Applications:🏠 Home Theater – Connect 16 sources (cable box, Apple TV, PS5, PC, Blu-ray) to 16 TVs/projectors throughout your home.
Each room can watch a different source independently.🏢 Conference Room – Share presentations from 16 laptops to 16 displays. Control via Web GUI from any device on the network.🏫 Education / Lecture Hall – Route lecture content, videos, and presentations to multiple screens simultaneously.
RS232 integration with existing control systems.🎬 Audio/Video Production – Extract audio from Output 16 to feed into a mixer or PA system while sending video to monitors.
Noted:
Only "HDMI Output 16" Support 3.5mm audio extraction.
Package:
HDMI Matrix switch 16X16 x 1
RS232 Cable x 1
IR Remote x 1
Rack ears & screws x 1
Power cable & adapter x 1
User Manual x 1
About Us： MT-VIKI, is a professional A.V transmission supplier and manufacturer from 2003, like HD switcher, splitters, KVM switch, matrix switcher, video wall controller, multi-viewer, hdmi transmitter and receiver, and other within 1 business day after payment
Free Economy Shipping to the 48 contiguous United States
No shipping to Hawaii, Alaska, Puerto Rico, APO/FPO, or international returns accepted
Seller pays for return shipping
Item must be returned within 30 days of receipt
Warranty & Support：
2-year manufacturer warranty
US-based customer support: Monday - Friday, 9am - 6pm CST
Response within 24 hours via Messages
Before You Leave response：
If you experience any issue with your purchase, please contact us first through Messages. We will resolve any problem quickly — whether it's a replacement, refund, or technical support. Your satisfaction is our priority.
You May Also Need – Perfect Match for Your SetupWireless HDMI Transmitter and Receiver3x3 HDMI Video Splicer16x1 Seamless HDMI Multiviewer12U Server CabinetModel Way:Plug and PlayPanel Button, Remote ControlPush Button,Ir Remote ControlXEquipment Height:XXXX
